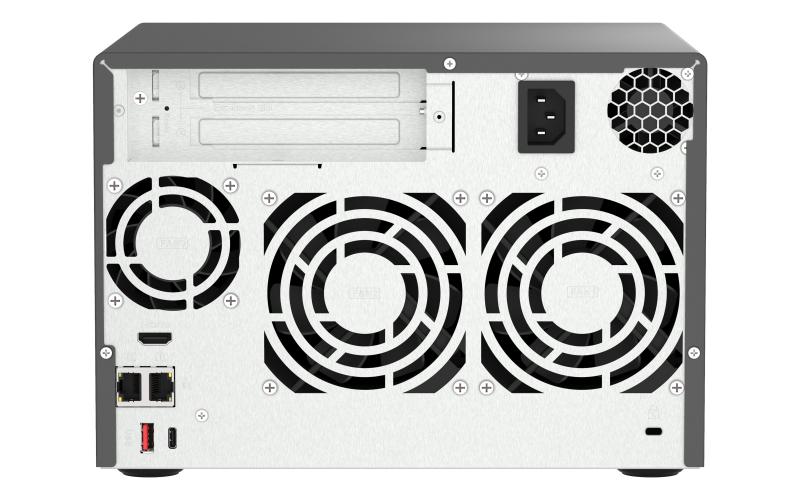

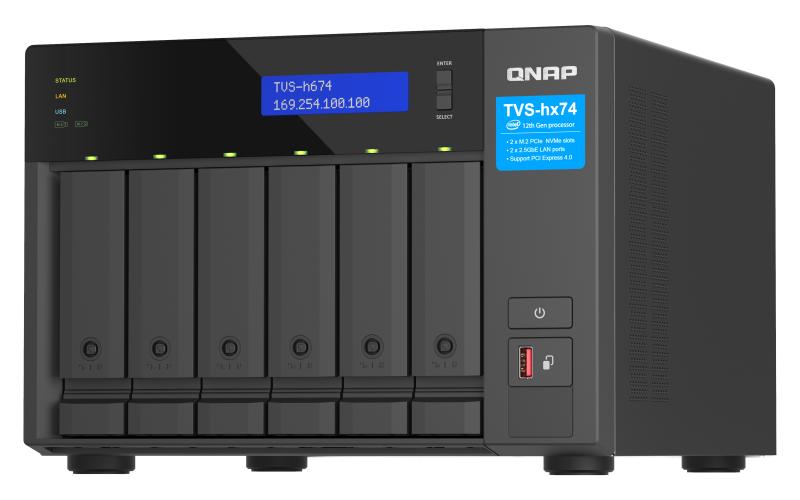

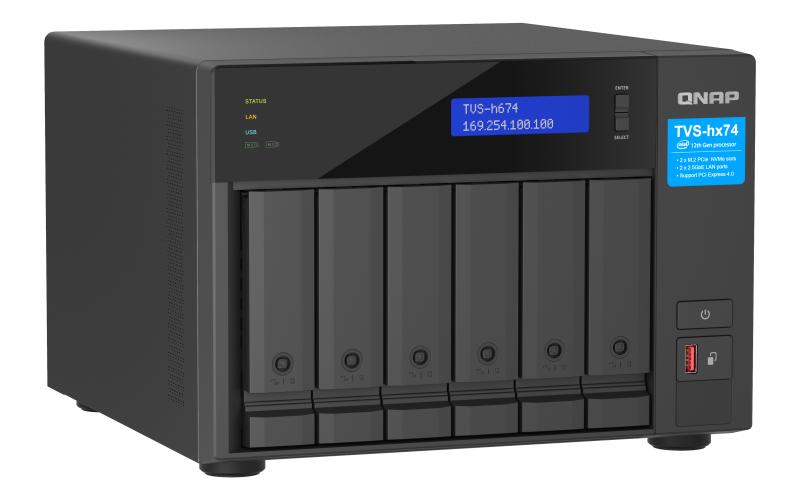

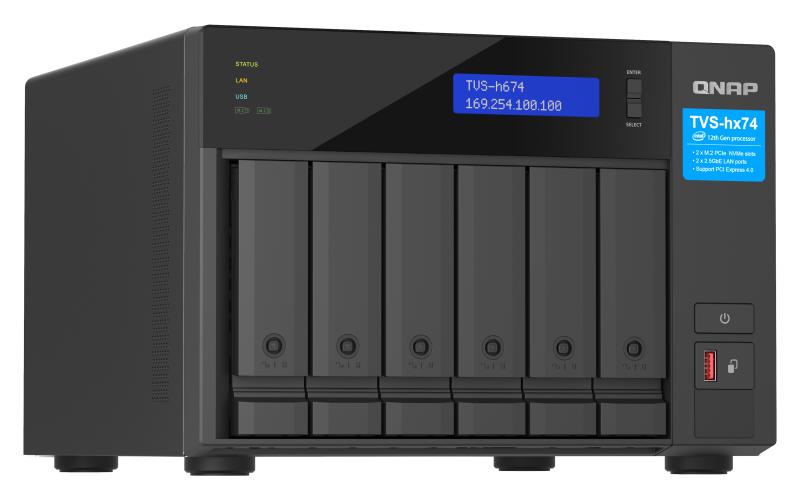

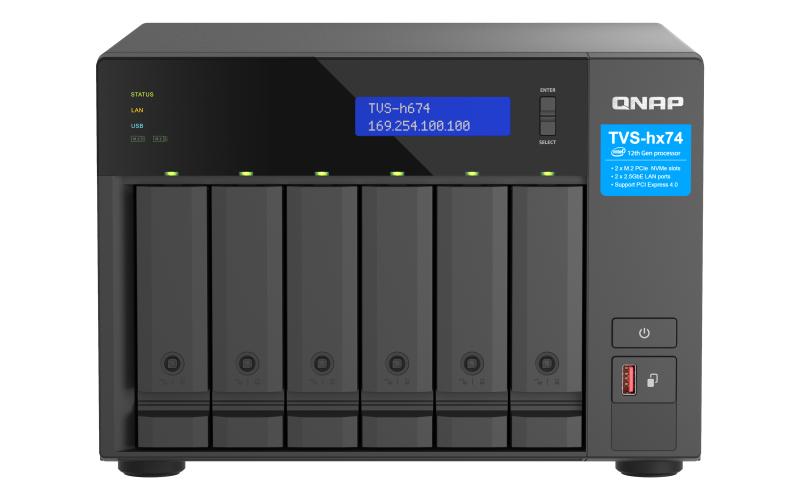

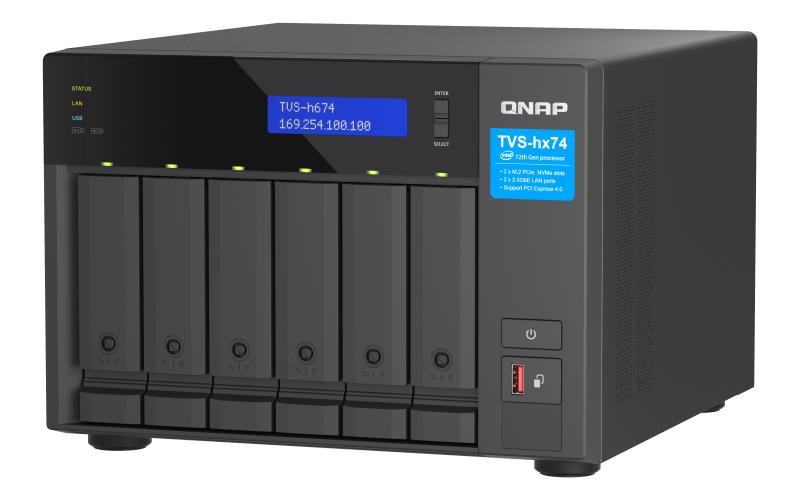

NAS QNAP h674T 6-Bay, CPU Intel® Core™ i3-12100 4-core 8-thread Processor, up to 4.3GHz, RAM 16GB (1x 16GB) DDR4 SODIMM (Max. 128GB), 6 x 2.5″/3.5″ SATA 6Gbps + 2 x M.2 2280 NVMe HDD (neincluse), LAN: 2 x 2.5GbE (2.5G/1G/100M/10M), Tower, Single PSU, 250W, garantie 3 ani
Storage-Format | NAS |
---|---|
Storage-Interface | RJ45+USB |
Storage-Type | HDD |
USB Port | Yes |
Supported-HDDs | 12 |
Operating relative humidity (H-H) | 5 – 95% |
Product colour | Black |
S.M.A.R.T. support | Yes |
RAID support | Yes |
Operating temperature (T-T) | 0 – 40 °C |
Hot-swap drive bays | Yes |
Jumbo frames support | Yes |
iSCSI support | Yes |
Wake-on-LAN ready | Yes |
Cooling type | Active |
Backup function | Yes |
Quick installation guide | Yes |
Cables included | AC, LAN (RJ-45) |
On/off switch | Yes |
Storage temperature (T-T) | -20 – 70 °C |
Internal memory | 16 GB |
Internal memory type | DDR4 |
Processor manufacturer | Intel |
Processor cache | 12 MB |
Memory form factor | SO-DIMM |
Ethernet LAN | Yes |
HDMI ports quantity | 1 |
Cable lock slot | Yes |
Bus type | DMI4 |
Intel VT-x with Extended Page Tables (EPT) | Yes |
CPU configuration (max) | 1 |
Embedded options available | No |
Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Processor family | Intel® Core™ i3 |
Execute Disable Bit | Yes |
Processor threads | 8 |
Processor cores | 4 |
Idle States | Yes |
Processor boost frequency | 4.3 GHz |
HDMI version | 1.4b |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
Cable lock slot type | Kensington |
Enhanced Intel SpeedStep Technology | Yes |
Intel 64 | Yes |
Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
Built-in display | Yes |
Memory slots | 2 |
On-board graphics card model | Intel UHD Graphics 730 |
Chassis type | Tower |
PCI Express x16 (Gen 4.x) slots | 1 |
Supported storage drive types | HDD & SSD |
Processor model | i3-12100 |
Ethernet LAN (RJ-45) ports | 2 |
AC input voltage | 100 – 240 V |
Display type | LCD |
Processor frequency | 3.3 GHz |
Number of fans | 3 fan(s) |
Number of storage drives supported | 6 |
Supported network protocols | IPv4, IPv6 |
Reset button | Yes |
DHCP server | Yes |
Web-based management | Yes |
Access Control List (ACL) | Yes |
Dynamic DNS (DDNS) | Yes |
Number of power supply units | 1 |
Fan diameter | 9.2 cm |
Height | 188 mm |
Built-in FTP server | Yes |
Storage drives installed | No |
Total installed storage capacity | 0 TB |
Number of storage drives installed | 0 |
Installed storage drive type | No |
Storage drive capacity | 0 GB |
RAID rebuild | Yes |
Disk roaming | Yes |
Drive bay locking | Yes |
Device class | Small & Medium Business |
Buzzer | Yes |
Multilingual support | Yes |
Snapshot | Yes |
System log | Yes |
Hot spare | Yes |
USB copy function | Yes |
Power cables quantity | 1 |
Drive tray key included | Yes |
Storage drive sizes supported | 2.5,3.5,M.2 |
Number of M.2 (M & B) slots | 2 |
RAID levels | 0, 1, 5, 6, 10, 50, JBOD |
Management protocols | SNMP V2/V3 |
Share folder access right management | Yes |
Disk scan | Yes |
Third-party support | Yes |
Power supply location | Built-in |
Power supply unit (PSU) capacity | 250 W |
Maximum RAM supported | 64 GB |
Flash memory | 5000 MB |
Fan diameter 2 | 6 cm |
Backup features | Cloud, USB drive, iSCSI LUN |
Depth | 280.8 mm |
Supported file systems | FAT32, HFS+, NTFS, ZFS, exFAT, ext3, ext4 |
Share folder | Thick, Thin |
Supported storage drive interfaces | M.2, Serial ATA II, Serial ATA III |
Fibre Channel | Yes |
Security algorithms | 256-bit AES, FIPS 140-2, HTTPS, SSH, TLS |
Operating system installed | QuTS hero |
Operating system version | h5.0.0 |
LED indicators | M.2, HDD, LAN, Status, USB |
Number of users | 16000 user(s) |
Power consumption (typical) | 79.363 W |
Power consumption (sleep) | 39.911 W |
Width | 264.3 mm |
L2 cache | 5 MB |
Concurrent connections | 2500 |
Linux operating systems supported | CentOS 7.0, Ubuntu 14.04, openSUSE 12.1, openSUSE 12.2 |
Other operating systems supported | IBM AIX 7.1, Solaris 10 |
Weight | 6.55 kg |
Package weight | 8.07 kg |
Number of screws | 42 |
Format | Tower |
Frecventa Procesor: | 3.3 GHz |
Media storage inclus: | Nu |
Media storage suportat: | 6 |
Tip Media storage : | HDD si SSD |
Memorie RAM instalata: | 16GB |
Tip Memorie: | DDR4 |
Numar porturi RJ-45: | 2 |
HDMI | Da |
Producator | QNAP |
Garantie | 36 |
