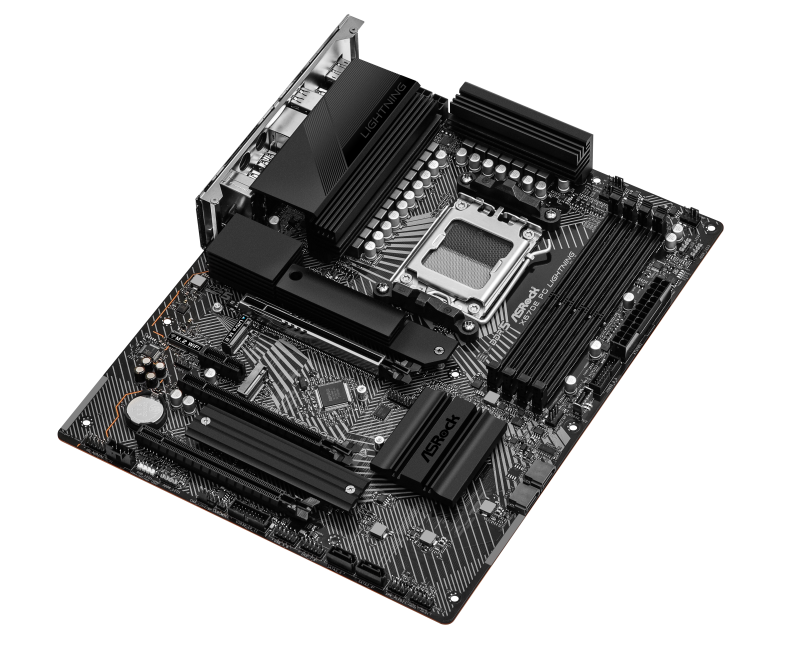

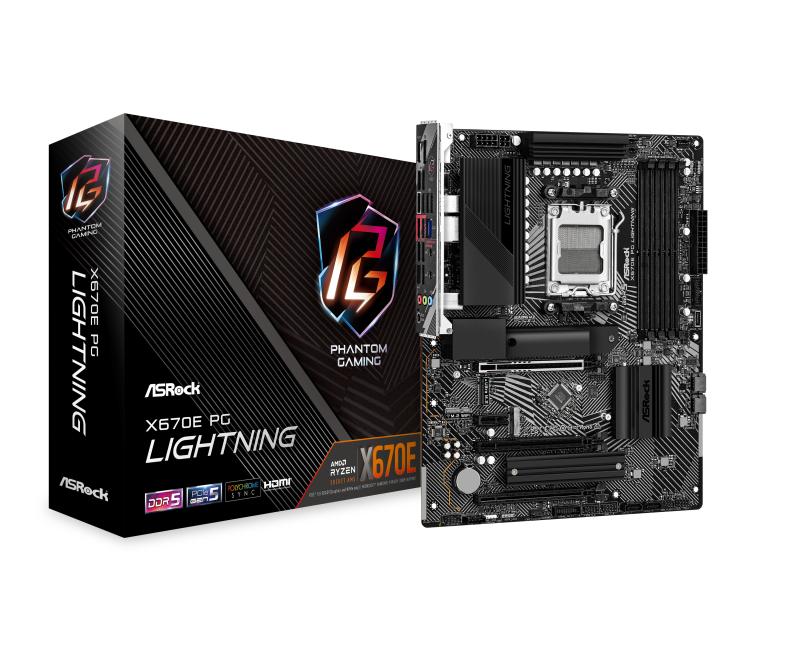

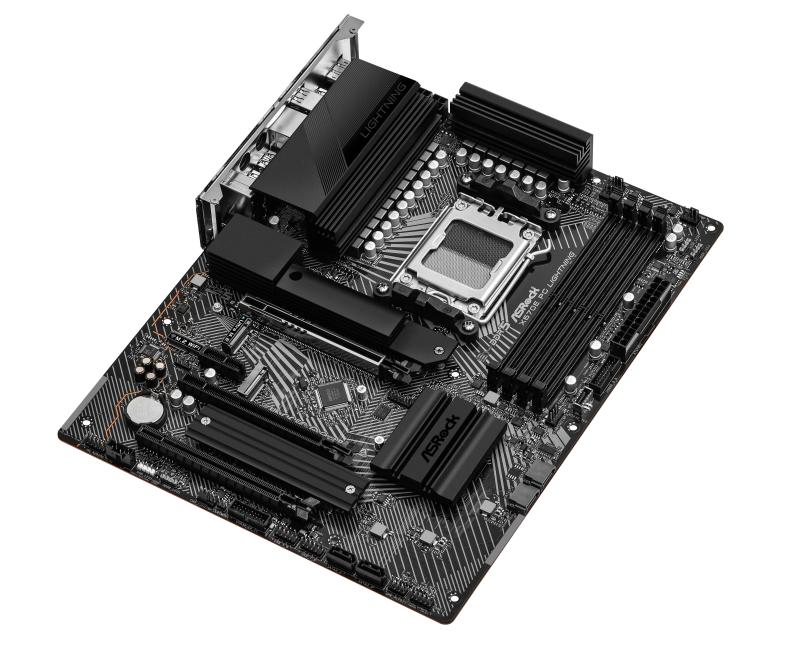

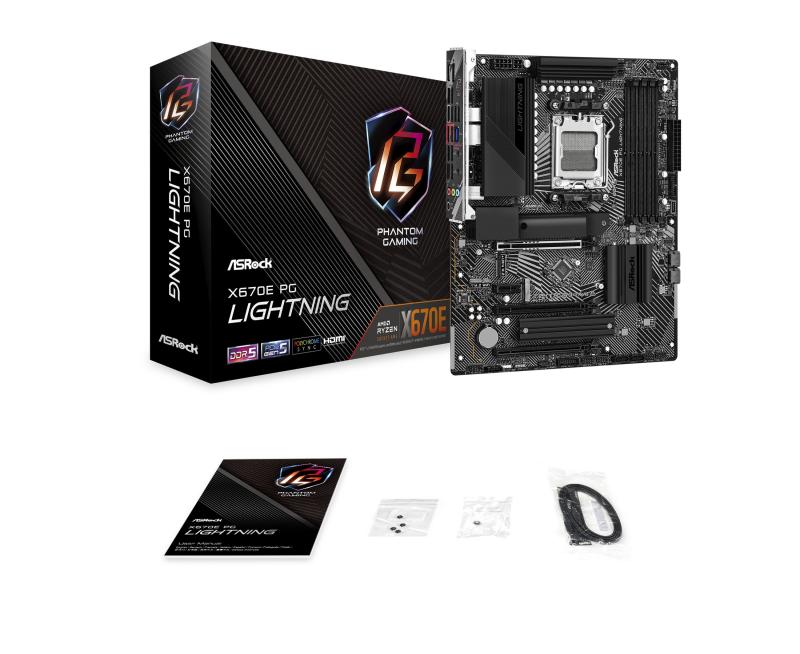

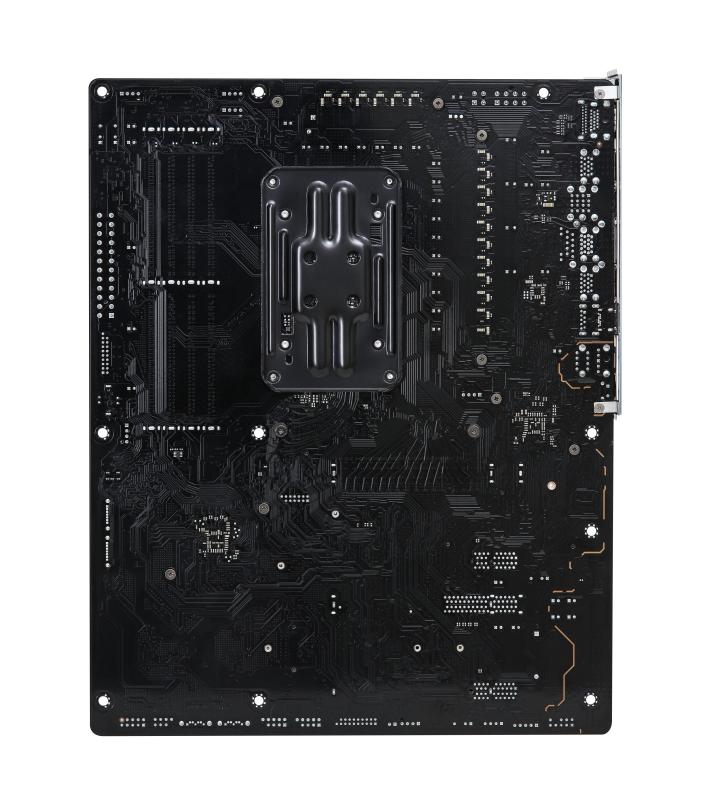

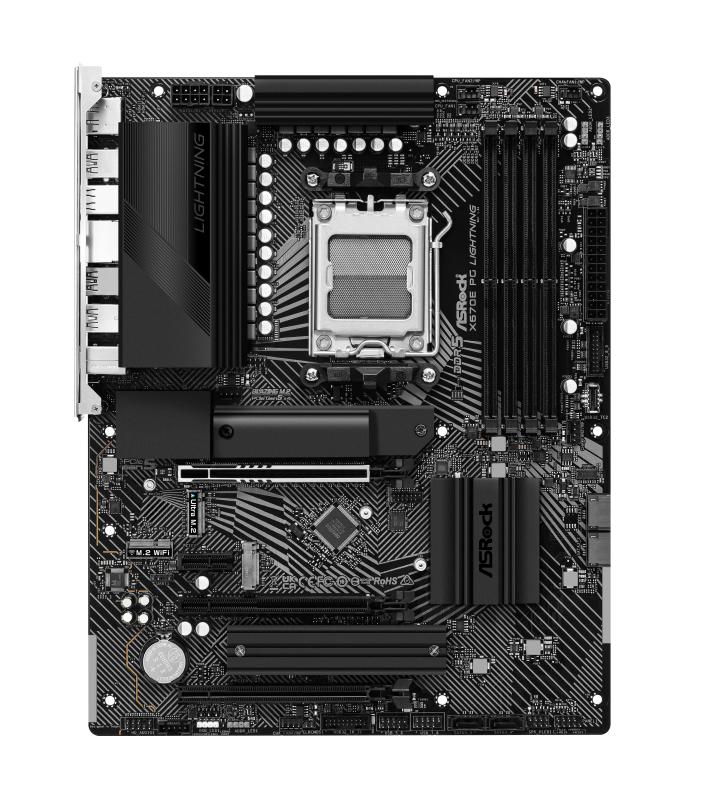

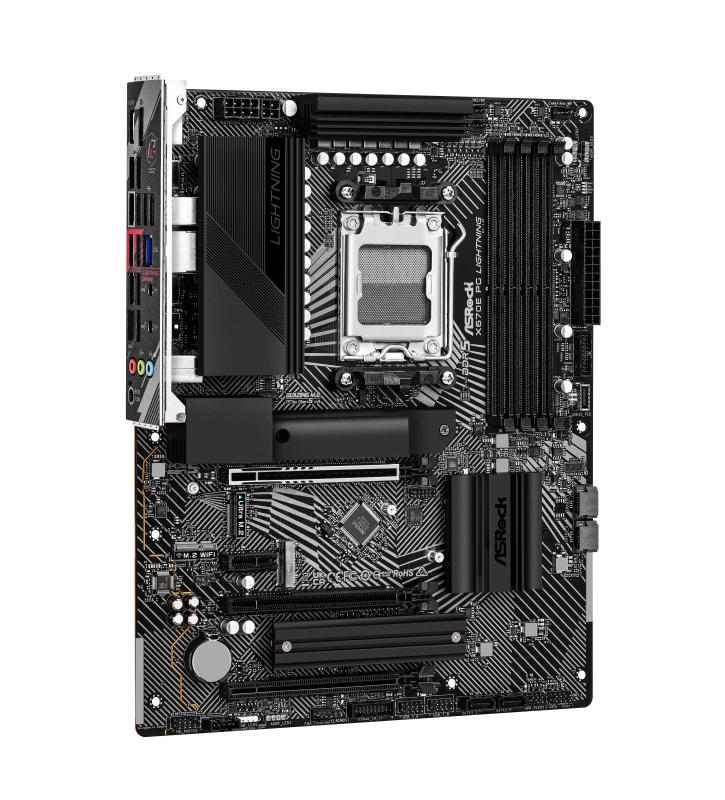

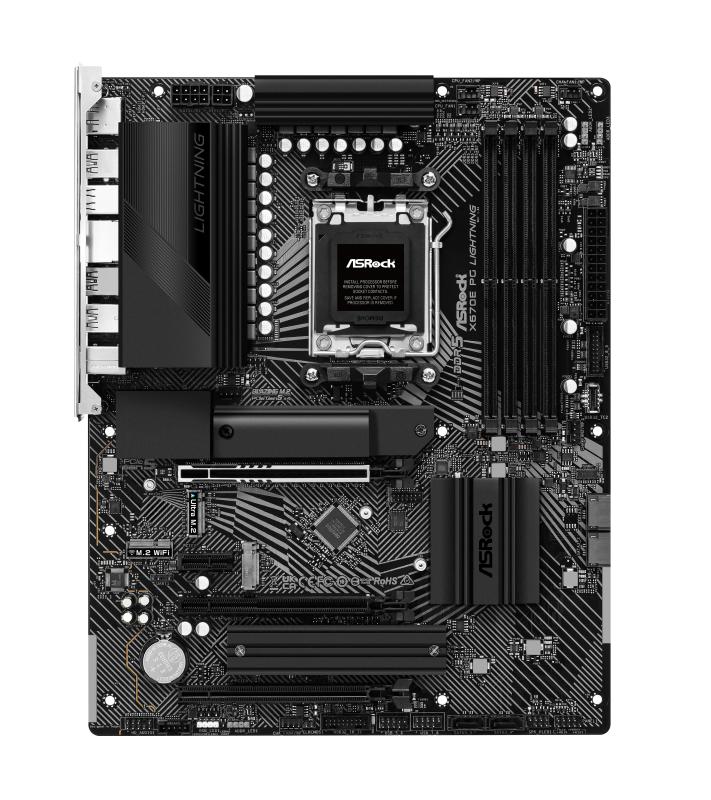

Placa de baza AsRock Socket X670E AM5
Placa de baza AsRock Socket X670E AM5 - imagine 3
Placa de baza AsRock Socket X670E AM5 - imagine 4
Placa de baza AsRock Socket X670E AM5 - imagine 5
Placa de baza AsRock Socket X670E AM5 - imagine 6
Placa de baza AsRock Socket X670E AM5 - imagine 7
Placa de baza AsRock Socket X670E AM5 - imagine 8
Placa de baza AsRock Socket X670E AM5 - imagine 9
Placa de baza AsRock Socket X670E AM5 - imagine 10
Placa de baza AsRock Socket X670E AM5 - imagine 11
Placa de baza AsRock Socket X670E AM5 - imagine 12
Placa de baza AsRock Socket X670E AM5 - imagine 13
Placa de baza AsRock Socket X670E AM5 - imagine 14
Placa de baza AsRock Socket X670E AM5 - imagine 15

Placa de baza AsRock Socket X670E AM5

SKU: X670E PG LIGHTNING
Producator: Asrock
Disponibilitate:

Stoc epuizat
Add to wishlist
Compare

1.952,99lei

Stoc epuizat

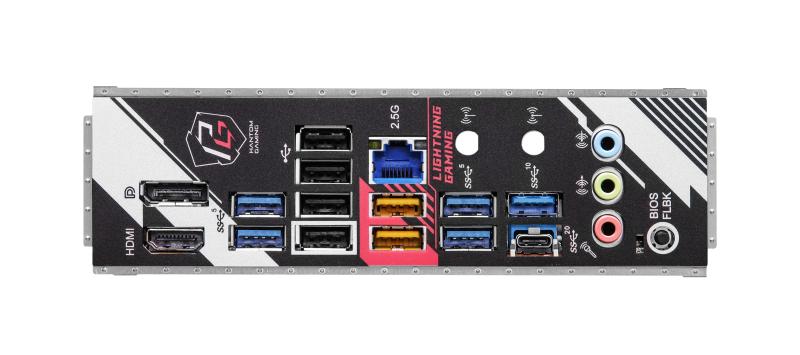

Placa de baza AsRock Socket AM5, X670E PG Lightning Supports AMD Ryzen™ 7000 Series Processors 14+2+1 Phase Power Design, SPS 4 x DDR5 DIMMs, supports up to 6600+(OC) 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 4.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key-E for WiFi Graphics Output Options: 1 HDMI, 1 DisplayPort 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio 1 Blazing M.2 (PCIe Gen5x4), 1 Hyper M.2 (PCIe Gen4x4), 1 Ultra M.2 (PCIe Gen3x4 & SATA3), 1 M.2 (PCIe Gen4x2), 4 SATA3 1 USB 3.2 Gen2 Type-A (Rear), 10 USB 3.2 Gen1 (6 Rear, 4 Front), 8 USB 2.0 (4 Rear, 4 Front) Realtek 2.5G LAN

SKU: X670E PG LIGHTNING Categorie:
PCI

0
Serial-or-Paralel

No/No
Video-Connection

HDMI/DP
Wi-Fi

No
Onboard-CPU

No
RAID support

Yes
Component for

PC
DisplayPort version

1.4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1
Memory channels

Dual-channel
Ethernet LAN

Yes
HDMI ports quantity

1
Ethernet LAN (RJ-45) ports

1
Maximum internal memory

128 GB
Processor manufacturer

AMD
Microphone in

Yes
Width

305 mm
Depth

244 mm
USB 3.2 Gen 2x2 Type-C ports quantity

1
USB 2.0 ports quantity

4
Audio output channels

7.1 channels
Line-in

Yes
Audio Chip

Realtek ALC897
PCI Express x16 (Gen 4.x) slots

1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

6
DisplayPorts quantity

1
VGA (D-Sub) ports quantity

0
DVI-D ports quantity

0
Model Chipset

X670E
Gaming

Nu
Format

ATX
Soclu Procesor

Socket AM5
Tip Memorie:

DDR5
Numar sloturi memorie

4
Memorie maxima

128 GB
Tip slot interfata grafica

PCIe 5.0 x16
Chipset audio integrat

Realtek
Canale audio

7.1
Wireless

Nu
BLUETOOTH

Nu
USB Type-C

Da
HDMI

Da
Thunderbolt

Nu
Sloturi M.2

4
RJ-45 LAN

1
Number of memory slots

4
Memory slots type

DIMM
USB 2.0 connectors

2
Number of SATA III connectors

4
Front panel audio connector

Yes
ATX Power connector (24-pin)

Yes
CPU fan connector

Yes
EPS power connector (8-pin)

Yes
Motherboard chipset family

AMD
BIOS memory size

256 Mbit
Supported memory types

DDR5-SDRAM
USB 3.2 Gen 2 (3.1 Gen 2) connectors

1
TPM connector

Yes
RGB LED pin header

Yes
Ethernet interface type

2.5 Gigabit Ethernet
Motherboard form factor

ATX
Windows operating systems supported

Windows 11 x64
Cables included

SATA
ECC сompatibility

Non-ECC
USB 3.2 Gen 1 (3.1 Gen 1) connectors

2
RAID levels

0, 1, 10
Processor socket

Socket AM5
Motherboard chipset

AMD X670
PCI Express x4 slots

1
LAN controller

Realtek RTL8125-BG
Compatible processor series

AMD Ryzen™ 7
BIOS type

EFI AMI
Supported storage drive interfaces

M.2, NVMe, SATA III
Producator

ASROCK
Garantie

36
