Stoc epuizat
1.146,99lei
Stoc epuizat

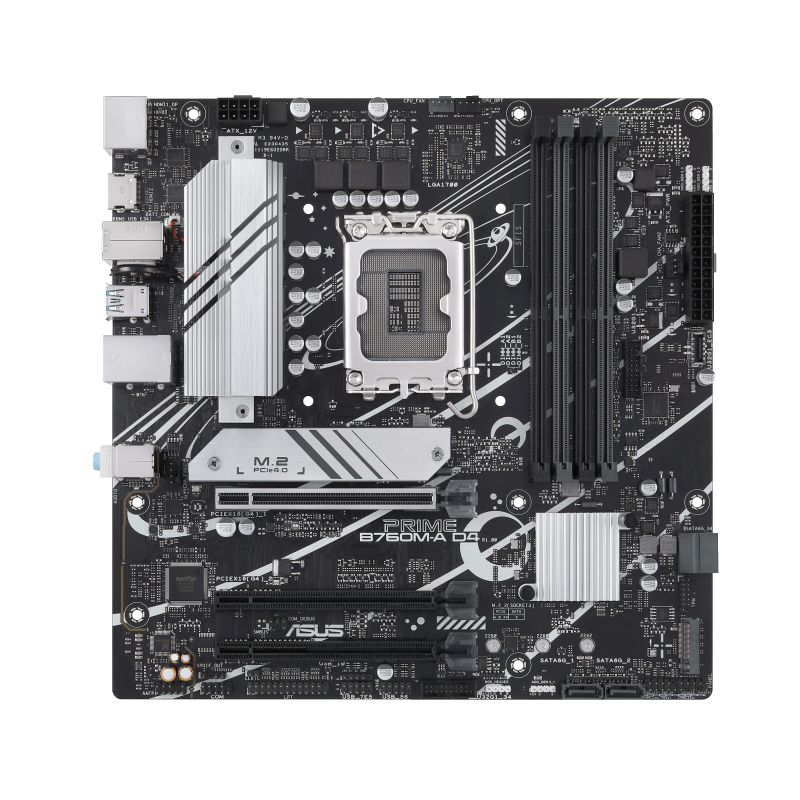

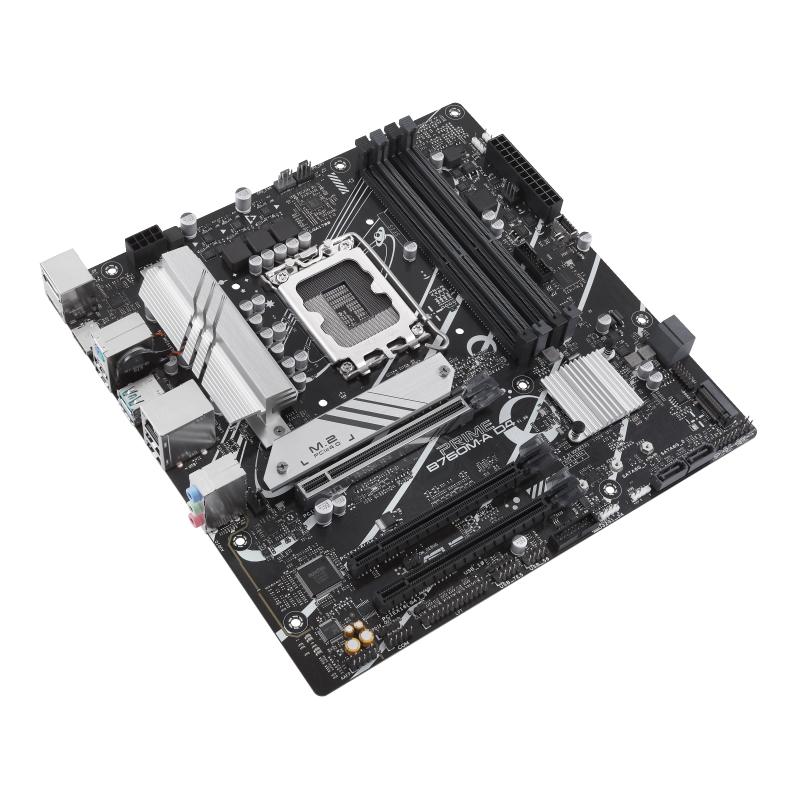

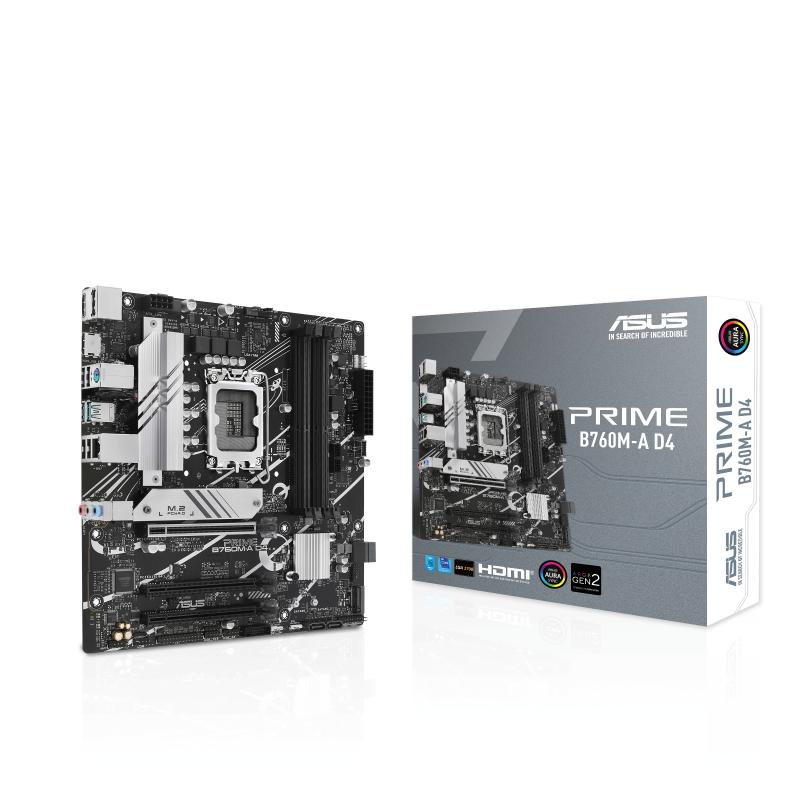

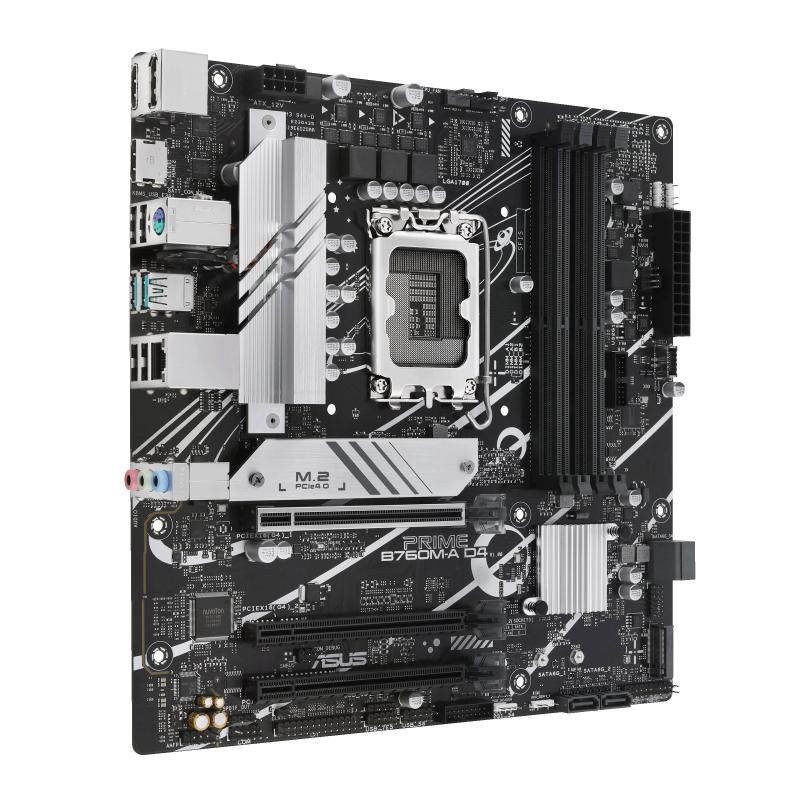

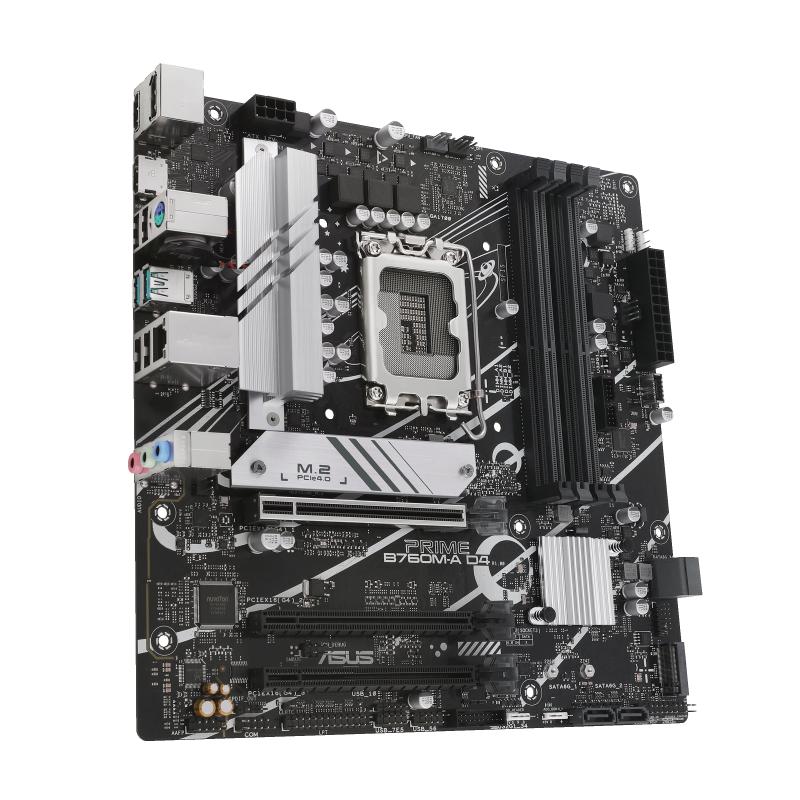

Placa de baza ASUS PRIME B760M-A D4 LGA 1700 Model PRIME B760M-A D4 CPU Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** *Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel® B760 Chipset Memory 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600 (OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333 (OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. Graphics 1 x DisplayPort** 2 x HDMI® ports*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI® 2.1. Expansion Slots Intel® 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel® B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x16 slot (supports x1 mode) Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. Storage Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. Ethernet 1 x Realtek 2.5Gb Ethernet
| PCI | 0 |
|---|---|
| Serial-or-Paralel | No/No |
| Video-Connection | HDMI/DP |
| Wi-Fi | No |
| Onboard-CPU | No |
| RAID support | Yes |
| Component for | PC |
| Wake-on-LAN ready | Yes |
| DisplayPort version | 1.4 |
| USB connector type | USB Type-A |
| Package depth | 52 mm |
| Memory channels | Dual-channel |
| Processor manufacturer | Intel |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.1 |
| Maximum internal memory | 128 GB |
| Microphone in | Yes |
| Depth | 244 mm |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 2.0 ports quantity | 4 |
| Audio output channels | 7.1 channels |
| Supported storage drive types | HDD & SSD |
| Supported memory types | DDR4-SDRAM |
| Number of M.2 (M) slots | 2 |
| Package height | 263 mm |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| Parallel processing technology support | Not supported |
| DVI-D ports quantity | 0 |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Model Chipset | B760 |
| Gaming | Nu |
| Format | Micro-ATX (mATX) |
| Soclu Procesor | Socket 1700 |
| Tip Memorie: | DDR4 |
| Numar sloturi memorie | 4 |
| Memorie maxima | 128 GB |
| Tip slot interfata grafica | PCIe 4.0 x16 |
| Chipset audio integrat | Realtek |
| Canale audio | 7.1 |
| Wireless | Nu |
| BLUETOOTH | Nu |
| USB Type-C | Da |
| HDMI | Da |
| Thunderbolt | Nu |
| Sloturi M.2 | 2 |
| RJ-45 LAN | 1 |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | Yes |
| PS/2 ports quantity | 1 |
| Motherboard form factor | micro ATX |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| Width | 244 mm |
| RAID levels | 0, 1, 5, 10 |
| TPM connector | Yes |
| RGB LED pin header | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Motherboard chipset family | Intel |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| 12V power connector | Yes |
| Cables included | SATA |
| ECC сompatibility | Non-ECC |
| Number of storage drives supported | 6 |
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 3 |
| S/PDIF out connector | Yes |
| Number of COM connectors | 1 |
| Motherboard chipset | Intel B760 |
| PCI Express x16 (Gen 4.x) slots | 3 |
| BIOS memory size | 128 Mbit |
| Package width | 270 mm |
| Package weight | 1.14 kg |
| Height | 40 mm |
| Headphone outputs | 3 |
| Weight | 669 g |
| Producator | ASUS |
| Garantie | 36 |
Nu există recenzii încă.
