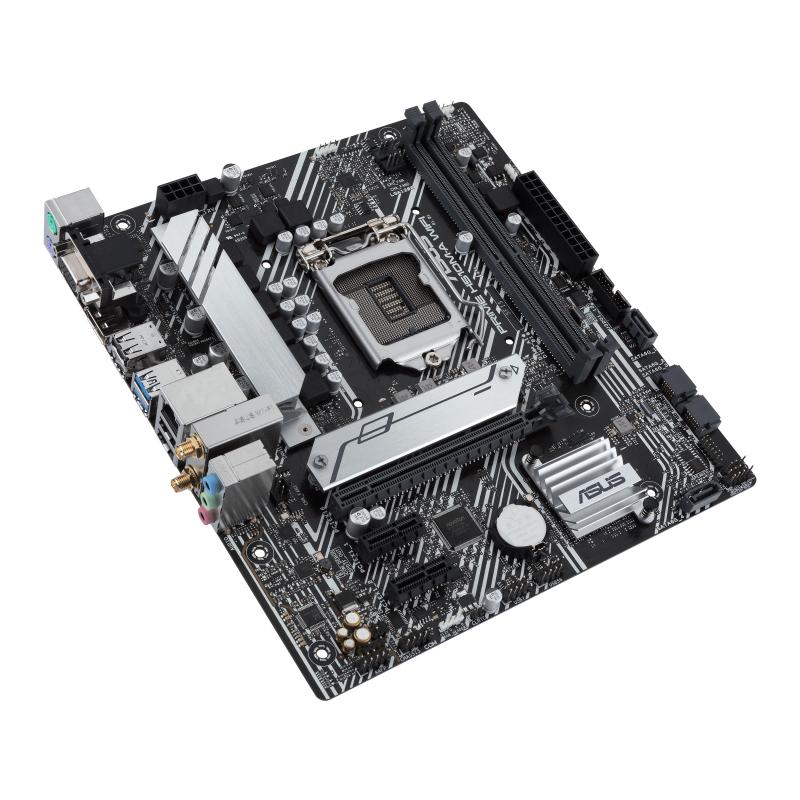

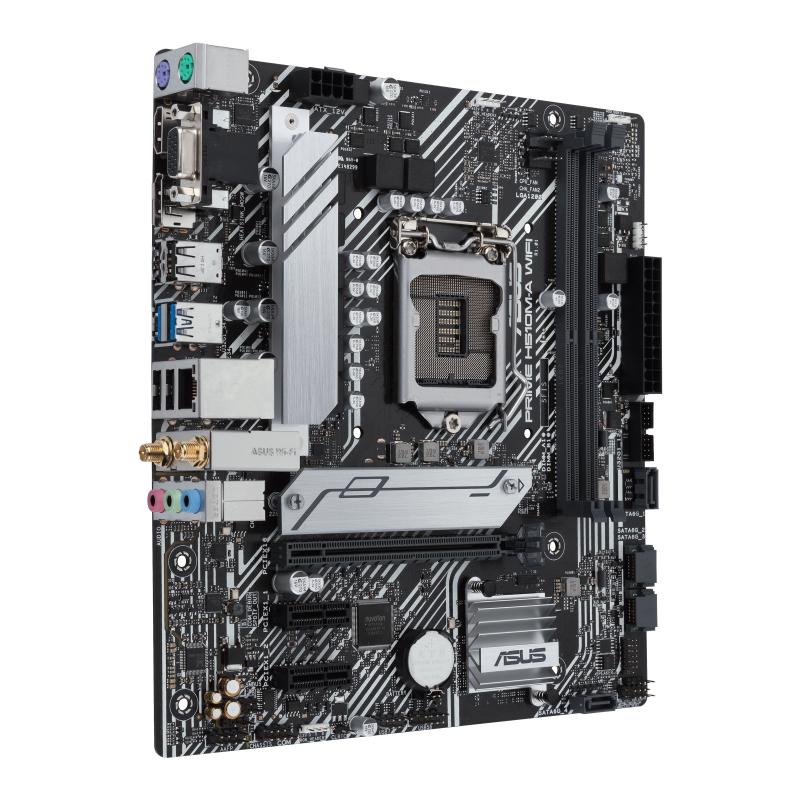

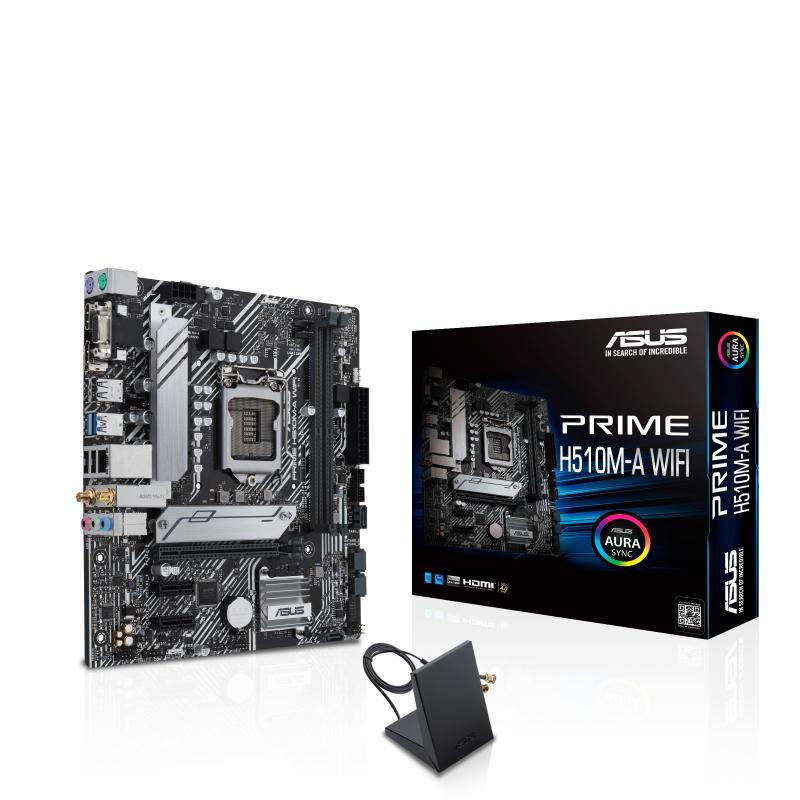

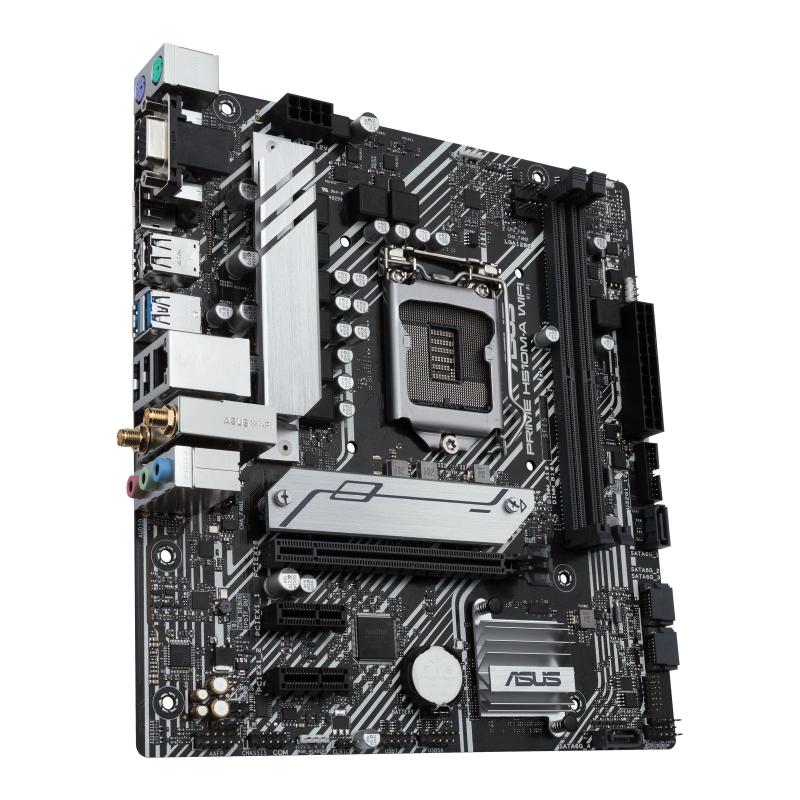

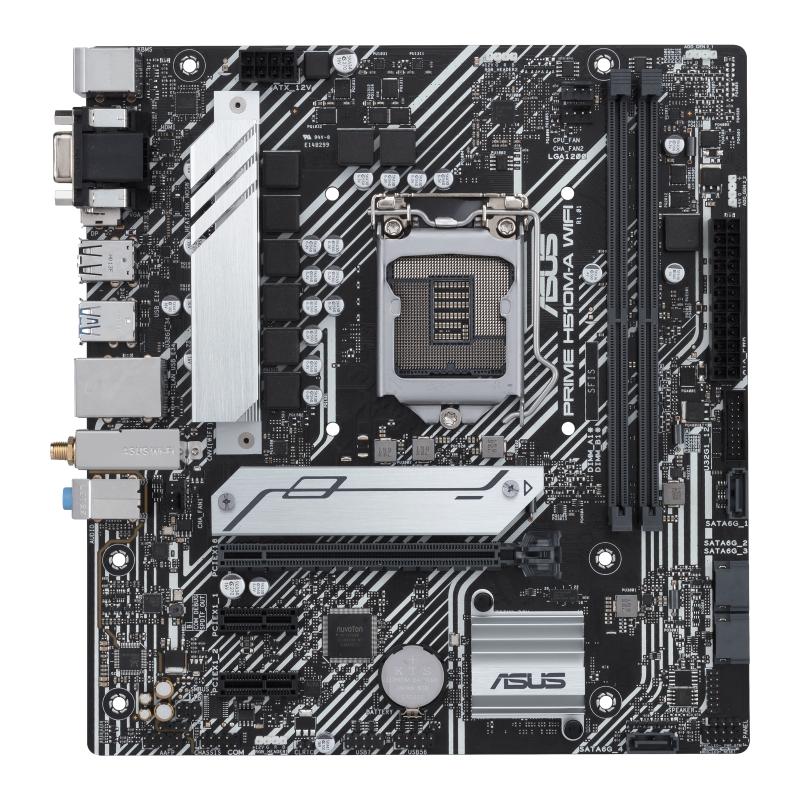

Placa de baza Asus PRIME H510M-A WIFI, LGA 1200
Placa de baza Asus PRIME H510M-A WIFI, LGA 1200 - imagine 3
Placa de baza Asus PRIME H510M-A WIFI, LGA 1200 - imagine 4
Placa de baza Asus PRIME H510M-A WIFI, LGA 1200 - imagine 5
Placa de baza Asus PRIME H510M-A WIFI, LGA 1200 - imagine 6
Placa de baza Asus PRIME H510M-A WIFI, LGA 1200 - imagine 7
Placa de baza Asus PRIME H510M-A WIFI, LGA 1200 - imagine 8
Placa de baza Asus PRIME H510M-A WIFI, LGA 1200 - imagine 9
Placa de baza Asus PRIME H510M-A WIFI, LGA 1200 - imagine 10

Placa de baza Asus PRIME H510M-A WIFI, LGA 1200

SKU: PRIME H510M-A WIFI
Producator: Asus
Disponibilitate:

Stoc epuizat
Add to wishlist
Compare

695,00lei

Stoc epuizat

Placile de baza ASUS din seria Prime sunt proiectate in mod expert pentru a elibera intregul potential al procesoarelor Intel® din generatiile 11 si 10. Dispunand de un design robust din punct de vedere energetic, solutii de racire complete si optiuni inteligente de reglaj, PRIME H510M-A WIFI ofera utilizatorilor zilnici si constructorilor de PC-uri DIY o gama de optiuni de reglare a performantelor prin intermediul unor functii software si firmware intuitive.

SKU: PRIME H510M-A WIFI Categorie:
PCI

0
Serial-or-Paralel

No/No
Video-Connection

VGA/HDMI
Wi-Fi

Yes
CPU încorporat

No
Component for

PC
Top Wi-Fi standard

Wi-Fi 5 (802.11ac)
DisplayPort version

1.4
Ethernet interface type

Gigabit Ethernet
Windows operating systems supported

Windows 10 x64
Harmonized System (HS) code

84733020
Memory channels

Dual-channel
Processor manufacturer

Intel
Maximum internal memory

64 GB
Ethernet LAN

Yes
HDMI ports quantity

1
Ethernet LAN (RJ-45) ports

1
HDMI version

2.0
Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Headphone outputs

1
Microphone in

Yes
Bluetooth version

5.1
WLAN controller model

Intel Dual Band Wireless-AC 9462
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0
USB 2.0 ports quantity

4
PCI Express x1 (Gen 3.x) slots

2
Audio output channels

7.1 channels
PCI Express x16 (Gen 4.x) slots

1
Number of memory slots

2
Supported storage drive types

HDD & SSD
Supported memory types

DDR4-SDRAM
LAN controller

Intel® I219-V
Number of M.2 (M) slots

1
VGA (D-Sub) ports quantity

1
DisplayPorts quantity

1
DVI-D ports quantity

0
Drivers included

Yes
Model Chipset

H510
Gaming

Nu
Format

Micro-ATX (mATX)
Soclu Procesor

Socket 1200
Tip Memorie:

DDR4
Numar sloturi memorie

2
Memorie maxima

64 GB
Tip slot interfata grafica

PCIe 4.0 x16
Chipset audio integrat

Realtek
Canale audio

7.1
Wireless

Da
BLUETOOTH

Da
USB Type-C

Da
HDMI

Da
Thunderbolt

Nu
Sloturi M.2

1
RJ-45 LAN

1
Memory slots type

DIMM
Unbuffered memory

Yes
USB 2.0 connectors

2
USB 3.2 Gen 1 (3.1 Gen 1) connectors

1
USB 3.2 Gen 2 (3.1 Gen 2) connectors

0
Number of SATA III connectors

4
Number of Parallel ATA connectors

0
Front panel audio connector

Yes
ATX Power connector (24-pin)

Yes
CPU fan connector

Yes
Number of chassis fan connectors

2
EPS power connector (8-pin)

Yes
Motherboard form factor

micro ATX
BIOS type

UEFI AMI
Clear CMOS jumper

Yes
Height

51 mm
TPM connector

Yes
RGB LED pin header

Yes
WiFi-AP antenna jack

2
Motherboard chipset family

Intel
Power source type

ATX
Maximum number of SMP processors

1
Maximum resolution

4096 x 2304 pixels
12V power connector

Yes
Cables included

SATA
ECC сompatibility

Non-ECC
S/PDIF out connector

Yes
Number of COM connectors

1
BIOS memory size

128 Mbit
eSATA ports quantity

0
Firewire (IEEE 1394) ports

0
Processor socket

LGA 1200 (Socket H5)
Number of storage drives supported

5
Number of displays supported (on-board graphics)

3
Audio connector

Yes
PS/2 ports quantity

2
Width

226 mm
Number of mounting holes

6
Supported storage drive interfaces

M.2, SATA
Audio Chip

Realtek ALC887 / Realtek ALC897
Depth

211 mm
Number of EATX power connectors

1
Weight

815 g
Motherboard chipset

Intel H510
Compatible processor series

Intel® Celeron®, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
Supported memory clock speeds

2133,2400,2666,2800,2933 MHz
Peripheral (Molex) power connectors (4-pin)

3
Producator

ASUS
Garantie

36
