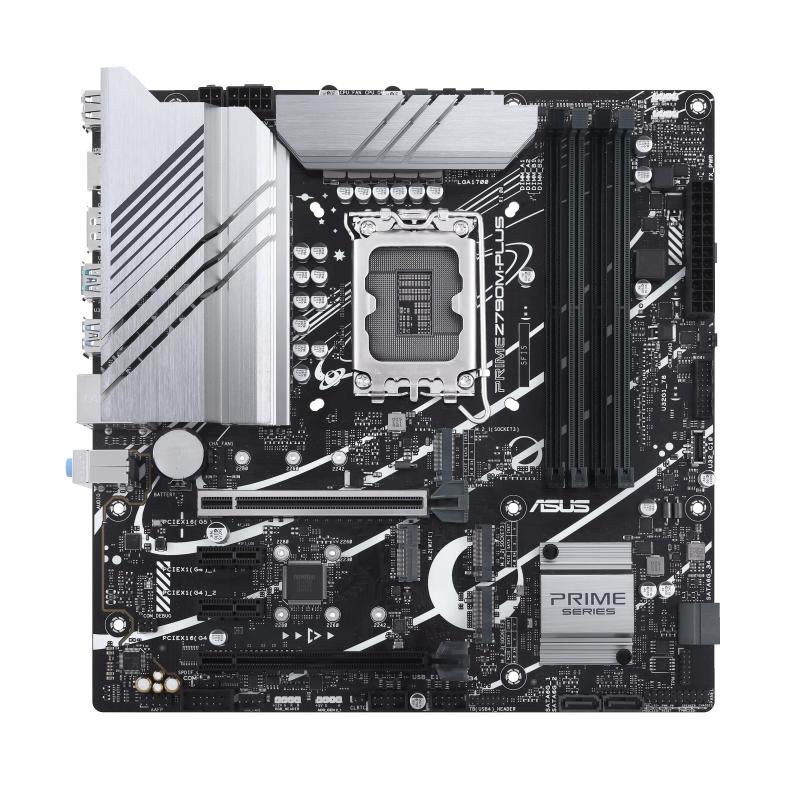

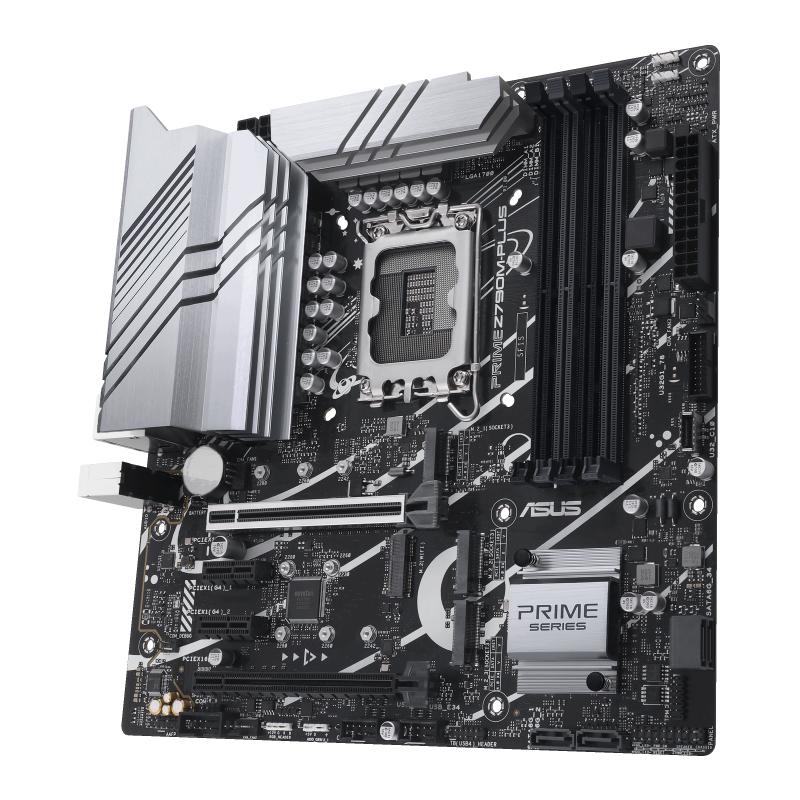

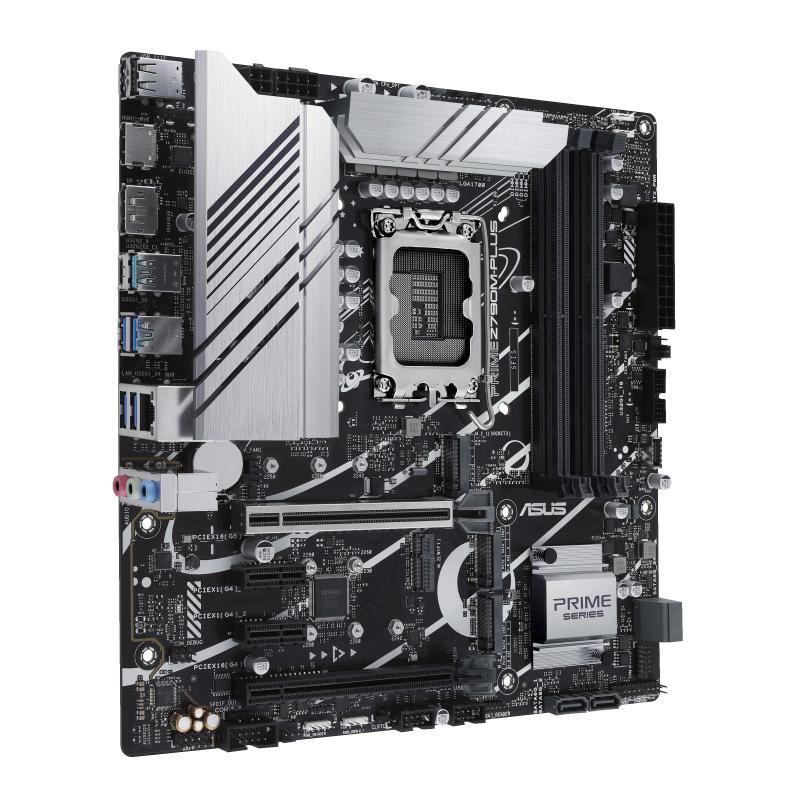

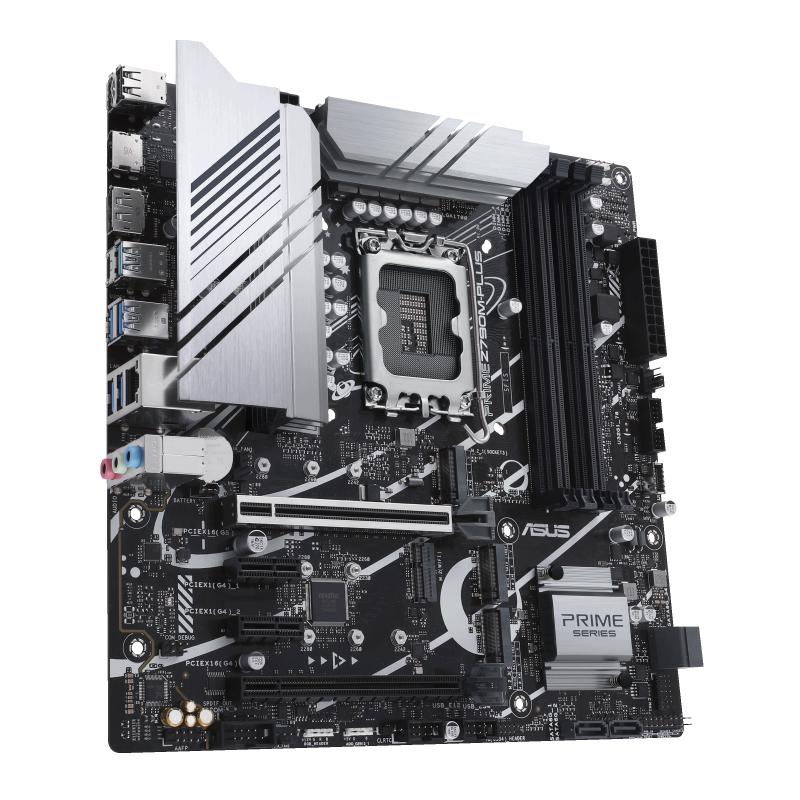

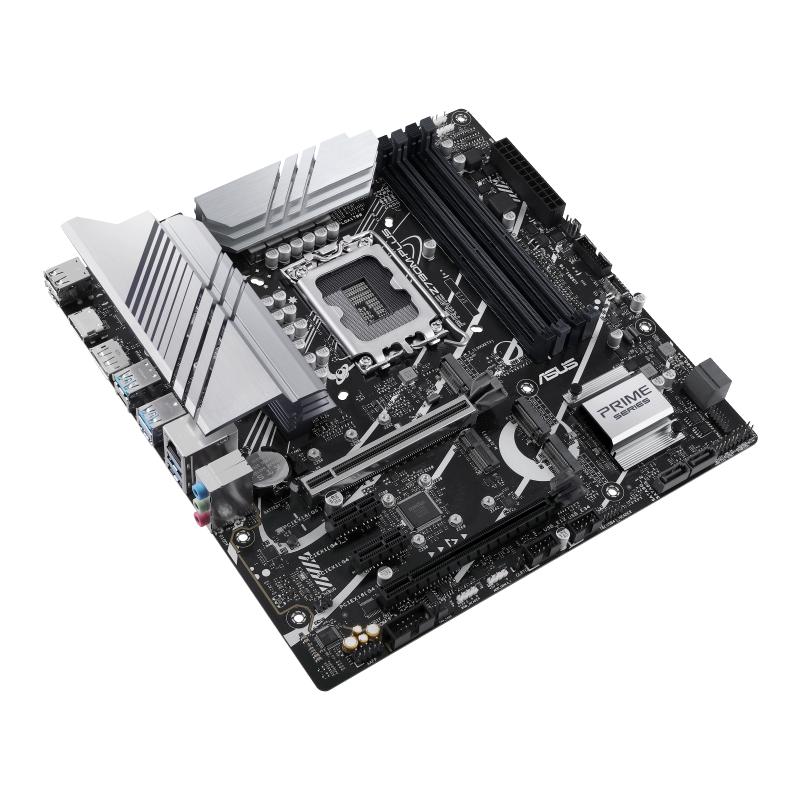

Placa de baza Asus Prime Z790M-PLUS LGA1700
Placa de baza Asus Prime Z790M-PLUS LGA1700 - imagine 3
Placa de baza Asus Prime Z790M-PLUS LGA1700 - imagine 4
Placa de baza Asus Prime Z790M-PLUS LGA1700 - imagine 5
Placa de baza Asus Prime Z790M-PLUS LGA1700 - imagine 6
Placa de baza Asus Prime Z790M-PLUS LGA1700 - imagine 7
Placa de baza Asus Prime Z790M-PLUS LGA1700 - imagine 8
Placa de baza Asus Prime Z790M-PLUS LGA1700 - imagine 9
Placa de baza Asus Prime Z790M-PLUS LGA1700 - imagine 10
Placa de baza Asus Prime Z790M-PLUS LGA1700 - imagine 11
Placa de baza Asus Prime Z790M-PLUS LGA1700 - imagine 12
Placa de baza Asus Prime Z790M-PLUS LGA1700 - imagine 13

Placa de baza Asus Prime Z790M-PLUS LGA1700

SKU: PRIME Z790M-PLUS
Producator: Asus
Disponibilitate:

Stoc epuizat
Add to wishlist
Compare

6.867,99lei

Stoc epuizat

Placa de baza Asus Prime Z790M-PLUS LGA1700, 4x DDR5, 1x DisplayPort, 1x HDMI, 1x PCIe 5.0 x16, 1x PCIe 4.0 x16, 2x PCIe 4.0 x1, 3x M.2, 4x SATA 6 Gbps, 1 Gbps LAN, mATX

SKU: PRIME Z790M-PLUS Categorie:
PCI

0
Serial-or-Paralel

No/No
Video-Connection

HDMI/DP
Wi-Fi

No
Onboard-CPU

No
RAID support

Yes
Component for

PC
Windows operating systems supported

Windows 10, Windows 11
DisplayPort version

1.4
USB connector type

USB Type-A
Ethernet interface type

Gigabit Ethernet
Memory channels

Dual-channel
Processor manufacturer

Intel
Ethernet LAN

Yes
HDMI ports quantity

1
Ethernet LAN (RJ-45) ports

1
Maximum internal memory

128 GB
HDMI version

2.0
Headphone outputs

1
Microphone in

Yes
Depth

244 mm
USB 3.2 Gen 2x2 Type-C ports quantity

1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0
USB 2.0 ports quantity

4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4
Audio output channels

7.1 channels
Line-in

Yes
PCI Express x16 (Gen 5.x) slots

1
PCI Express x16 (Gen 4.x) slots

1
On-board graphics card

No
Supported storage drive types

HDD & SSD
COM ports quantity

1
DisplayPorts quantity

1
VGA (D-Sub) ports quantity

0
DVI-D ports quantity

0
Model Chipset

Z790
Gaming

Nu
Format

Micro-ATX (mATX)
Soclu Procesor

Socket 1700
Tip Memorie:

DDR5
Numar sloturi memorie

4
Memorie maxima

128 GB
Tip slot interfata grafica

N/A
Chipset audio integrat

Realtek
Canale audio

7.1
Wireless

Nu
BLUETOOTH

Nu
USB Type-C

Da
HDMI

Da
Thunderbolt

Nu
Sloturi M.2

3
RJ-45 LAN

1
Number of memory slots

4
Memory slots type

DIMM
Unbuffered memory

Yes
USB 2.0 connectors

2
USB 3.2 Gen 2 (3.1 Gen 2) connectors

0
Number of SATA III connectors

4
Number of SATA II connectors

0
Number of SATA connectors

0
ATX Power connector (24-pin)

Yes
CPU fan connector

Yes
EPS power connector (8-pin)

Yes
Motherboard form factor

micro ATX
BIOS type

UEFI AMI
Width

244 mm
mSATA ports quantity

0
Supported memory types

DDR5-SDRAM
RAID levels

0, 1, 5, 10
RGB LED pin header

Yes
Motherboard chipset family

Intel
Power source type

ATX
Number of M.2 (M) slots

3
Processor socket

LGA 1700
12V power connector

Yes
Cables included

SATA
ECC сompatibility

Non-ECC
S/PDIF out connector

Yes
Number of COM connectors

1
USB 3.2 Gen 1 (3.1 Gen 1) connectors

2
Serial port headers

1
Thunderbolt headers

1
Motherboard chipset

Intel Z790
Peripheral (Molex) power connectors (4-pin)

1
Product colour

Aluminium, Black
Supported memory clock speeds

4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz
Number of chassis fan connectors

3
BIOS memory size

192 Mbit
PCI Express x1 (Gen 4.x) slots

2
Audio connector

Yes
Number of storage drives supported

4
Power fan connector

Yes
Supported storage drive interfaces

M.2, PCI Express 4.0, SATA
Number of HDDs supported

3
Producator

ASUS
Garantie

36
