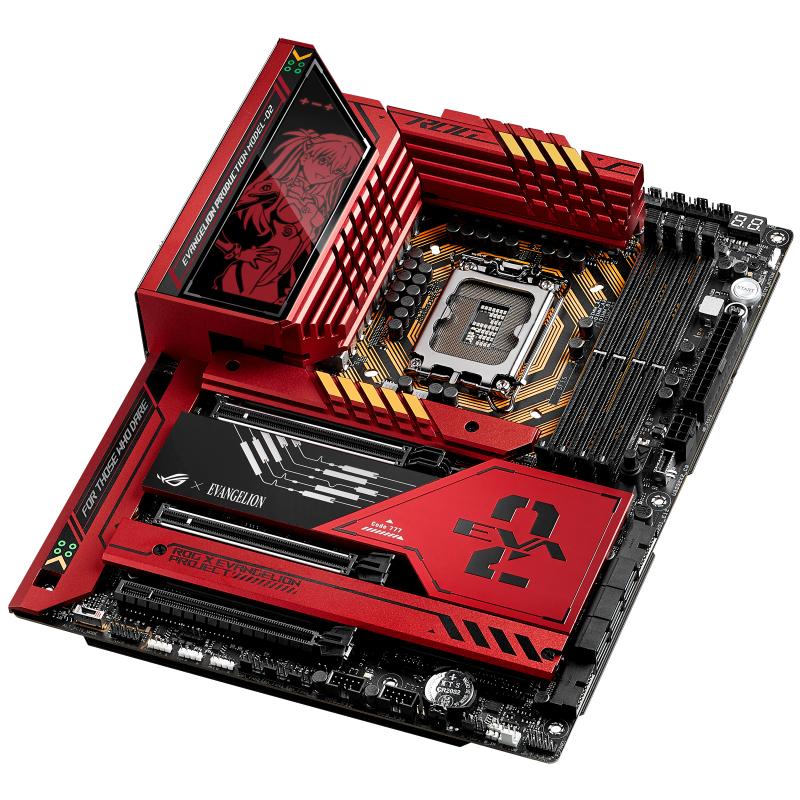

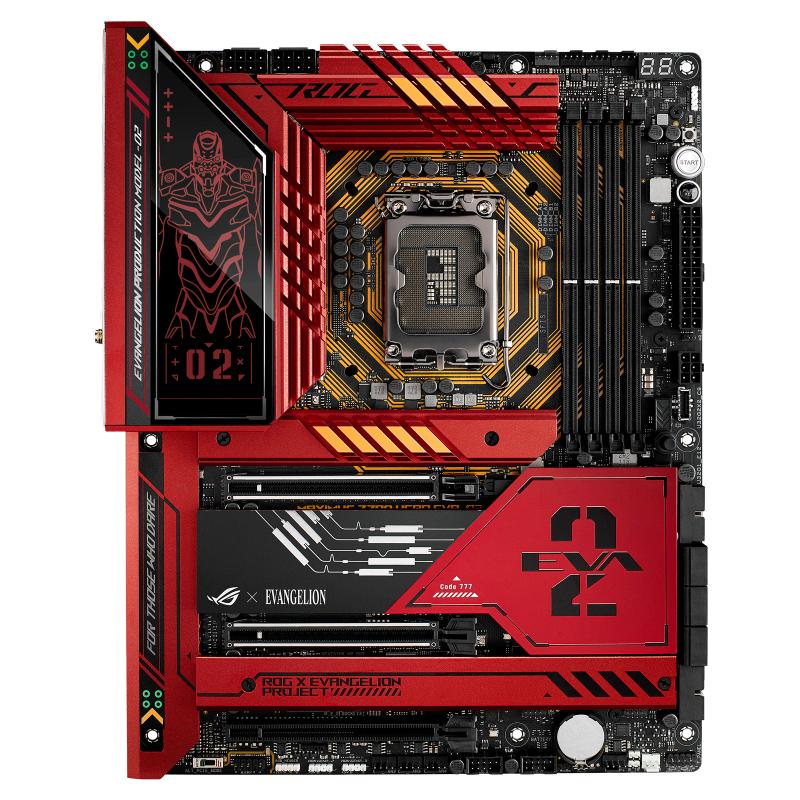

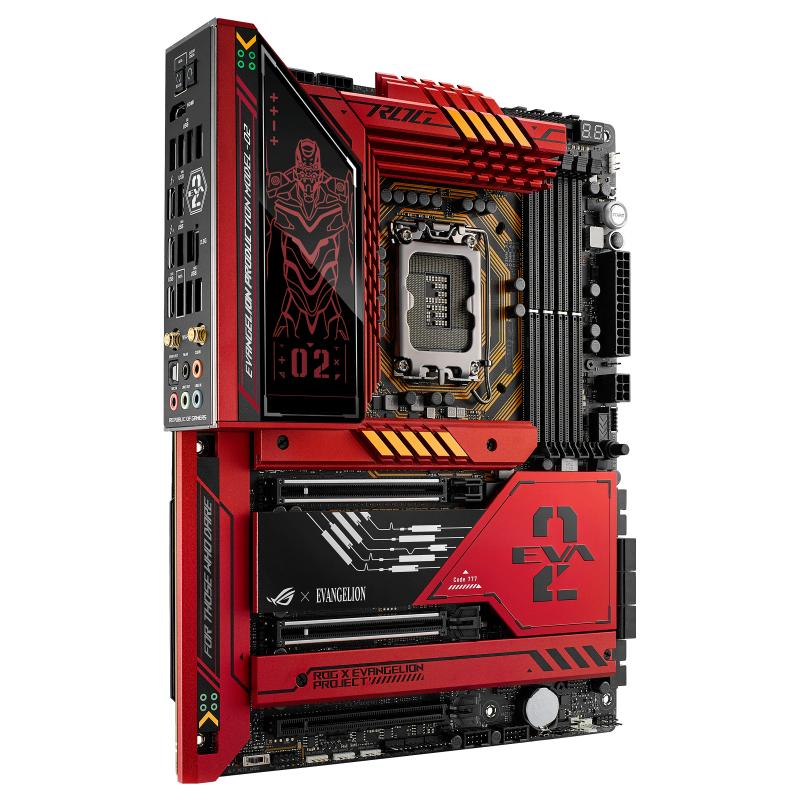

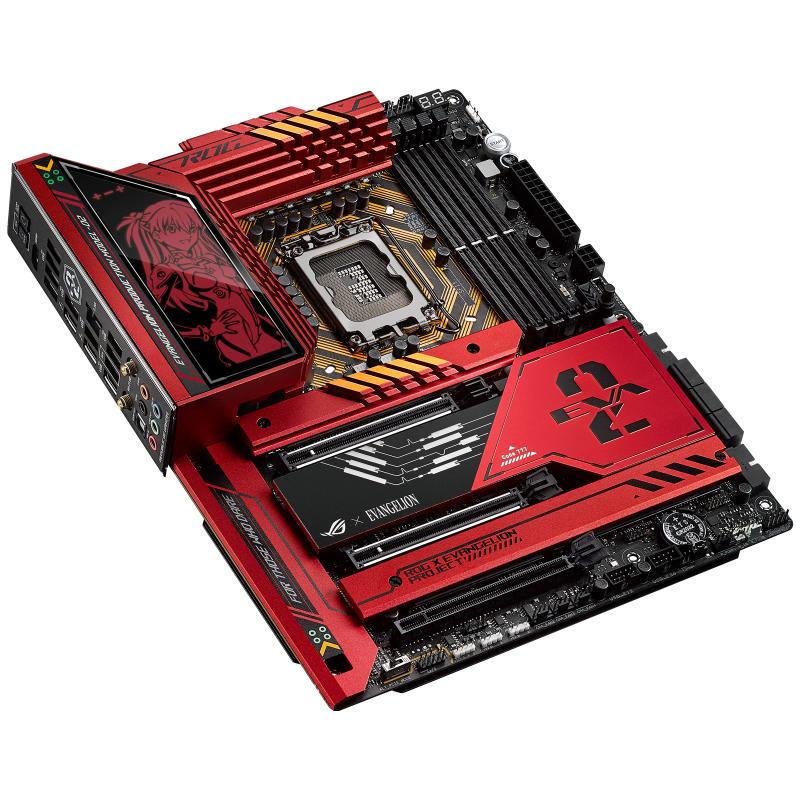

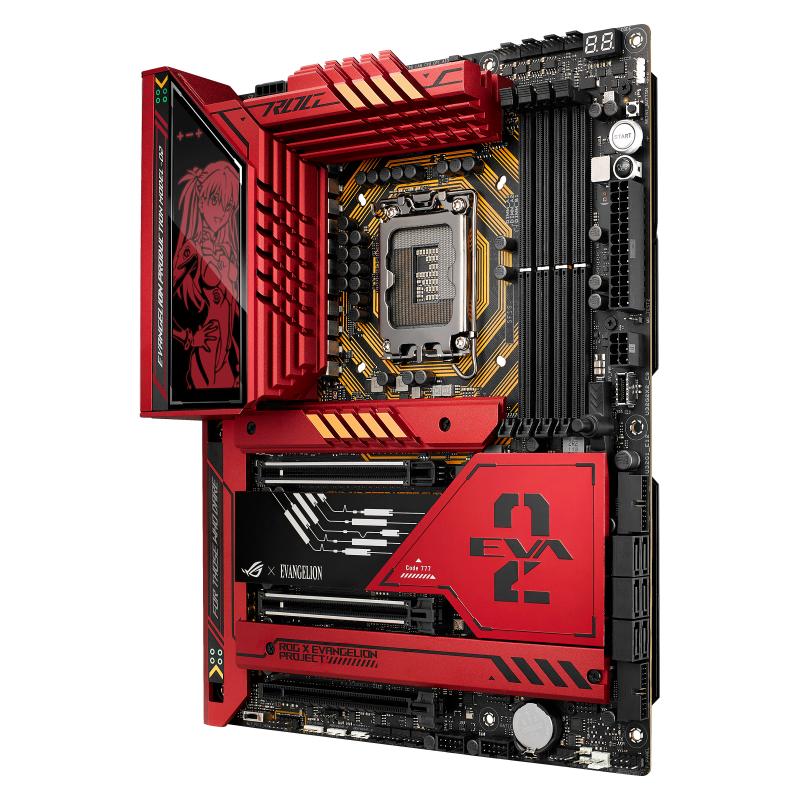

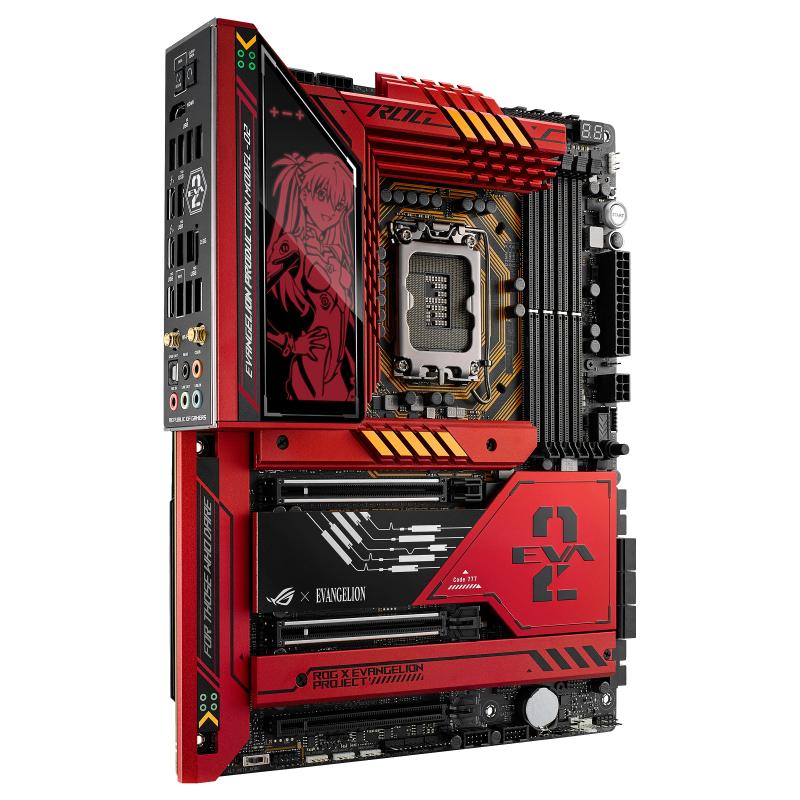

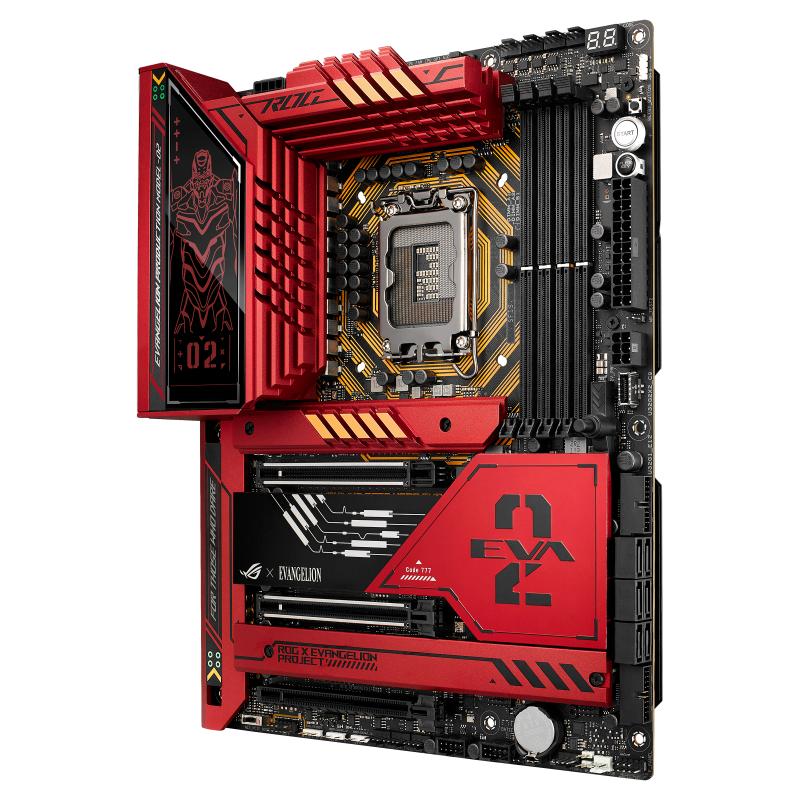

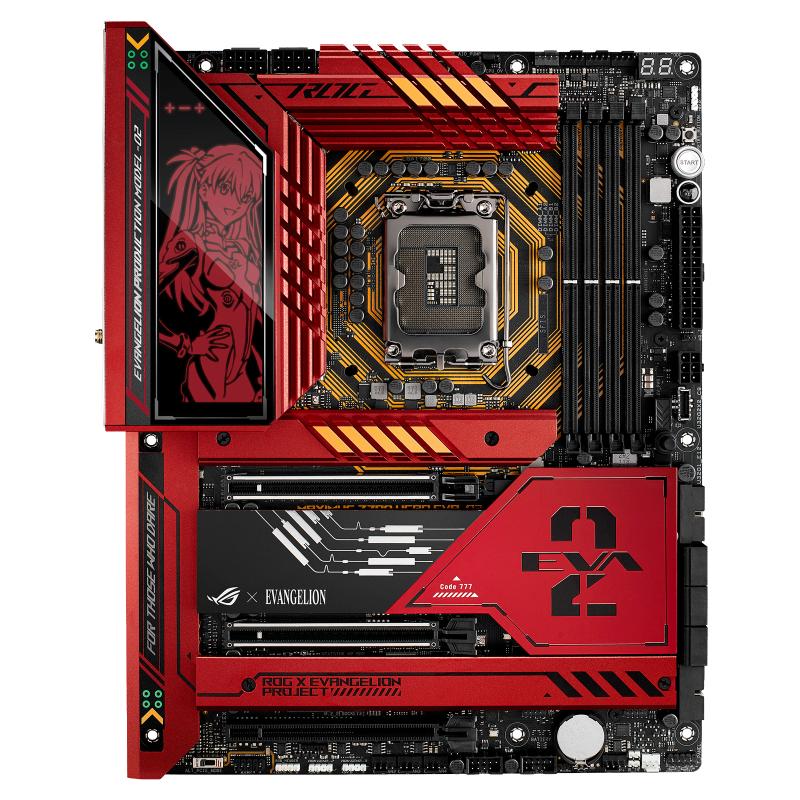

Placa de baza ASUS ROG MAXIMUS Z790 HERO EVA-02 EDITION
Placa de baza ASUS ROG MAXIMUS Z790 HERO EVA-02 EDITION - imagine 3
Placa de baza ASUS ROG MAXIMUS Z790 HERO EVA-02 EDITION - imagine 4
Placa de baza ASUS ROG MAXIMUS Z790 HERO EVA-02 EDITION - imagine 5
Placa de baza ASUS ROG MAXIMUS Z790 HERO EVA-02 EDITION - imagine 6
Placa de baza ASUS ROG MAXIMUS Z790 HERO EVA-02 EDITION - imagine 7
Placa de baza ASUS ROG MAXIMUS Z790 HERO EVA-02 EDITION - imagine 8
Placa de baza ASUS ROG MAXIMUS Z790 HERO EVA-02 EDITION - imagine 9
Placa de baza ASUS ROG MAXIMUS Z790 HERO EVA-02 EDITION - imagine 10
Placa de baza ASUS ROG MAXIMUS Z790 HERO EVA-02 EDITION - imagine 11
Placa de baza ASUS ROG MAXIMUS Z790 HERO EVA-02 EDITION - imagine 12
Placa de baza ASUS ROG MAXIMUS Z790 HERO EVA-02 EDITION - imagine 13
Placa de baza ASUS ROG MAXIMUS Z790 HERO EVA-02 EDITION - imagine 14

Placa de baza ASUS ROG MAXIMUS Z790 HERO EVA-02 EDITION

SKU: ROG MAXIMUS Z790 HERO EVA-02
Producator: Asus
Disponibilitate:

Stoc epuizat
Add to wishlist
Compare

5.047,99lei

Stoc epuizat

Placa de baza ROG MAXIMUS Z790 HERO EVA-02 EDITION, Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors, Intel® Z790 Chipset, 4 x DIMM, Max. 192GB, DDR5, 1 x HDMI® port

SKU: ROG MAXIMUS Z790 HERO EVA-02 Categorie:
PCI

0
Serial-or-Paralel

No/No
Video-Connection

HDMI/DP
Wi-Fi

Yes
Onboard-CPU

No
Product colour

Black, Red
RAID support

Yes
Component for

PC
Wake-on-LAN ready

Yes
Thunderbolt ports quantity

2
User guide

Yes
Memory channels

Dual-channel
Processor manufacturer

Intel
Top Wi-Fi standard

Wi-Fi 6E (802.11ax)
Ethernet LAN

Yes
HDMI ports quantity

1
Ethernet LAN (RJ-45) ports

1
HDMI version

2.1
Bluetooth version

5.3
Width

305 mm
Depth

244 mm
USB 2.0 ports quantity

0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4
Audio output channels

7.1 channels
PCI Express x16 (Gen 4.x) slots

1
Supported storage drive types

HDD & SSD
Cooling type

Passive
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

5
S/PDIF out port

Yes
Maximum internal memory

192 GB
VGA (D-Sub) ports quantity

0
DVI-D ports quantity

0
Drivers included

Yes
Windows operating systems supported

Windows 10 x64, Windows 11
Model Chipset

Z790
Gaming

Nu
Format

ATX
Soclu Procesor

Socket 1700
Tip Memorie:

DDR5
Numar sloturi memorie

4
Memorie maxima

192 GB
Tip slot interfata grafica

N/A
Chipset audio integrat

Realtek
Canale audio

7.1
Wireless

Da
BLUETOOTH

Nu
USB Type-C

Da
HDMI

Da
Thunderbolt

Nu
Sloturi M.2

5
RJ-45 LAN

1
Number of memory slots

4
Memory slots type

DIMM
Unbuffered memory

Yes
Supported storage drive interfaces

M.2, SATA III
USB 2.0 connectors

2
Front panel audio connector

Yes
ATX Power connector (24-pin)

Yes
CPU fan connector

Yes
EPS power connector (8-pin)

Yes
BIOS type

UEFI AMI
BIOS memory size

256 Mbit
Supported memory types

DDR5-SDRAM
RAID levels

0, 1, 5, 10
USB 3.2 Gen 2 (3.1 Gen 2) connectors

1
Number of chassis fan connectors

4
RGB LED pin header

Yes
Ethernet interface type

2.5 Gigabit Ethernet
Motherboard form factor

ATX
Motherboard chipset family

Intel
Power source type

ATX
Processor socket

LGA 1700
Supported processor sockets

LGA 1700
12V power connector

Yes
Number of M.2 (M) slots

5
Clear CMOS button

Yes
Cables included

SATA
ECC сompatibility

Non-ECC
USB 3.2 Gen 1 (3.1 Gen 1) connectors

2
Back-to-BIOS button

Yes
Supported memory clock speeds

7800 MHz
Motherboard chipset

Intel Z790
Number of SATA III connectors

6
PCI Express x16 (Gen 5.x) slots

2
Audio Chip

Realtek ALC4082
Number of HDDs supported

6
Package width

370 mm
Package depth

312 mm
Package height

108 mm
Package weight

4.56 kg
Number of storage drives supported

11
Wi-Fi standards

802.11a, 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Producator

ASUS
Garantie

36
