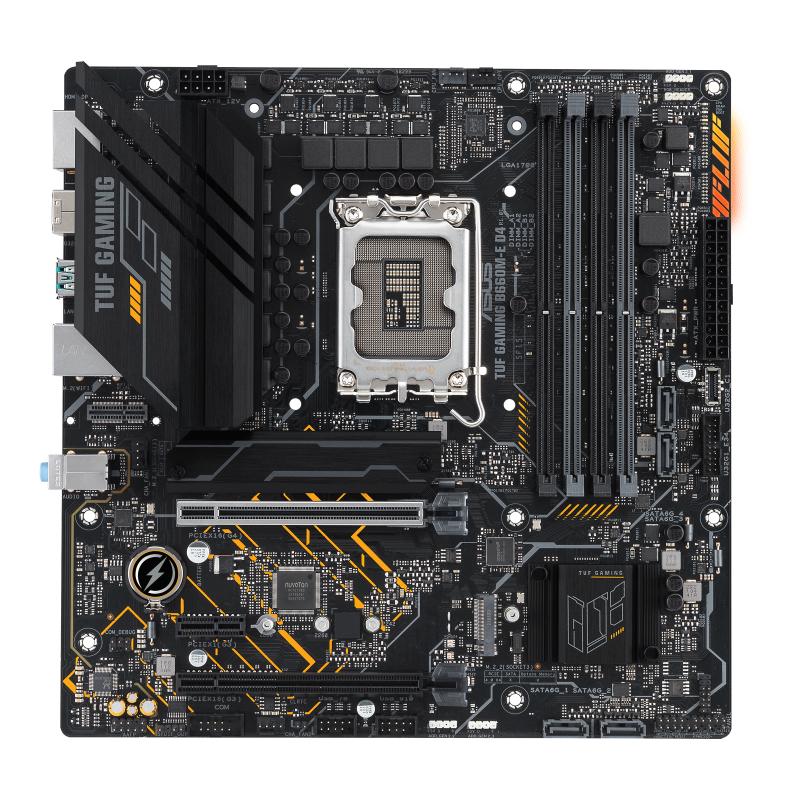

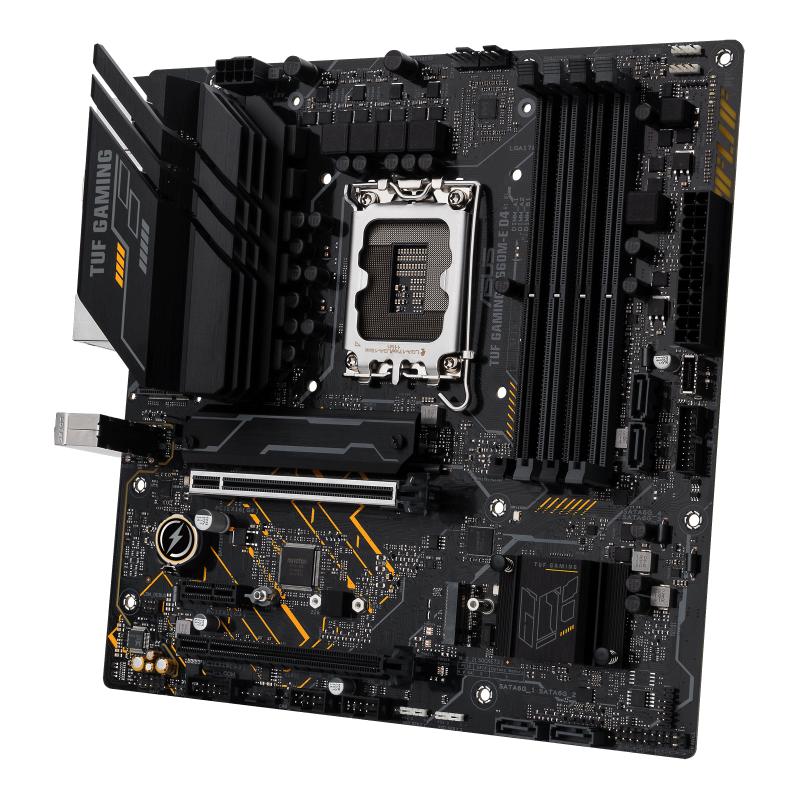

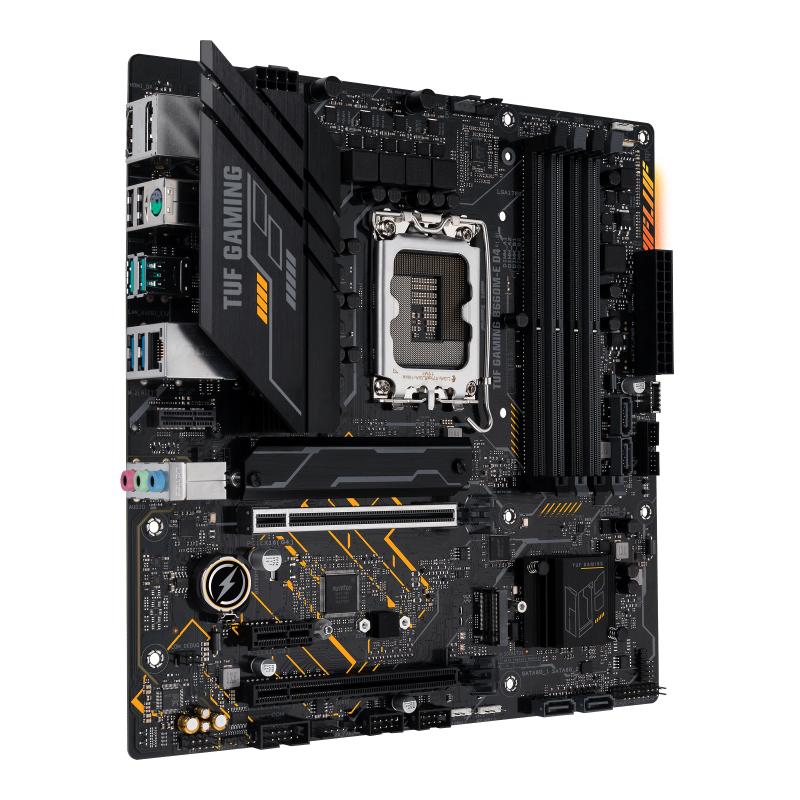

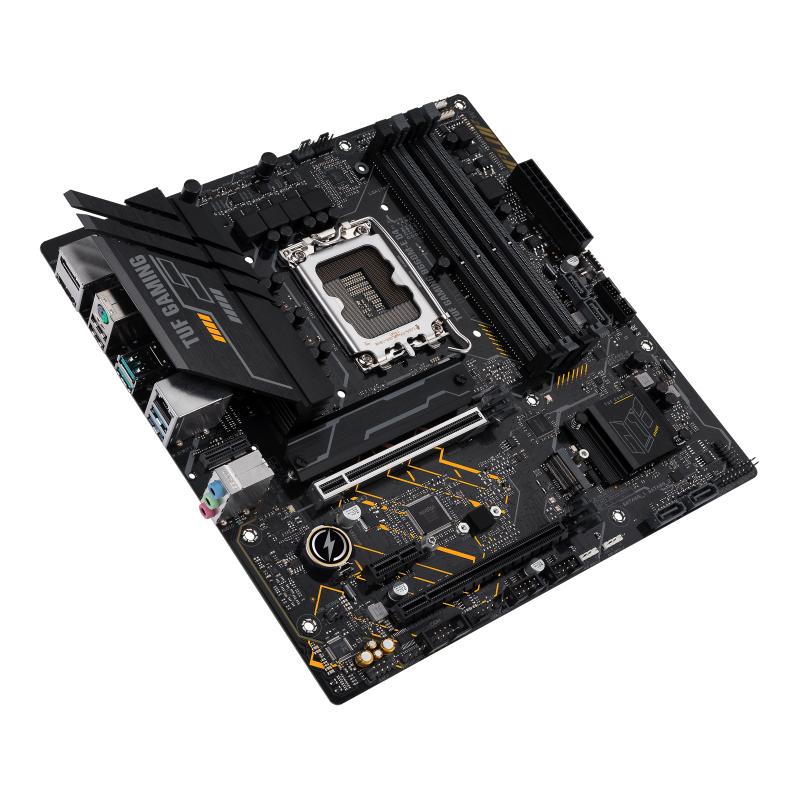

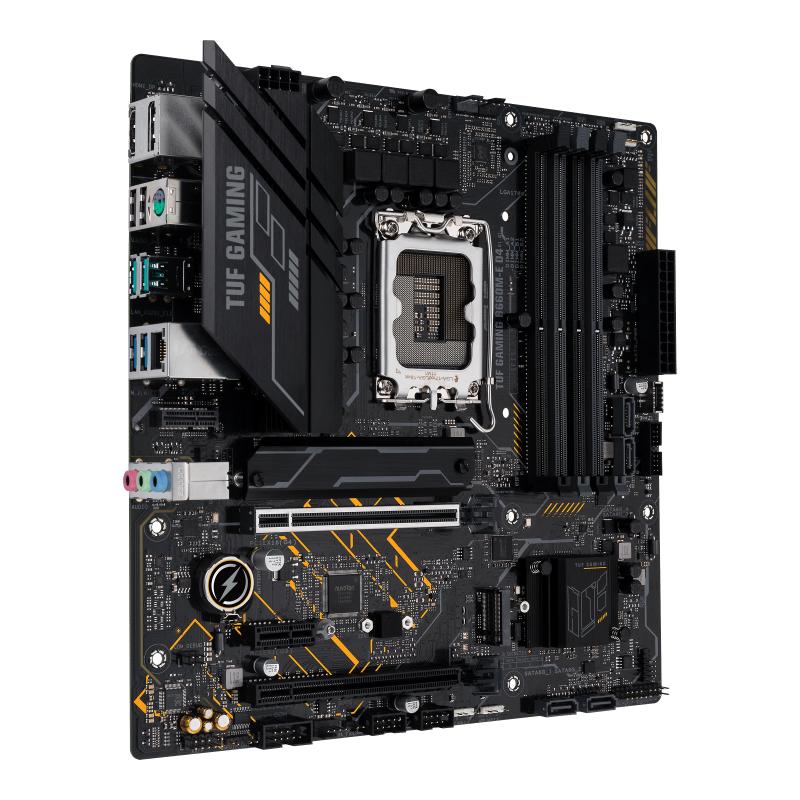

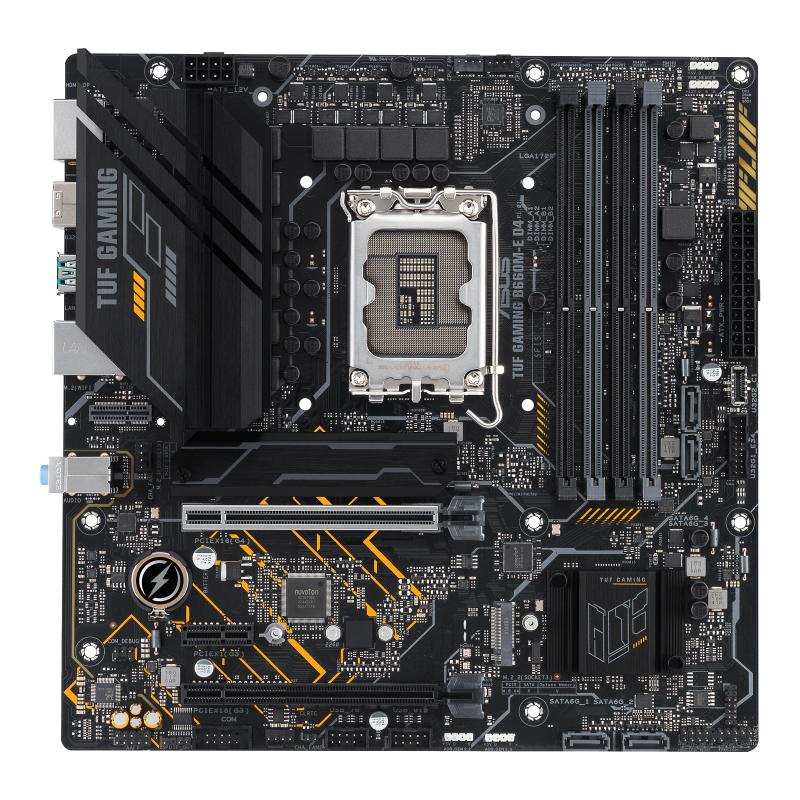

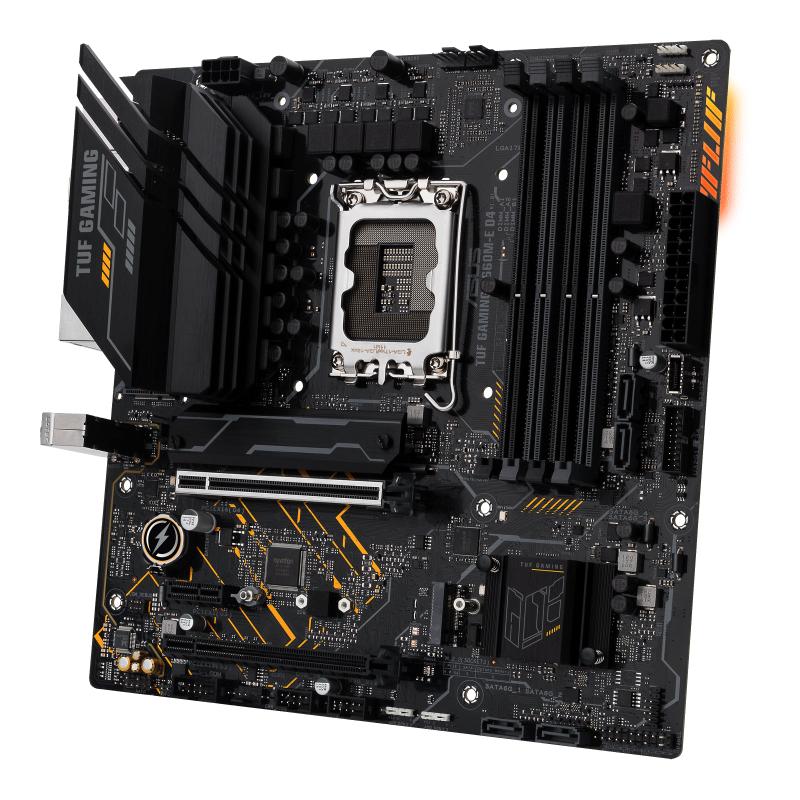

Placa de baza Asus TUF GAMING B660M-E D4 Intel® B660,
Placa de baza Asus TUF GAMING B660M-E D4 Intel® B660, - imagine 3
Placa de baza Asus TUF GAMING B660M-E D4 Intel® B660, - imagine 4
Placa de baza Asus TUF GAMING B660M-E D4 Intel® B660, - imagine 5
Placa de baza Asus TUF GAMING B660M-E D4 Intel® B660, - imagine 6
Placa de baza Asus TUF GAMING B660M-E D4 Intel® B660, - imagine 7
Placa de baza Asus TUF GAMING B660M-E D4 Intel® B660, - imagine 8
Placa de baza Asus TUF GAMING B660M-E D4 Intel® B660, - imagine 9
Placa de baza Asus TUF GAMING B660M-E D4 Intel® B660, - imagine 10
Placa de baza Asus TUF GAMING B660M-E D4 Intel® B660, - imagine 11
Placa de baza Asus TUF GAMING B660M-E D4 Intel® B660, - imagine 12
Placa de baza Asus TUF GAMING B660M-E D4 Intel® B660, - imagine 13
Placa de baza Asus TUF GAMING B660M-E D4 Intel® B660, - imagine 14

Placa de baza Asus TUF GAMING B660M-E D4 Intel® B660,

SKU: TUF B660M-E D4
Producator: Asus
Disponibilitate:

Stoc epuizat
Add to wishlist
Compare

1.072,99lei

Stoc epuizat

General
Recomandat pentru Gaming
Da
Format
mATX
Soclu procesor
1700
Producator chipset
Intel
Model chipset
B660
Procesoare suportate
Intel 12th Generation Core/Pentium Gold/Celeron
Interfata grafica
PCI Express x16 5.0
Placa audio integrata
7.1 Audio
Chipset audio
Realtek
Placa retea integrata
10/100/1000/2500 Mbps
Chipset retea
Realtek
Numar SATA-III
4
M.2
2
Memorii Suportate
Tip memorie
DDR4
Memorie maxima
128 GB
Numar sloturi
4
Tehnologie
Dual channel
Frecvente suportate
5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz
Sloturi
PCI Express 4.0 x16
1 (x16)
PCI Express x1
1
Conectori Back Panel
HDMI
1
Display Port
1
USB 2.0
2
USB 3.2 Gen1 tip A
2
USB 3.2 Gen2 tip A
2
RJ-45 LAN
1
Suport audio
7.1
BIOS Flashback
Da
SKU: TUF B660M-E D4 Categorie:
PCI

0
Serial-or-Paralel

No/No
Video-Connection

HDMI/DP
Wi-Fi

No
CPU încorporat

No
RAID support

Yes
Component for

PC
DisplayPort version

1.4
USB connector type

USB Type-A
Harmonized System (HS) code

84733020
Memory channels

Dual-channel
Processor manufacturer

Intel
Ethernet LAN

Yes
HDMI ports quantity

1
Ethernet LAN (RJ-45) ports

1
HDMI version

2.1
Maximum internal memory

128 GB
USB 2.0 ports quantity

2
Depth

244 mm
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0
PCI Express x16 (Gen 3.x) slots

1
Motherboard chipset

Intel B660
Audio output channels

7.1 channels
PCI Express x1 (Gen 3.x) slots

1
Audio Chip

Realtek ALC897
PCI Express x16 (Gen 4.x) slots

1
Supported storage drive types

HDD & SSD
Supported memory types

DDR4-SDRAM
Number of M.2 (M) slots

2
DisplayPorts quantity

1
VGA (D-Sub) ports quantity

0
DVI-D ports quantity

0
Weight

1.19 kg
Model Chipset

B660
Gaming

Da
Format

Micro-ATX (mATX)
Soclu Procesor

Socket 1700
Tip Memorie:

DDR4
Numar sloturi memorie

4
Memorie maxima

128 GB
Tip slot interfata grafica

PCIe 4.0 x16
Chipset audio integrat

Realtek
Canale audio

7.1
Wireless

Nu
BLUETOOTH

Nu
USB Type-C

Da
HDMI

Da
Thunderbolt

Nu
Sloturi M.2

2
RJ-45 LAN

1
Number of memory slots

4
Memory slots type

DIMM
Unbuffered memory

Yes
USB 2.0 connectors

2
USB 3.2 Gen 1 (3.1 Gen 1) connectors

1
Number of SATA III connectors

4
Front panel audio connector

Yes
ATX Power connector (24-pin)

Yes
CPU fan connector

Yes
Number of chassis fan connectors

2
EPS power connector (8-pin)

Yes
PS/2 ports quantity

1
Motherboard form factor

micro ATX
BIOS type

UEFI AMI
Clear CMOS jumper

Yes
Width

244 mm
Number of HDDs supported

4
RAID levels

0, 1, 5, 10
USB 3.2 Gen 2 (3.1 Gen 2) connectors

1
Front panel connector

Yes
RGB LED pin header

Yes
Ethernet interface type

2.5 Gigabit Ethernet
Motherboard chipset family

Intel
Power source type

ATX
Processor socket

LGA 1700
Supported processor sockets

LGA 1700
Supported storage drive interfaces

M.2, PCI Express 4.0, SATA III
Cables included

SATA
ECC сompatibility

Non-ECC
Number of storage drives supported

6
S/PDIF out connector

Yes
Number of COM connectors

1
BIOS memory size

128 Mbit
Headphone outputs

3
Chassis intrusion connector

Yes
Height

68 mm
Supported memory clock speeds

2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,4000,4266,4400,4600,4800,5000,5333 MHz
Producator

ASUS
Garantie

36
