Stoc epuizat
1.306,99lei
Stoc epuizat

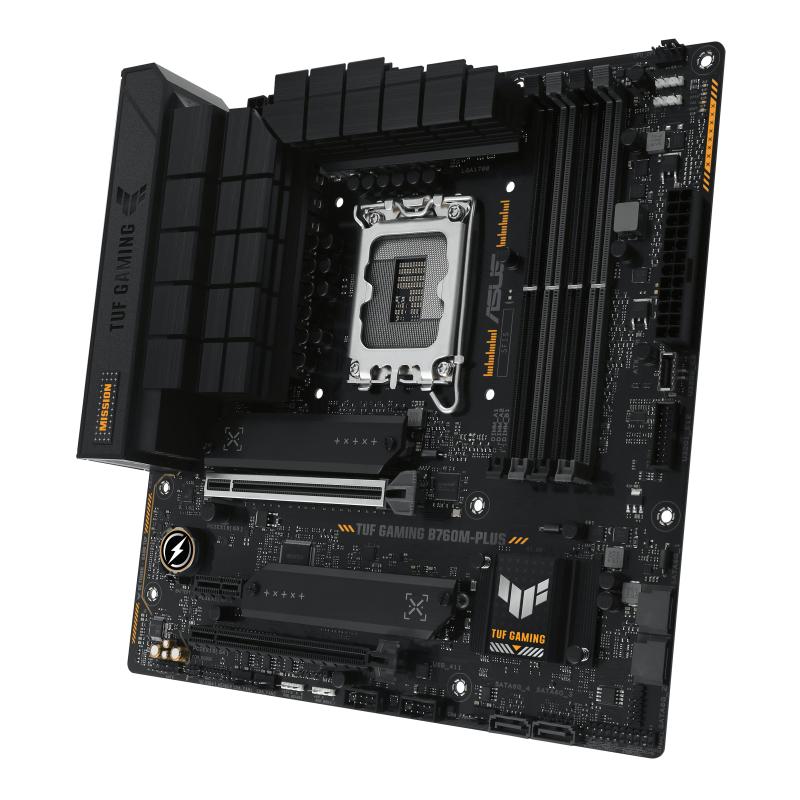

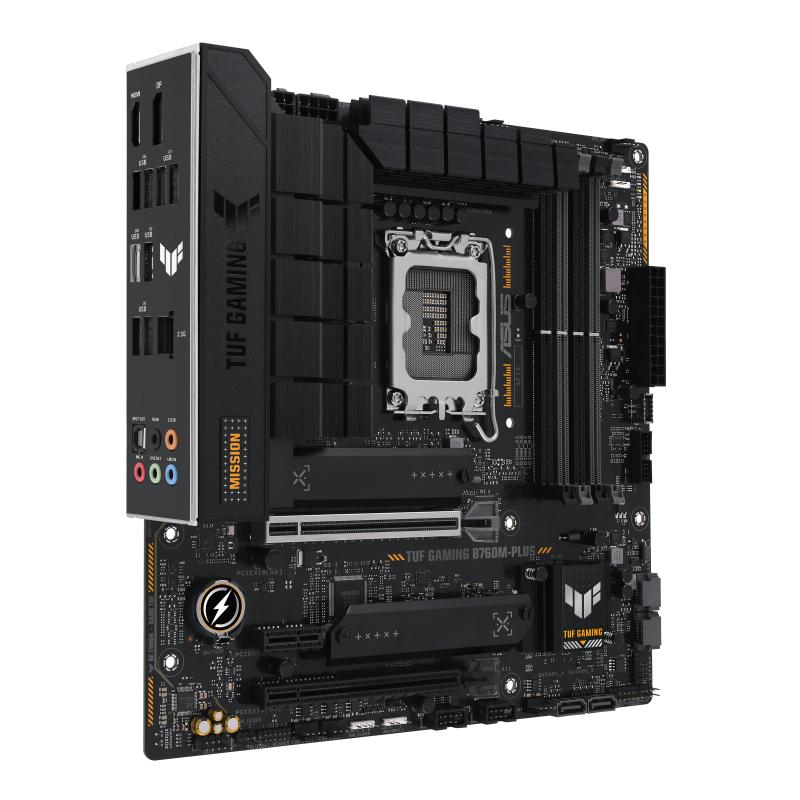

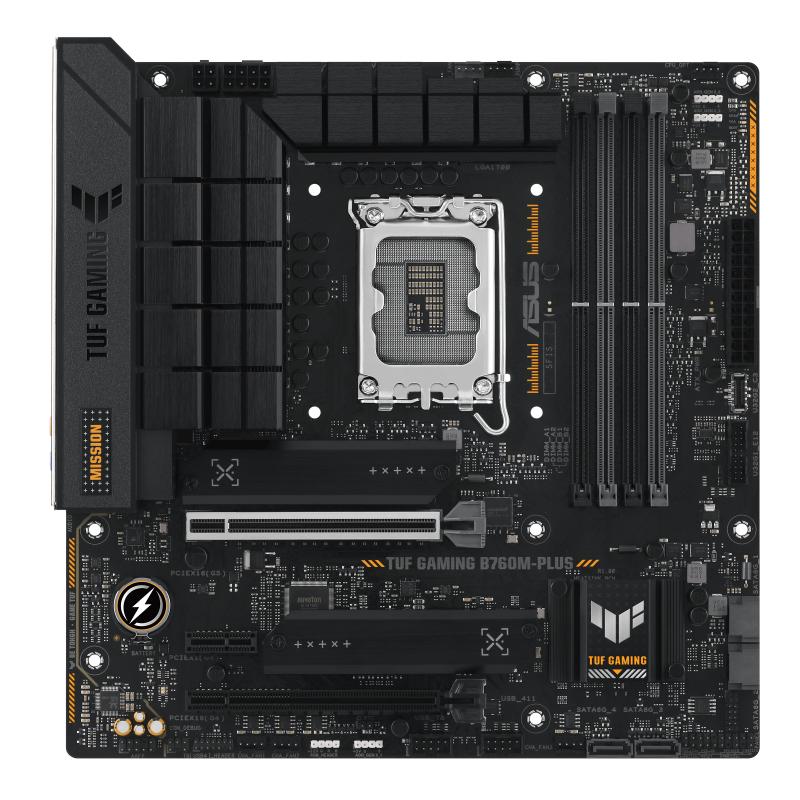

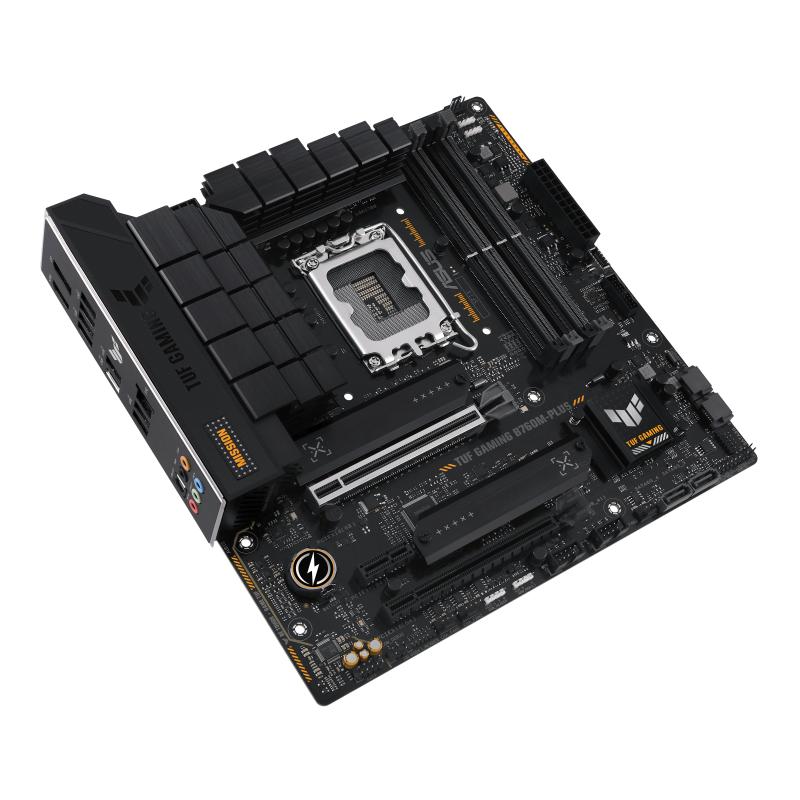

Placa de baza Asus TUF GAMING B760M-PLUS LGA1700, 4x DDR5, 1x DisplayPort, 1x HDMI, 2x PCIe x16, 1x PCIe x1, 2x M.2, 4x SATA 6Gbps, 2.5Gbps, mATX
| PCI | 0 |
|---|---|
| Serial-or-Paralel | No/No |
| Video-Connection | HDMI/DP |
| Wi-Fi | No |
| Onboard-CPU | No |
| RAID support | Yes |
| Component for | PC |
| Windows operating systems supported | Windows 10, Windows 11 |
| DisplayPort version | 1.4 |
| Memory channels | Dual-channel |
| Processor manufacturer | Intel |
| Ethernet LAN | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.1 |
| Maximum internal memory | 128 GB |
| Microphone in | Yes |
| USB 2.0 ports quantity | 2 |
| Depth | 244 mm |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Audio output channels | 7.1 channels |
| Line-in | Yes |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Supported storage drive types | HDD & SSD |
| Number of M.2 (M) slots | 2 |
| Cooling type | Passive |
| S/PDIF out port | Yes |
| Package depth | 275 mm |
| Package weight | 1.57 kg |
| DisplayPorts quantity | 1 |
| Parallel processing technology support | Not supported |
| DVI-D ports quantity | 0 |
| Model Chipset | B760 |
| Gaming | Da |
| Format | Micro-ATX (mATX) |
| Soclu Procesor | Socket 1700 |
| Tip Memorie: | DDR5 |
| Numar sloturi memorie | 4 |
| Memorie maxima | 128 GB |
| Tip slot interfata grafica | PCIe 5.0 x16 |
| Chipset audio integrat | Realtek |
| Canale audio | 7.1 |
| Wireless | Nu |
| BLUETOOTH | Nu |
| USB Type-C | Da |
| HDMI | Da |
| Thunderbolt | Nu |
| Sloturi M.2 | 2 |
| RJ-45 LAN | 1 |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Motherboard form factor | micro ATX |
| BIOS type | UEFI AMI |
| Width | 244 mm |
| Supported memory types | DDR5-SDRAM |
| Number of HDDs supported | 4 |
| RAID levels | 0, 1, 5, 10 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Front panel connector | Yes |
| RGB LED pin header | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Motherboard chipset family | Intel |
| Power source type | ATX |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
| 12V power connector | Yes |
| Cables included | SATA |
| ECC сompatibility | Non-ECC |
| Number of storage drives supported | 6 |
| Motherboard chipset | Intel B760 |
| BIOS memory size | 128 Mbit |
| Thunderbolt headers | 1 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz |
| Number of chassis fan connectors | 3 |
| PCI Express x1 (Gen 4.x) slots | 1 |
| Package width | 275 mm |
| Package height | 67.5 mm |
| Producator | ASUS |
| Garantie | 36 |
