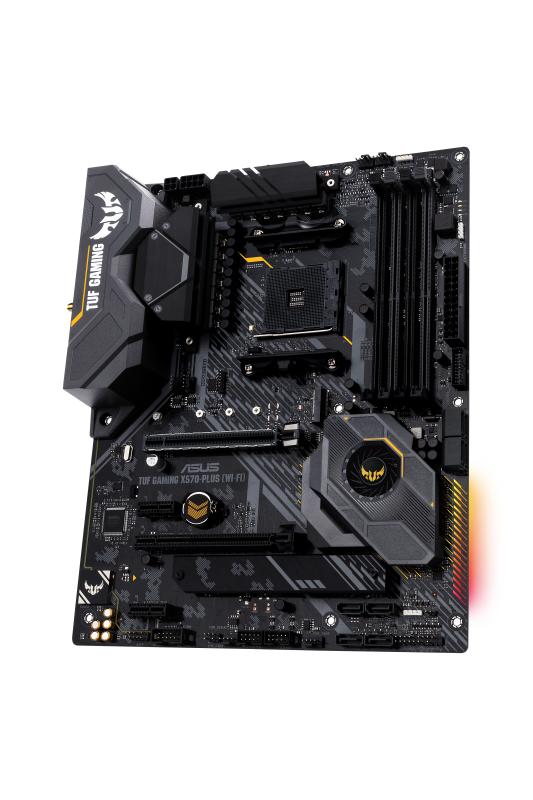

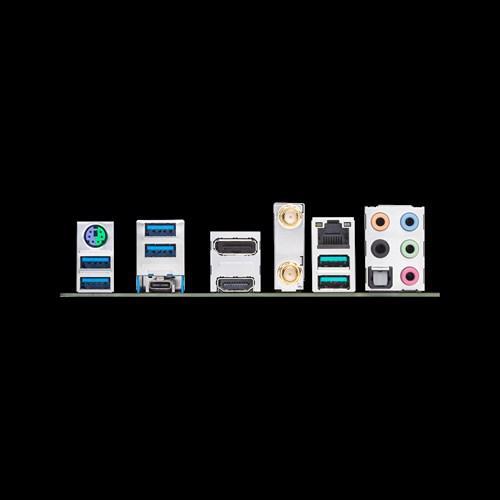

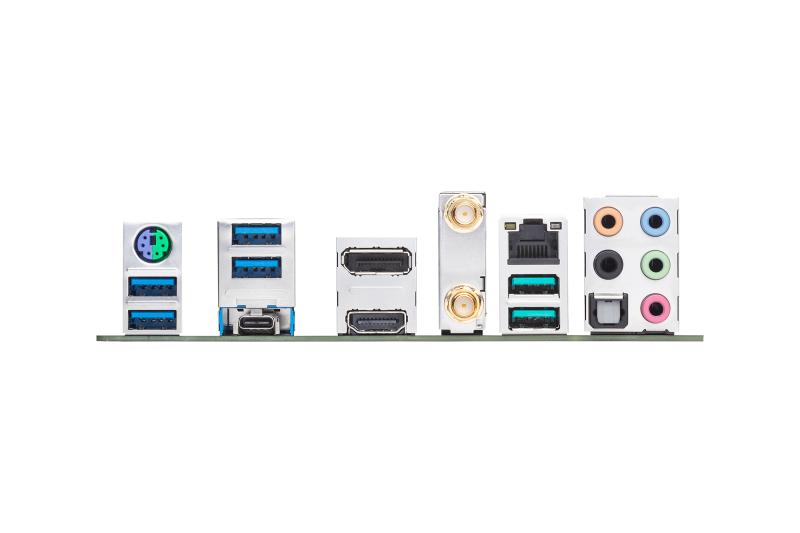

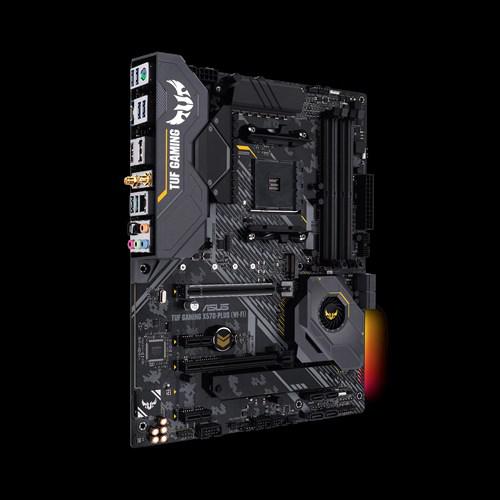

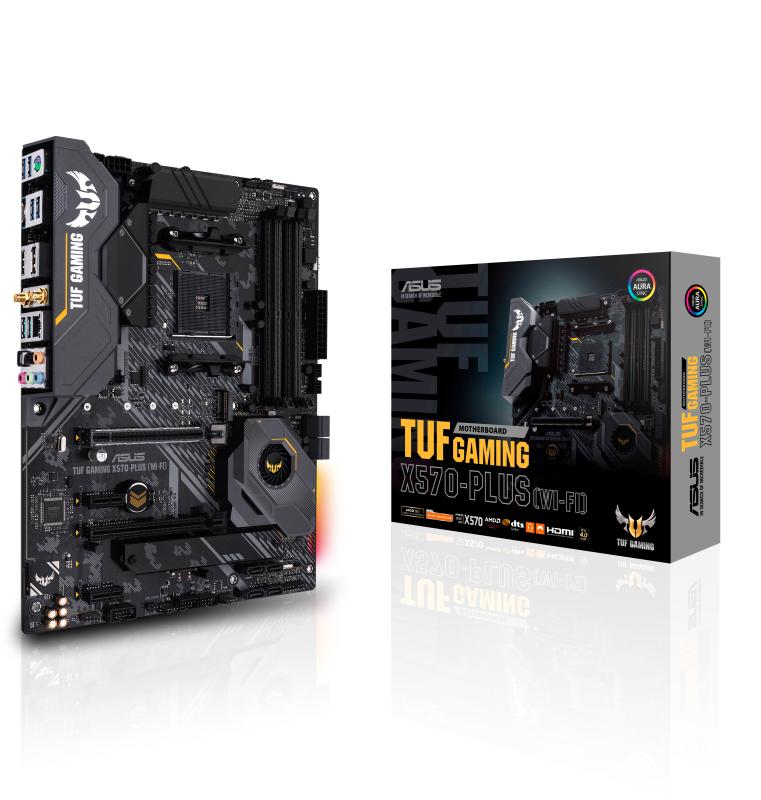

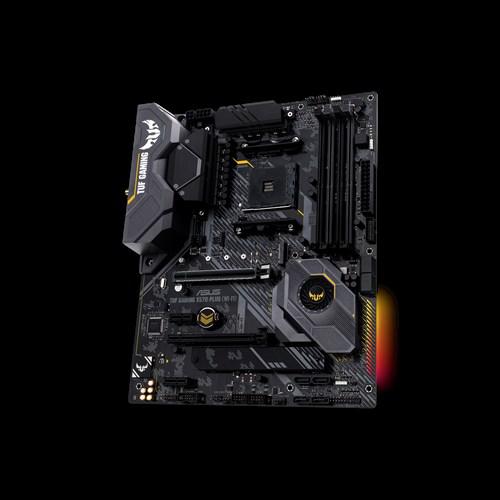

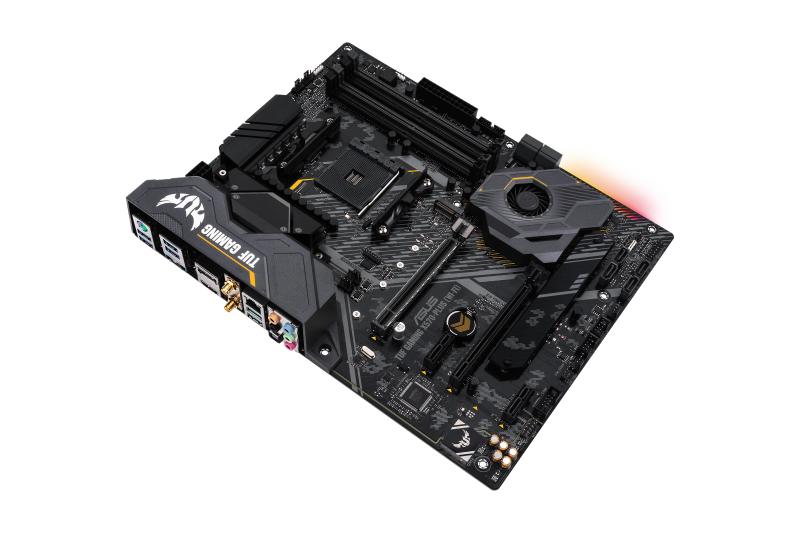

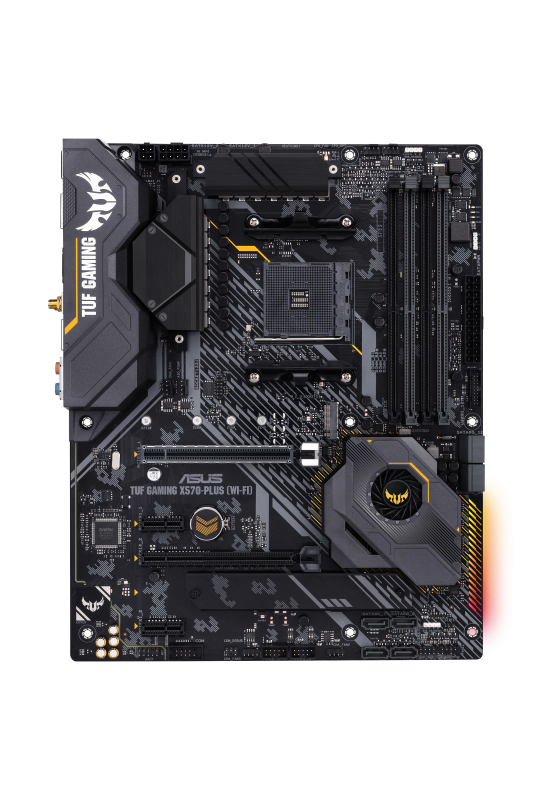

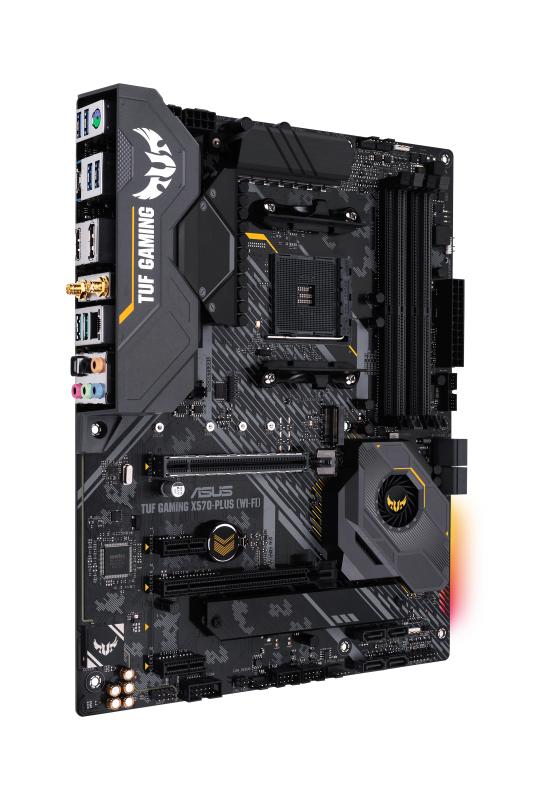

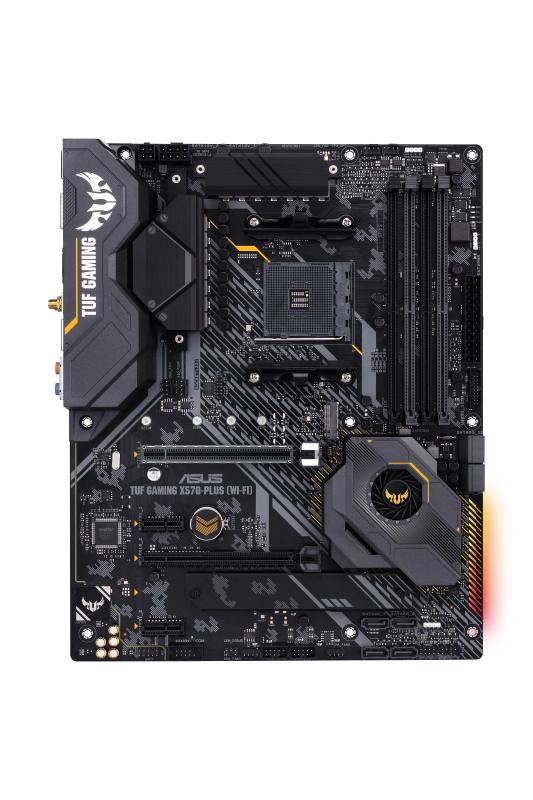

Placa de baza Asus TUF GAMING X570-PLUS WI-FI, Socket AM4
Placa de baza Asus TUF GAMING X570-PLUS WI-FI, Socket AM4 - imagine 3
Placa de baza Asus TUF GAMING X570-PLUS WI-FI, Socket AM4 - imagine 4
Placa de baza Asus TUF GAMING X570-PLUS WI-FI, Socket AM4 - imagine 5
Placa de baza Asus TUF GAMING X570-PLUS WI-FI, Socket AM4 - imagine 6
Placa de baza Asus TUF GAMING X570-PLUS WI-FI, Socket AM4 - imagine 7
Placa de baza Asus TUF GAMING X570-PLUS WI-FI, Socket AM4 - imagine 8
Placa de baza Asus TUF GAMING X570-PLUS WI-FI, Socket AM4 - imagine 9
Placa de baza Asus TUF GAMING X570-PLUS WI-FI, Socket AM4 - imagine 10
Placa de baza Asus TUF GAMING X570-PLUS WI-FI, Socket AM4 - imagine 11
Placa de baza Asus TUF GAMING X570-PLUS WI-FI, Socket AM4 - imagine 12
Placa de baza Asus TUF GAMING X570-PLUS WI-FI, Socket AM4 - imagine 13

Placa de baza Asus TUF GAMING X570-PLUS WI-FI, Socket AM4

SKU: TUF X570-PLUS WIFI
Producator: Asus
Disponibilitate:

Stoc epuizat
Add to wishlist
Compare

1.716,99lei

Stoc epuizat

Placa de baza Asus AMD AM4 TUF GAMING X570-PLUS WI-FI, AMD X570Chipset, 4 x DIMM,Max. 128GB, DDR4 MHz Un-buffered Memory, 2x PCIe 4.0 x16, 1x PCIe x16,1x PCIe 3.0/2.0 x16, 2x PCIe 4.0 x1, 1x M2 Socket 3, 8x SATA 6Gb/s,Bluetooth 5.0, 5x USB 3.2, 4x USB 2.0, 1x DisplayPort, 1x HDMI, ATXForm.

SKU: TUF X570-PLUS WIFI Categorie:
PCI

0
Serial-or-Paralel

No/No
Video-Connection

HDMI/DP
Wi-Fi

Yes
CPU încorporat

Yes
Product colour

Black
RAID support

Yes
Component for

PC
Wake-on-LAN ready

Yes
Quick installation guide

Yes
Weight

900 g
Top Wi-Fi standard

Wi-Fi 5 (802.11ac)
Ethernet interface type

Gigabit Ethernet
Harmonized System (HS) code

84733020
Memory channels

Dual-channel
Bluetooth version

5.0
Ethernet LAN

Yes
HDMI ports quantity

1
Ethernet LAN (RJ-45) ports

1
Maximum internal memory

128 GB
Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Headphone outputs

1
Processor manufacturer

AMD
Microphone in

Yes
Width

305 mm
Depth

244 mm
HDMI version

1.4b
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

2
USB 2.0 ports quantity

0
USB4 Gen 3x2 ports quantity

0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4
Audio output channels

7.1 channels
Line-in

Yes
On-board graphics card

No
Supported memory types

DDR4-SDRAM
Number of M.2 (M) slots

2
Processor socket

Socket AM4
S/PDIF out port

Yes
PCI Express x16 (Gen 4.x) slots

2
USB 3.2 Gen 2x2 Type-C ports quantity

0
Digital audio optical out

1
DisplayPorts quantity

1
VGA (D-Sub) ports quantity

0
USB4 Gen 2x2 ports quantity

0
DVI-D ports quantity

0
DVI-I ports quantity

0
Maximum resolution

4096 x 2160 pixels
Drivers included

Yes
Parallel processing technology support

CrossFireX
Model Chipset

X570
Gaming

Da
Format

ATX
Soclu Procesor

Socket AM4
Tip Memorie:

DDR4
Numar sloturi memorie

4
Memorie maxima

128 GB
Tip slot interfata grafica

PCIe 4.0 x16
Chipset audio integrat

Realtek
Canale audio

7.1
Wireless

Da
BLUETOOTH

Da
USB Type-C

Da
HDMI

Da
Thunderbolt

Nu
Sloturi M.2

2
RJ-45 LAN

1
Number of memory slots

4
Memory slots type

DIMM
Unbuffered memory

Yes
USB 2.0 connectors

2
USB 3.2 Gen 1 (3.1 Gen 1) connectors

1
USB 3.2 Gen 2 (3.1 Gen 2) connectors

0
Number of SATA II connectors

0
Number of SATA connectors

0
Number of Parallel ATA connectors

0
Front panel audio connector

Yes
ATX Power connector (24-pin)

Yes
CPU fan connector

Yes
PS/2 ports quantity

1
Motherboard chipset family

AMD
BIOS type

UEFI AMI
BIOS memory size

256 Mbit
Clear CMOS jumper

Yes
mSATA ports quantity

0
Front panel connector

Yes
TPM connector

Yes
RGB LED pin header

Yes
Motherboard form factor

ATX
Maximum number of SMP processors

1
12V power connector

Yes
Cables included

SATA
Number of COM connectors

1
PCI Express x1 slots

0
PCI Express x1 (Gen 2.x) slots

0
PCI Express x1 (Gen 3.x) slots

0
PCI Express x4 slots

0
PCI Express x4 (Gen 1.x) slots

0
PCI Express x4 (Gen 2.x) slots

0
PCI Express x4 (Gen 4.x) slots

0
PCI Express x8 slots

0
PCI Express x8 (Gen 1.x) slots

0
PCI Express x16 slots

0
PCI Express x16 (Gen 2.x) slots

0
PCI Express x16 (Gen 3.x) slots

0
PCI Express x16 (Gen 3.x) @ dual x8/x8 mode slots

0
PCI slots

0
PCI-X slots

0
Mini PCI Express slots

0
Mini PCI Express (Gen 1.x) slots

0
Mini PCI Express (Gen 2.x) slots

0
Mini PCI Express slot (full length)

0
Mini PCI Express slot (half-length)

0
Supported storage drive interfaces

SATA III
RAID levels

0, 1, 10
eSATA ports quantity

0
Firewire (IEEE 1394) ports

0
Number of SATA III connectors

8
Number of chassis fan connectors

3
PCI Express x1 (Gen 4.x) slots

2
Supported processor sockets

Socket AM4
Height

68 mm
Motherboard chipset

AMD X570
USB 3.2 Gen 2x2 connectors

0
Number of EATX power connectors

1
Compatible processor series

AMD Ryzen 2000 Series, AMD Ryzen 3000 Series
LAN controller

Realtek L8200A
Audio Chip

Realtek ALC S1200A
PCI Express x16 (Gen 5.x) slots

0
PCI Express OCuLink connectors (NVMe support)

0
ACPI version

6.2
Producator

ASUS
Garantie

36
