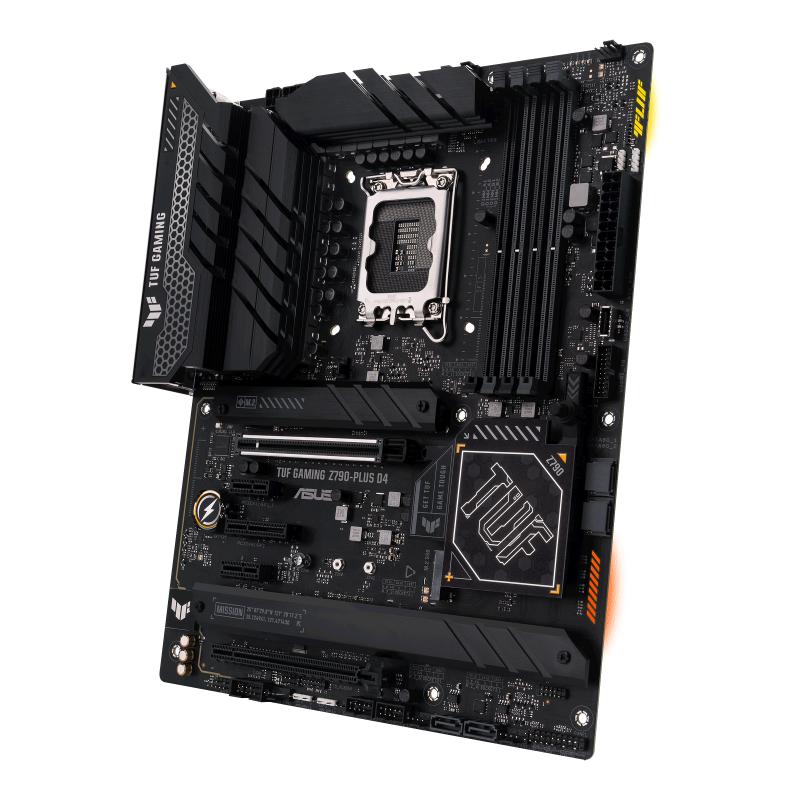

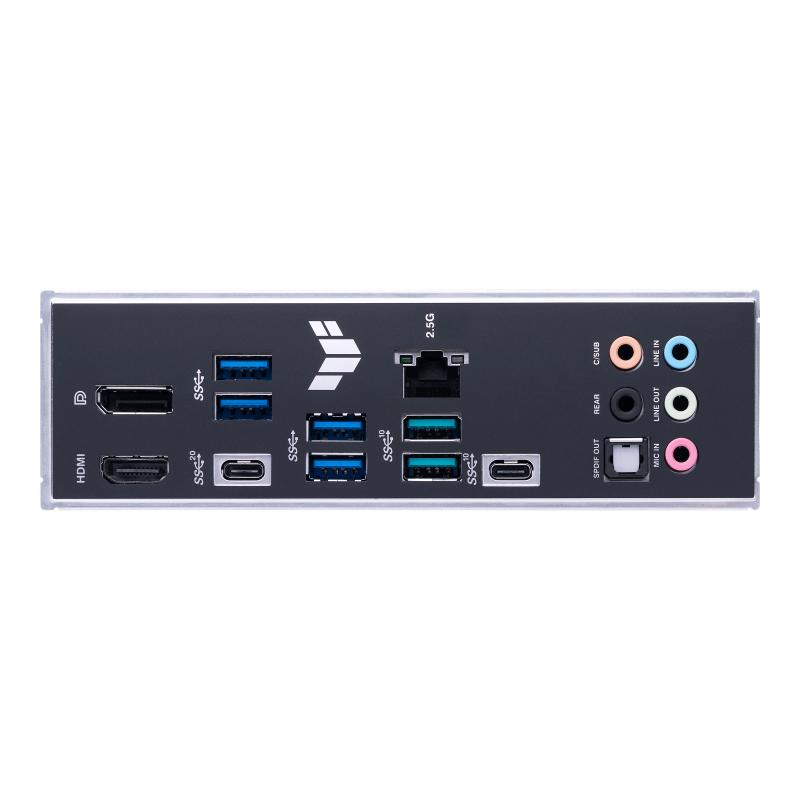

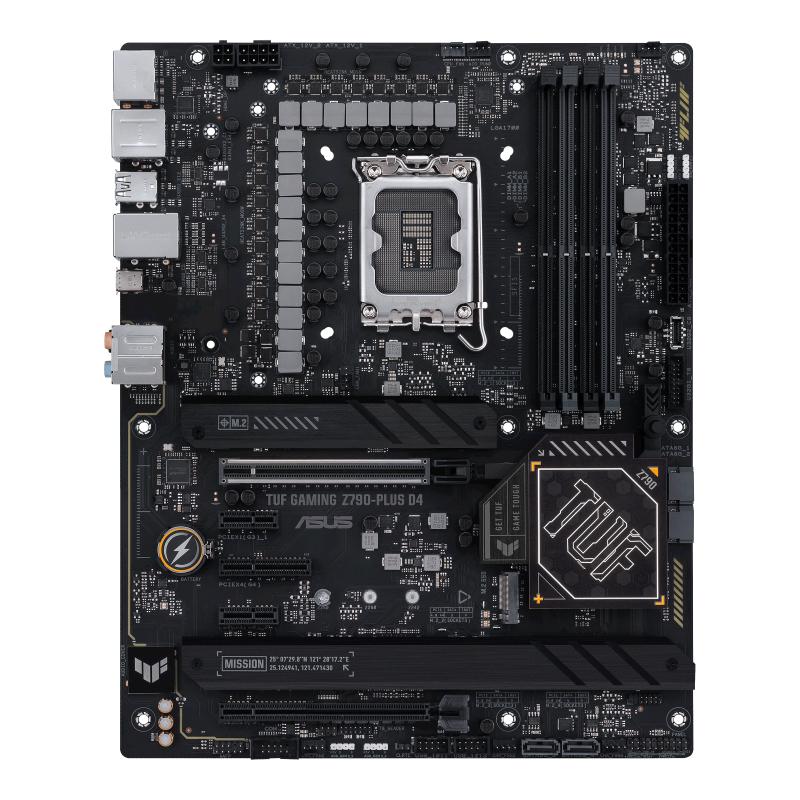

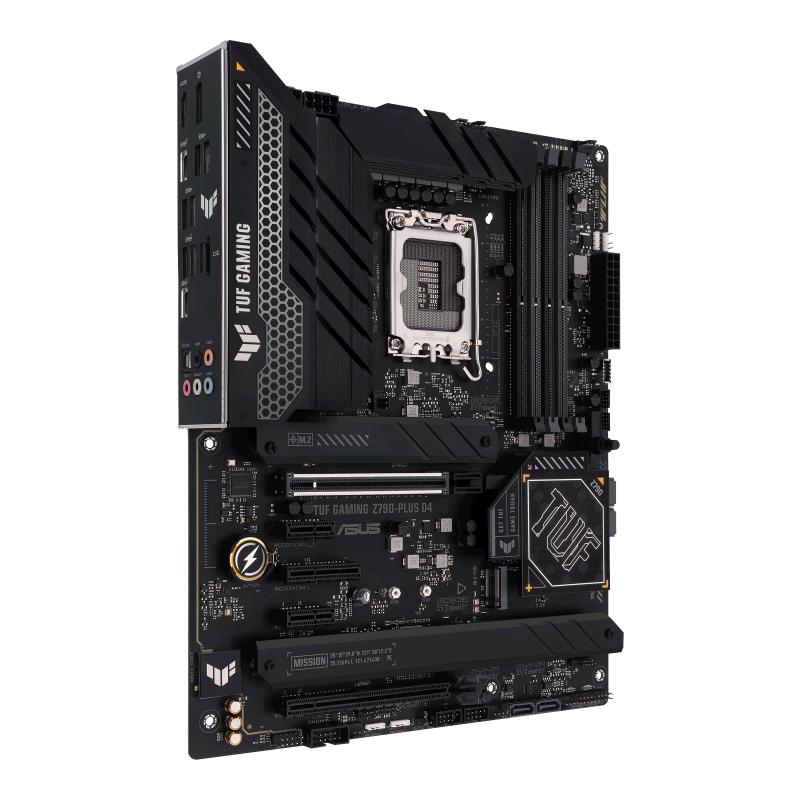

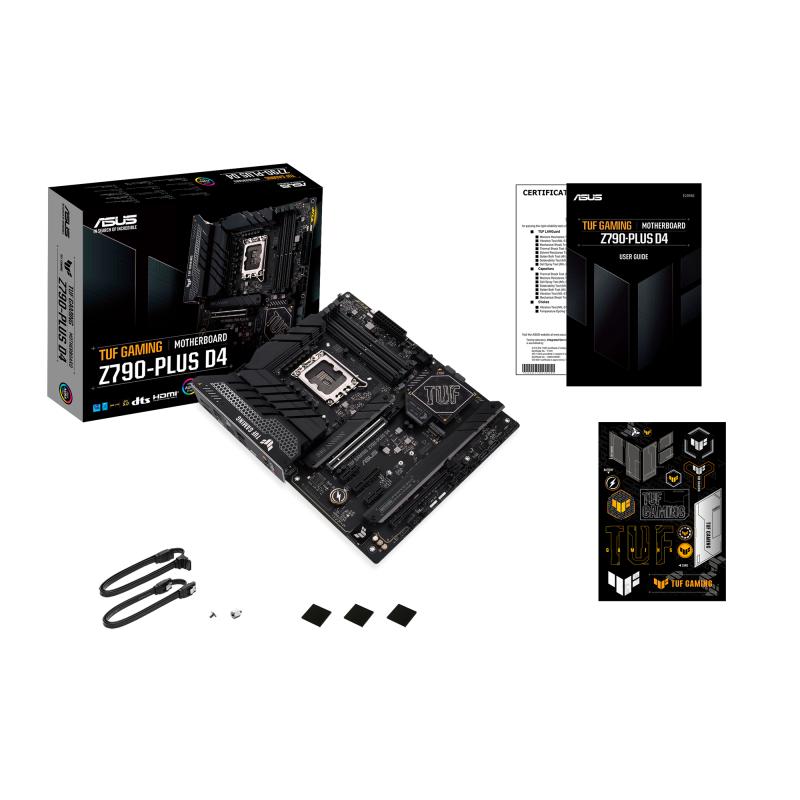

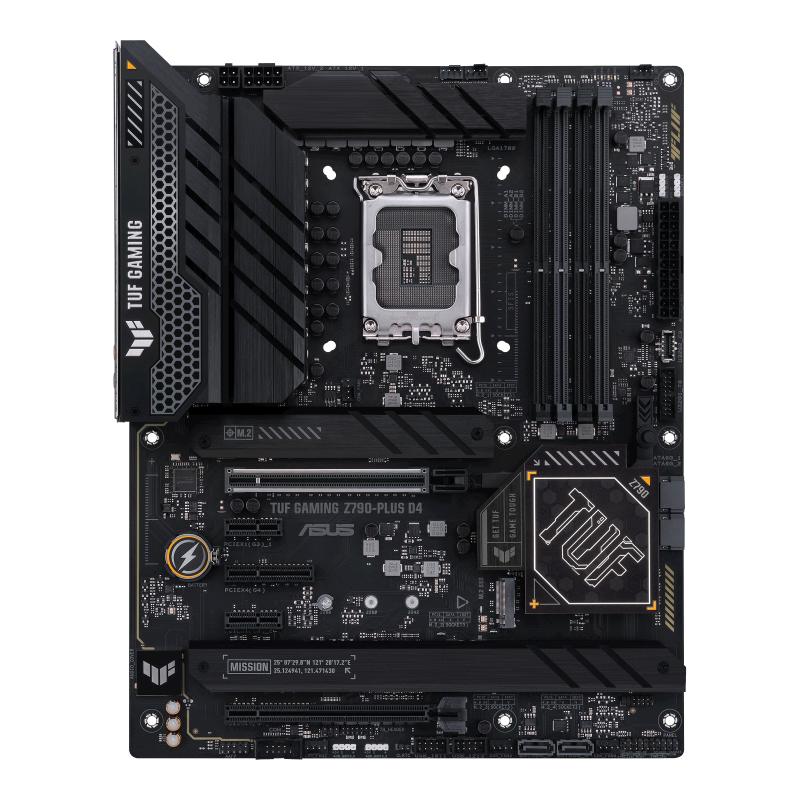

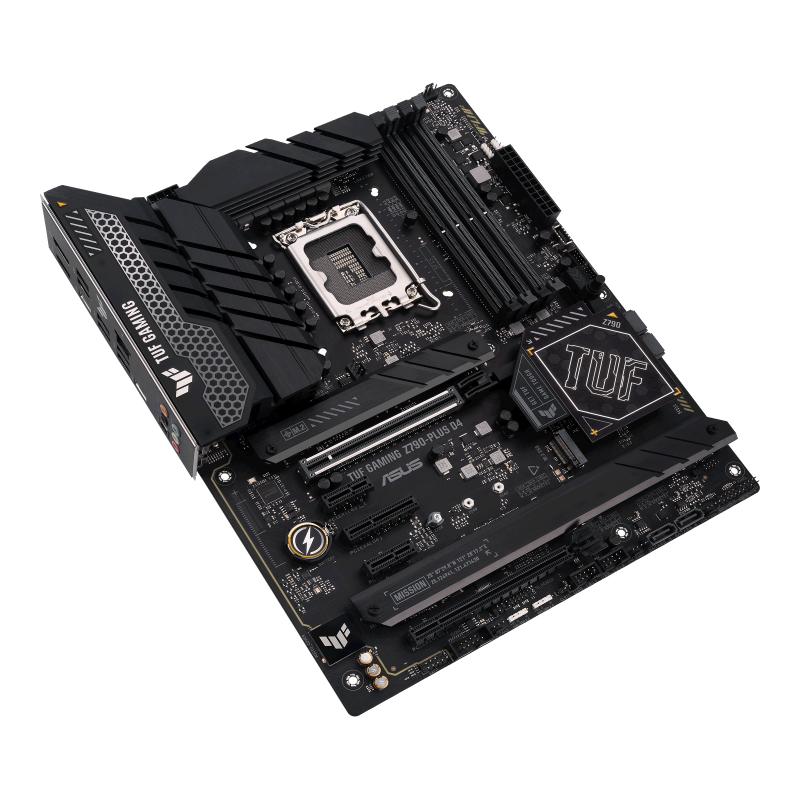

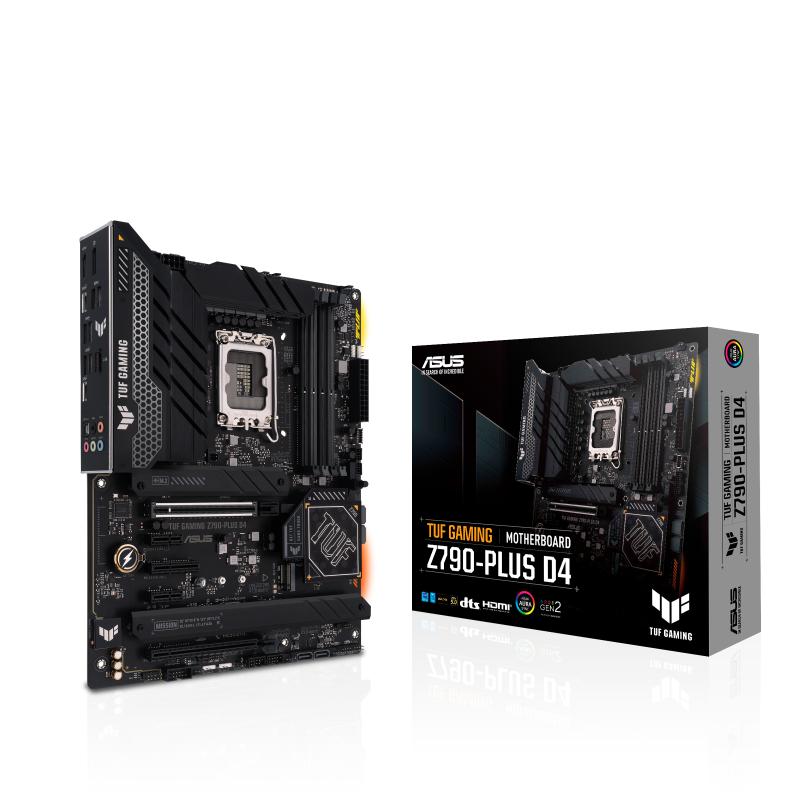

Placa de baza Asus TUF Z790-PLUS D4 LGA 1700
Placa de baza Asus TUF Z790-PLUS D4 LGA 1700 - imagine 3
Placa de baza Asus TUF Z790-PLUS D4 LGA 1700 - imagine 4
Placa de baza Asus TUF Z790-PLUS D4 LGA 1700 - imagine 5
Placa de baza Asus TUF Z790-PLUS D4 LGA 1700 - imagine 6
Placa de baza Asus TUF Z790-PLUS D4 LGA 1700 - imagine 7
Placa de baza Asus TUF Z790-PLUS D4 LGA 1700 - imagine 8
Placa de baza Asus TUF Z790-PLUS D4 LGA 1700 - imagine 9
Placa de baza Asus TUF Z790-PLUS D4 LGA 1700 - imagine 10
Placa de baza Asus TUF Z790-PLUS D4 LGA 1700 - imagine 11
Placa de baza Asus TUF Z790-PLUS D4 LGA 1700 - imagine 12
Placa de baza Asus TUF Z790-PLUS D4 LGA 1700 - imagine 13

Placa de baza Asus TUF Z790-PLUS D4 LGA 1700

SKU: TUF Z790-PLUS D4
Producator: Asus
Disponibilitate:

Stoc epuizat
Add to wishlist
Compare

2.277,99lei

Stoc epuizat

Placa de baza Asus TUF Z790-PLUS D4 LGA 1700, 4x DDR4 DIMM dual channel, 2x PCI Express x16, 2x PCIe x1, 1x PCI 1x, 4x M.2, 4x SATA 6Gb/s, 8x USB, ATX

SKU: TUF Z790-PLUS D4 Categorie:
PCI

1
Serial-or-Paralel

No/No
Video-Connection

HDMI/DP
Wi-Fi

No
Onboard-CPU

No
RAID support

Yes
Component for

PC
DisplayPort version

1.4
User guide

Yes
Memory channels

Dual-channel
Processor manufacturer

Intel
Ethernet LAN

Yes
HDMI ports quantity

1
Ethernet LAN (RJ-45) ports

1
HDMI version

2.1
Maximum internal memory

128 GB
Headphone outputs

1
Microphone in

Yes
Width

305 mm
Depth

244 mm
USB 3.2 Gen 2x2 Type-C ports quantity

1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

2
Weight

1.33 kg
USB 2.0 ports quantity

0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4
PCI Express x1 (Gen 3.x) slots

2
Audio output channels

7.1 channels
Line-in

Yes
PCI Express x16 (Gen 5.x) slots

1
PCI Express x4 (Gen 4.x) slots

1
PCI Express x16 (Gen 4.x) slots

1
Supported storage drive types

HDD & SSD
Supported memory types

DDR4-SDRAM
S/PDIF out port

Yes
DisplayPorts quantity

1
VGA (D-Sub) ports quantity

0
Parallel processing technology support

Not supported
DVI-D ports quantity

0
Windows operating systems supported

Windows 10 x64, Windows 11 x64
Drivers included

Yes
Model Chipset

Z790
Gaming

Da
Format

ATX
Soclu Procesor

Socket 1700
Tip Memorie:

DDR4
Numar sloturi memorie

4
Memorie maxima

128 GB
Tip slot interfata grafica

PCIe 5.0 x16
Chipset audio integrat

Realtek
Canale audio

7.1
Wireless

Nu
BLUETOOTH

Nu
USB Type-C

Da
HDMI

Da
Thunderbolt

Nu
Sloturi M.2

4
RJ-45 LAN

1
Number of memory slots

4
Memory slots type

DIMM
Unbuffered memory

Yes
Supported storage drive interfaces

M.2, SATA III
USB 2.0 connectors

2
USB 3.2 Gen 1 (3.1 Gen 1) connectors

1
Number of SATA III connectors

4
Front panel audio connector

Yes
ATX Power connector (24-pin)

Yes
CPU fan connector

Yes
EPS power connector (8-pin)

Yes
BIOS type

UEFI AMI
RAID levels

0, 1, 5, 10
USB 3.2 Gen 2 (3.1 Gen 2) connectors

1
Number of chassis fan connectors

4
RGB LED pin header

Yes
Ethernet interface type

2.5 Gigabit Ethernet
Motherboard form factor

ATX
Motherboard chipset family

Intel
Power source type

ATX
Processor socket

LGA 1700
Supported processor sockets

LGA 1700
12V power connector

Yes
Cables included

SATA
ECC сompatibility

Non-ECC
Number of COM connectors

1
Number of storage drives supported

8
Thunderbolt headers

1
Number of M.2 (M) slots

4
Motherboard chipset

Intel Z790
Audio Chip

Realtek S1220A
BIOS memory size

192 Mbit
Package width

340 mm
Supported memory clock speeds

5333 MHz
Height

49 mm
Package depth

70 mm
Package height

275 mm
Package weight

2.14 kg
Producator

ASUS
Garantie

36
