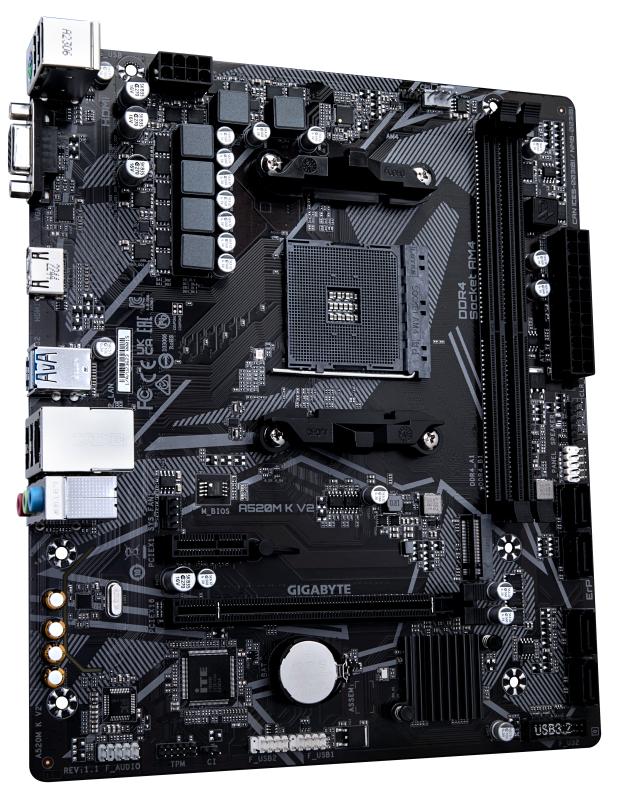

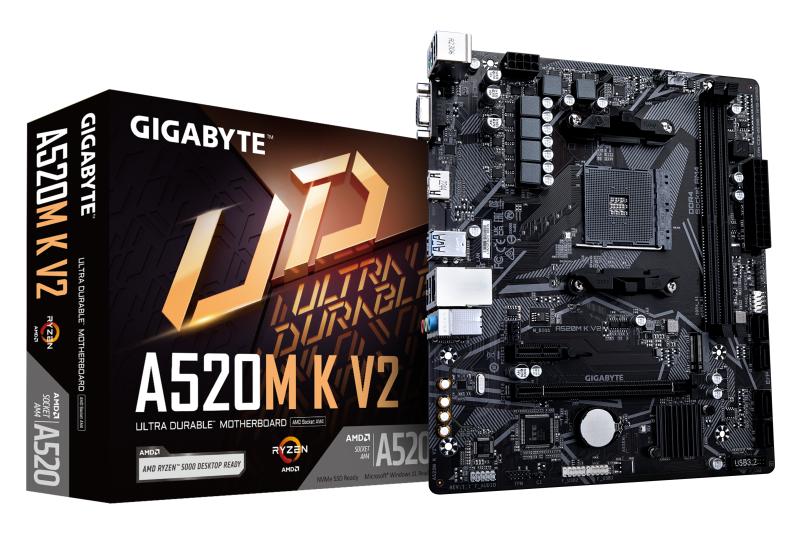

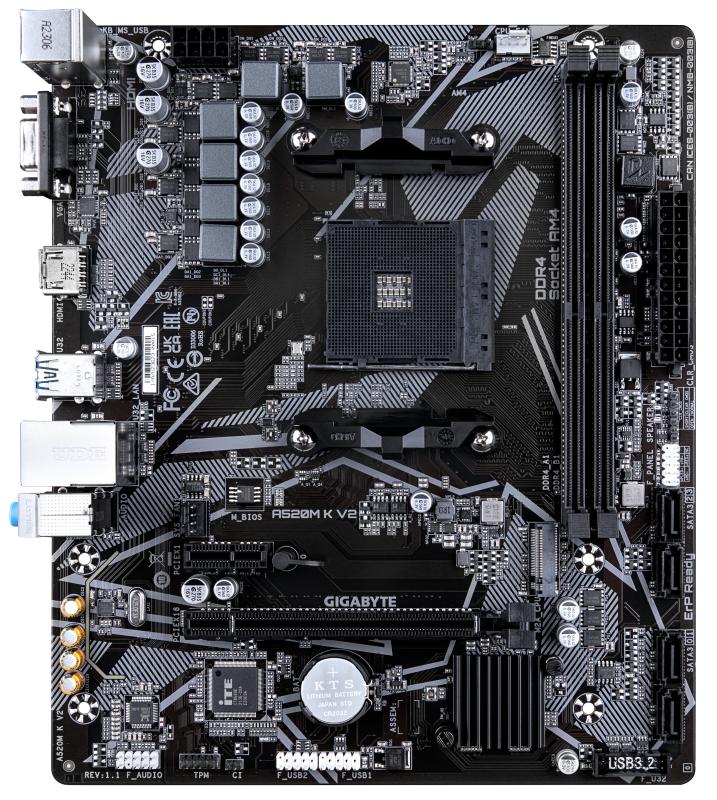

Placa de baza Gigabyte A520M K V2 AM4
Placa de baza Gigabyte A520M K V2 AM4 - imagine 3
Placa de baza Gigabyte A520M K V2 AM4 - imagine 4
Placa de baza Gigabyte A520M K V2 AM4 - imagine 5
Placa de baza Gigabyte A520M K V2 AM4 - imagine 6
Placa de baza Gigabyte A520M K V2 AM4 - imagine 7
Placa de baza Gigabyte A520M K V2 AM4 - imagine 8
Placa de baza Gigabyte A520M K V2 AM4 - imagine 9
Placa de baza Gigabyte A520M K V2 AM4 - imagine 10

Placa de baza Gigabyte A520M K V2 AM4

SKU: A520M K V2
Producator: Gigabyte
Disponibilitate:

8 în stoc
Add to wishlist
Compare

297,99lei 425,98lei

8 în stoc

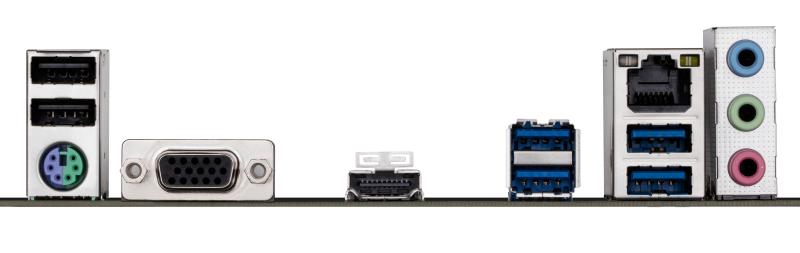

Placa de baza Gigabyte A520M K V2 AM4, 2x DDR4, 1x HDMI, 1x D-Sub, 1x PCIe x16, 1x PCIe x1, 1x M.2, 4x SATA 6Gbps, LAN 1 Gbps, mATX

SKU: A520M K V2 Categorie:
PCI

0
Serial-or-Paralel

No/No
Video-Connection

VGA/HDMI
Wi-Fi

No
Onboard-CPU

No
Country of origin

China
RAID support

Yes
Component for

PC
Package width

265 mm
USB connector type

USB Type-A
Ethernet interface type

Gigabit Ethernet
Package height

52 mm
Memory channels

Dual-channel
Maximum internal memory

64 GB
Ethernet LAN

Yes
HDMI ports quantity

1
Ethernet LAN (RJ-45) ports

1
HDMI version

2.1
Processor manufacturer

AMD
Microphone in

Yes
USB 2.0 ports quantity

2
Products per shipping (inner) case

1 pc(s)
Batteries included

Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4
Audio output channels

7.1 channels
PCI Express x16 slots

1
Package depth

235 mm
Number of memory slots

2
Supported storage drive types

HDD & SSD
Supported memory types

DDR4-SDRAM
Processor socket

Socket AM4
Number of M.2 (M) slots

1
VGA (D-Sub) ports quantity

1
PCI Express x1 slots

1
HDCP

Yes
Parallel processing technology support

Not supported
DVI-D ports quantity

0
Maximum resolution

4096 x 2160 pixels
Windows operating systems supported

Windows 10 x64, Windows 11 x64
Model Chipset

A520
Gaming

Nu
Format

Micro-ATX (mATX)
Soclu Procesor

Socket AM4
Tip Memorie:

DDR4
Numar sloturi memorie

2
Memorie maxima

64 GB
Tip slot interfata grafica

PCIe 3.0 x16
Chipset audio integrat

Realtek
Canale audio

7.1
Wireless

Nu
BLUETOOTH

Nu
USB Type-C

Da
HDMI

Da
Thunderbolt

Nu
Sloturi M.2

1
RJ-45 LAN

1
Memory slots type

DIMM
Unbuffered memory

Yes
Supported storage drive interfaces

M.2, SATA III
USB 2.0 connectors

2
USB 3.2 Gen 1 (3.1 Gen 1) connectors

1
USB 3.2 Gen 2 (3.1 Gen 2) connectors

0
Number of SATA III connectors

4
Front panel audio connector

Yes
ATX Power connector (24-pin)

Yes
CPU fan connector

Yes
EPS power connector (8-pin)

Yes
PS/2 ports quantity

1
Motherboard form factor

micro ATX
Motherboard chipset family

AMD
BIOS type

UEFI AMI
Clear CMOS jumper

Yes
ECC сompatibility

ECC & Non-ECC
Front panel connector

Yes
TPM connector

Yes
ACPI version

5.0
Desktop Management Interface (DMI) version

2.7
System Management BIOS (SMBIOS) version

2.7
Battery weight

3 g
Lithium weight per battery

0.07 g
Number of battery cells

1
Battery technology

Lithium-Manganese Dioxide (LiMnO2)
Battery type

CR2032
Height

35 mm
12V power connector

Yes
Cables included

SATA
BIOS memory size

128 Mbit
Headphone outputs

3
Bundled software

Norton Internet Security
RAID levels

0, 1, 10
Chassis intrusion connector

Yes
Motherboard chipset

AMD A520
Number of storage drives supported

5
PC health monitoring

Fan, Temperature, Voltage
Supported processor sockets

Socket AM4
Depth

198 mm
Compatible processor series

AMD Ryzen 3000 Series, AMD Ryzen 5000 Series
Supported memory clock speeds

5100 MHz
Package weight

675 g
Width

233 mm
Producator

GIGABYTE
Garantie

36
