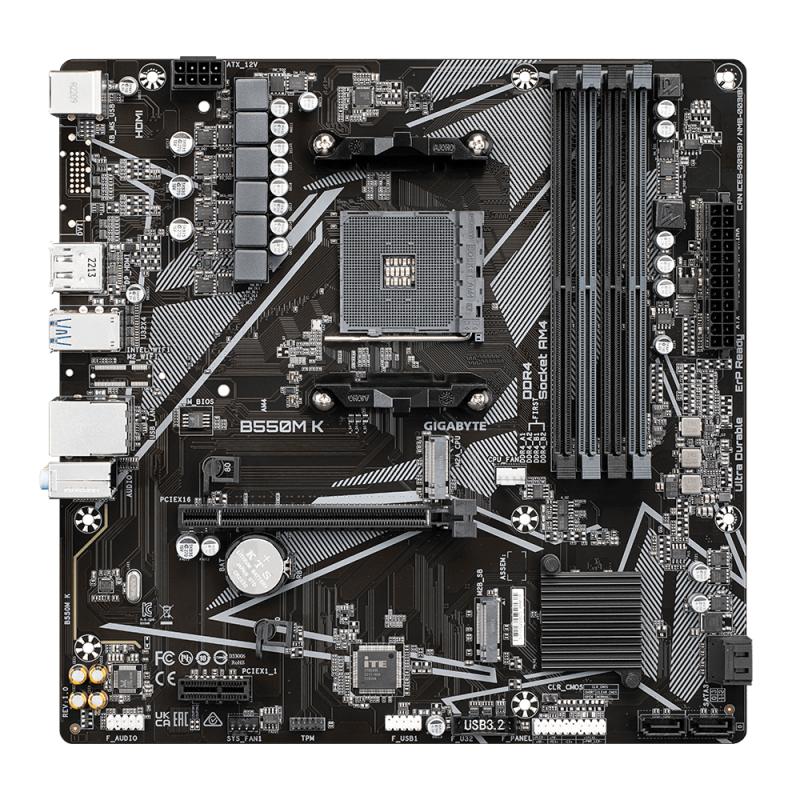

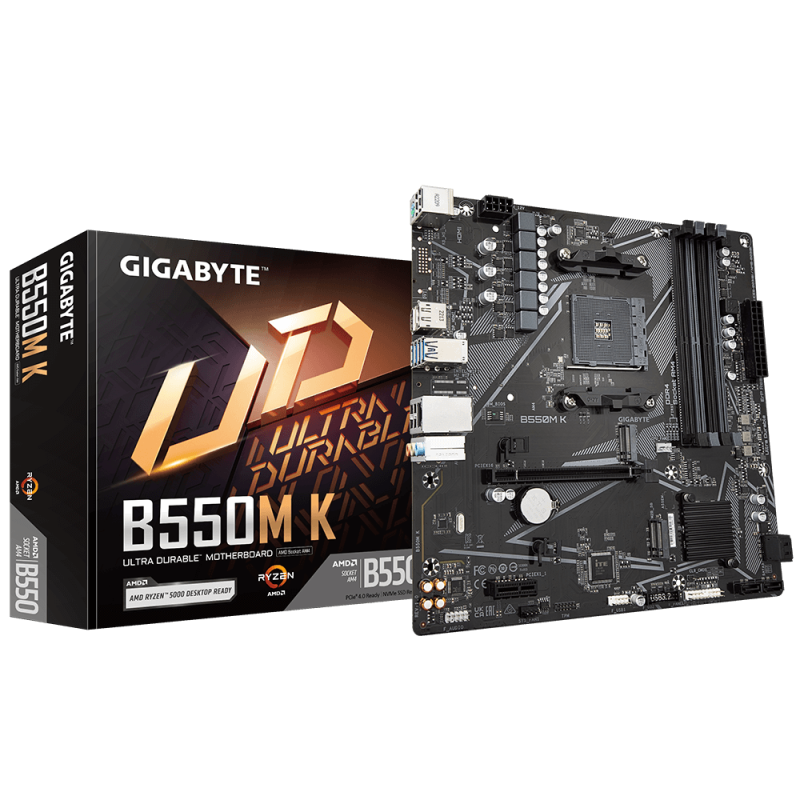

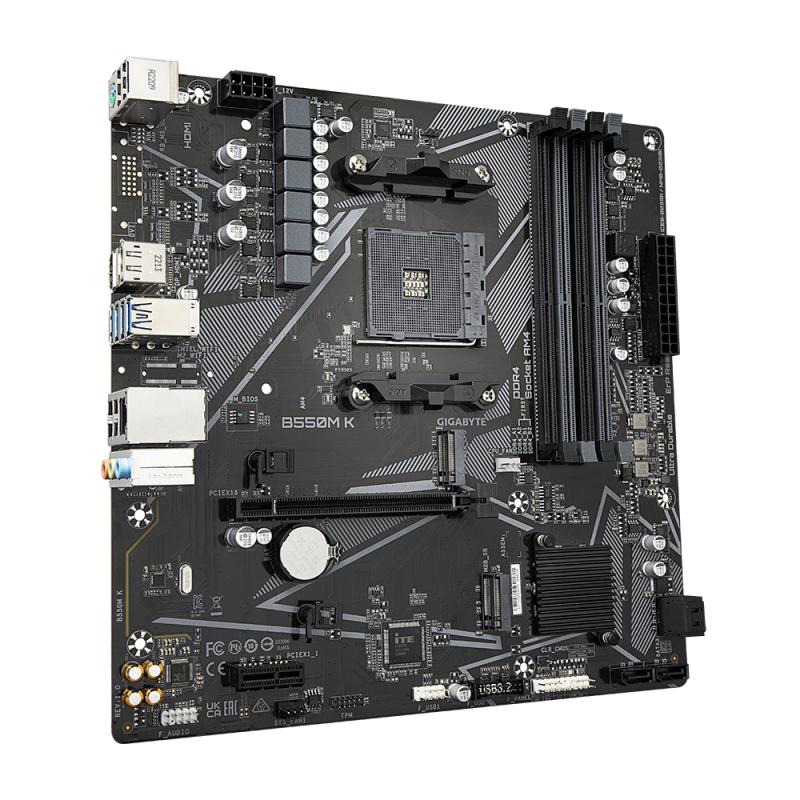

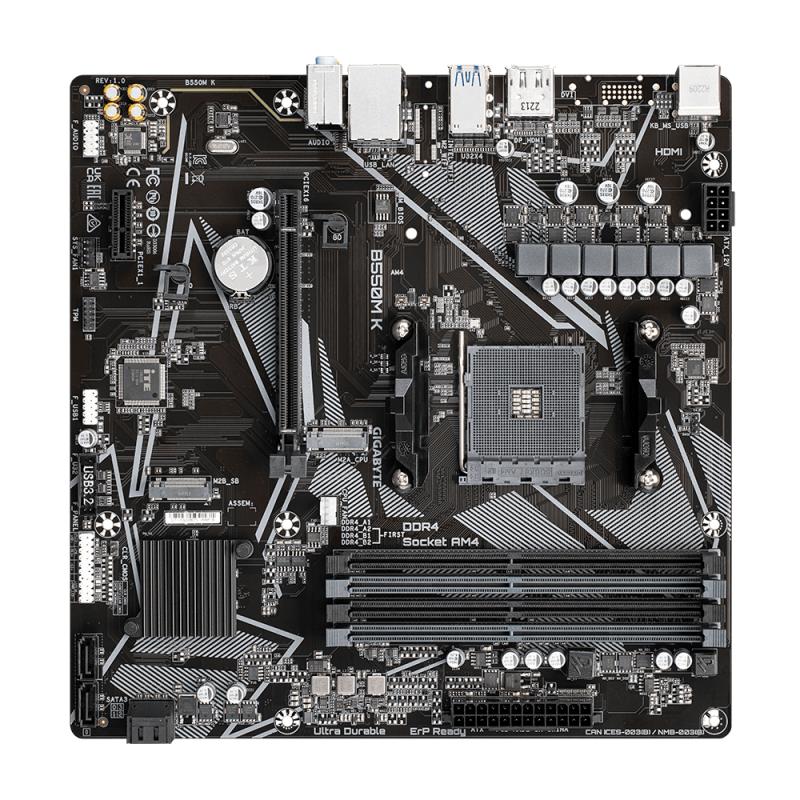

Placa de baza Gigabyte B550M K AM4 DDR4
Placa de baza Gigabyte B550M K AM4 DDR4 - imagine 3
Placa de baza Gigabyte B550M K AM4 DDR4 - imagine 4
Placa de baza Gigabyte B550M K AM4 DDR4 - imagine 5
Placa de baza Gigabyte B550M K AM4 DDR4 - imagine 6
Placa de baza Gigabyte B550M K AM4 DDR4 - imagine 7
Placa de baza Gigabyte B550M K AM4 DDR4 - imagine 8
Placa de baza Gigabyte B550M K AM4 DDR4 - imagine 9
Placa de baza Gigabyte B550M K AM4 DDR4 - imagine 10
Placa de baza Gigabyte B550M K AM4 DDR4 - imagine 11

Placa de baza Gigabyte B550M K AM4 DDR4

SKU: B550M K
Producator: Gigabyte
Disponibilitate:

92 în stoc
Add to wishlist
Compare

410,99lei 602,98lei

92 în stoc

Placa de baza Gigabyte B550M K AM4, 4x DDR4, 1x DisplayPort, 1x HDMI, 1x PCIe x16, 1x PCIe x1, 2x M.2, 4x SATA 6Gb/s, 1Gbps LAN, mATX

SKU: B550M K Categorie:
PCI

0
Serial-or-Paralel

No/No
Video-Connection

HDMI/DP
Wi-Fi

No
Onboard-CPU

No
Country of origin

China
RAID support

Yes
Component for

PC
Package width

265 mm
Cooling type

Active
DisplayPort version

1.4
Ethernet interface type

Gigabit Ethernet
Package height

54 mm
On-board graphics card

Yes
Ethernet LAN

Yes
HDMI ports quantity

1
Ethernet LAN (RJ-45) ports

1
HDMI version

2.1
Maximum internal memory

128 GB
Headphone outputs

1
Processor manufacturer

AMD
Microphone in

Yes
Depth

244 mm
Products per shipping (inner) case

1 pc(s)
Batteries included

Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0
USB 2.0 ports quantity

4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4
Audio output channels

7.1 channels
Line-in

Yes
PCI Express x16 slots

1
Supported memory types

DDR4-SDRAM
Number of M.2 (M) slots

2
Processor socket

Socket AM4
Graphics card family

AMD
Motherboard chipset

AMD B550
PCI Express x1 slots

1
HDCP

Yes
Product colour

Brown
DisplayPorts quantity

1
VGA (D-Sub) ports quantity

0
Parallel processing technology support

Not supported
DVI-D ports quantity

0
DirectX version

12.0
Windows operating systems supported

Windows 10 x64, Windows 11 x64
Maximum resolution

5120 x 2880 pixels
Package weight

837 g
Package depth

265 mm
Model Chipset

B550
Gaming

Nu
Format

Micro-ATX (mATX)
Soclu Procesor

Socket AM4
Tip Memorie:

DDR4
Numar sloturi memorie

4
Memorie maxima

128 GB
Tip slot interfata grafica

PCIe 3.0 x16
Chipset audio integrat

Realtek
Canale audio

7.1
Wireless

Nu
BLUETOOTH

Nu
USB Type-C

Da
HDMI

Da
Thunderbolt

Nu
Sloturi M.2

2
RJ-45 LAN

1
Number of memory slots

4
Memory slots type

DIMM
Unbuffered memory

Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors

1
USB 3.2 Gen 2 (3.1 Gen 2) connectors

0
Number of SATA III connectors

4
Front panel audio connector

Yes
ATX Power connector (24-pin)

Yes
CPU fan connector

Yes
EPS power connector (8-pin)

Yes
PS/2 ports quantity

1
Motherboard form factor

micro ATX
Motherboard chipset family

AMD
BIOS type

UEFI AMI
Clear CMOS jumper

Yes
Width

244 mm
ECC сompatibility

ECC & Non-ECC
Front panel connector

Yes
TPM connector

Yes
Power source type

ATX
ACPI version

5.0
Desktop Management Interface (DMI) version

2.7
System Management BIOS (SMBIOS) version

2.7
Battery weight

3 g
Lithium weight per battery

0.07 g
Number of battery cells

1
Battery technology

Lithium-Manganese Dioxide (LiMnO2)
Battery type

CR2032
Height

35 mm
Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software
Total number of SATA connectors

4
12V power connector

Yes
Number of storage drives supported

6
BIOS memory size

128 Mbit
RAID levels

0, 1, 10
USB 2.0 connectors

1
PC health monitoring

Fan, Temperature, Voltage
Supported processor sockets

Socket AM4
Maximum internal memory supported by processor

128 GB
Audio connector

Yes
Supported memory module capacities

1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Supported storage drive interfaces

M.2, SATA
Power fan connector

Yes
Compatible processor series

AMD Ryzen™ 5
Memory channels

Dodeca-channel
Supported memory clock speeds

2133,2400,2667,2933,3200,3400,3466,3600,3733,3866,4000,4133,4266,4400,4600,4733 MHz
Supported storage drive types

SSD
Number of HDDs supported

2
