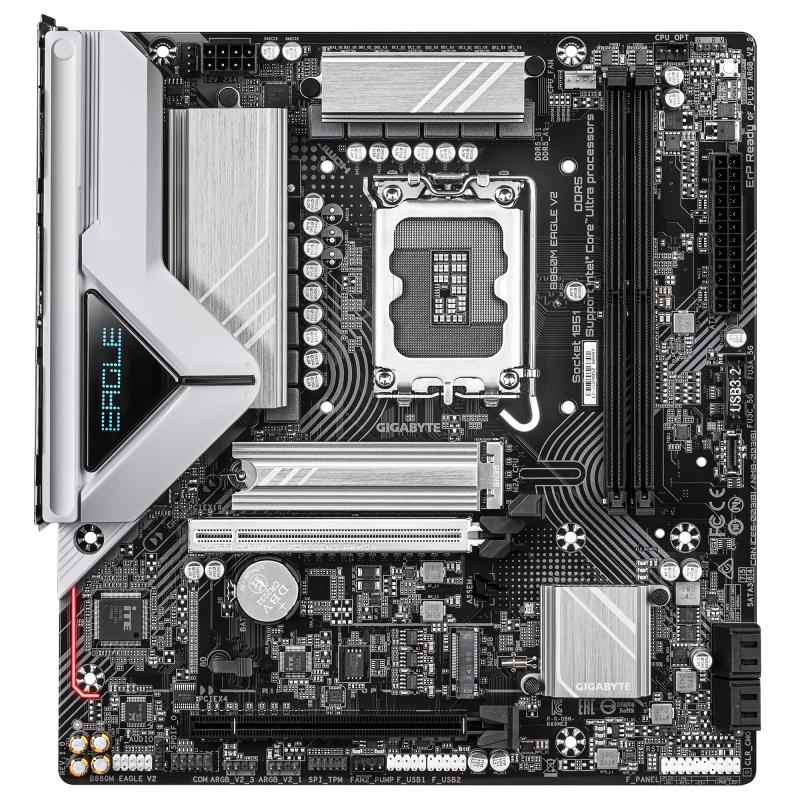

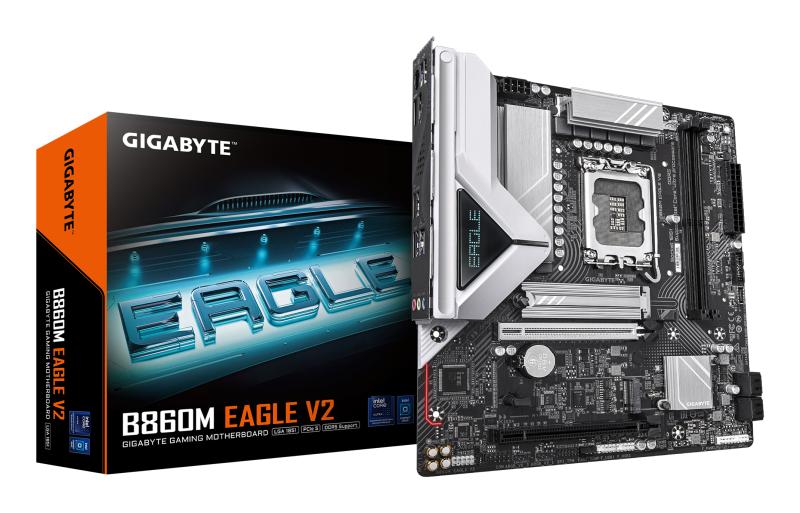

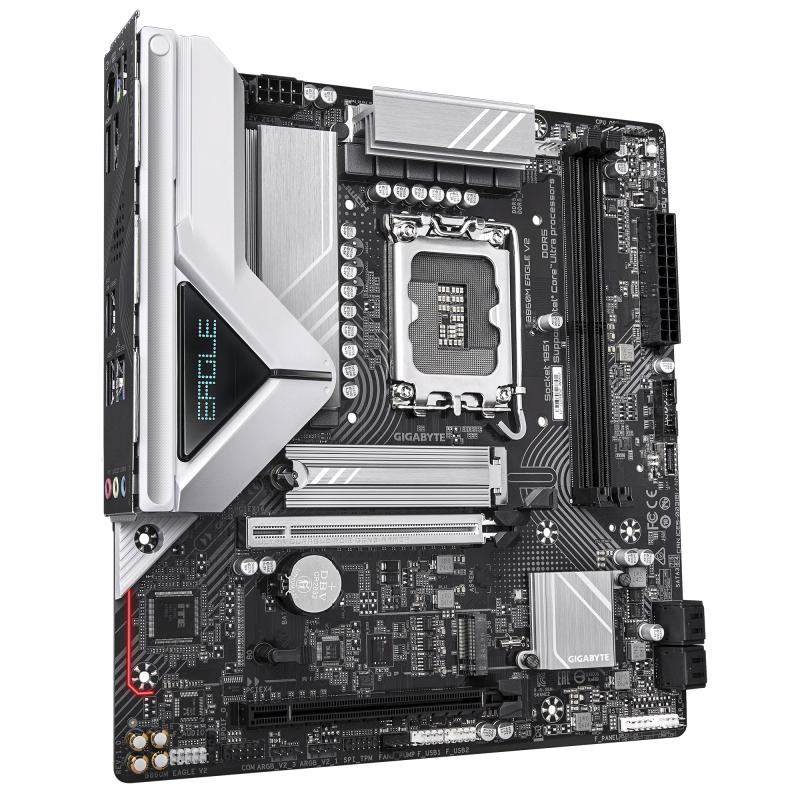

Placa de Baza GIGABYTE B860M EAGLE V2 LGA1851, 2x DDR5,
Placa de Baza GIGABYTE B860M EAGLE V2 LGA1851, 2x DDR5, - imagine 3
Placa de Baza GIGABYTE B860M EAGLE V2 LGA1851, 2x DDR5, - imagine 4
Placa de Baza GIGABYTE B860M EAGLE V2 LGA1851, 2x DDR5, - imagine 5
Placa de Baza GIGABYTE B860M EAGLE V2 LGA1851, 2x DDR5, - imagine 6

Placa de Baza GIGABYTE B860M EAGLE V2 LGA1851, 2x DDR5,

SKU: B860M EAGLE V2
Producator: Gigabyte
Disponibilitate:

8 în stoc
Add to wishlist
Compare

811,98lei 876,99lei

8 în stoc

Placa de Baza GIGABYTE B860M EAGLE V2 LGA1851, 2x DDR5, 1x HDMI 1x DP, 1x PCIE 5.0 x16 1x PCIE 4.0 x16, 2x M.2, 4x SATA 6GB/s, mATX

SKU: B860M EAGLE V2 Categorie:
PCI

0
Serial-or-Paralel

No/No
Video-Connection

HDMI/DP
Wi-Fi

No
USB3

4-8
Onboard-CPU

No
RAID support

Yes
Component for

PC
Package width

265 mm
Package height

54 mm
Memory channels

Dual-channel
Processor manufacturer

Intel
Ethernet LAN

Yes
HDMI ports quantity

1
Ethernet LAN (RJ-45) ports

1
HDMI version

2.1
Maximum internal memory

128 GB
Headphone outputs

1
Microphone in

Yes
Products per shipping (inner) case

1 pc(s)
Batteries included

Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0
Audio output channels

7.1 channels
USB 2.0 ports quantity

3
Line-in

Yes
PCI Express x16 (Gen 5.x) slots

1
Audio Chip

Realtek ALC897
PCI Express x16 (Gen 4.x) slots

1
Number of memory slots

2
Supported storage drive types

HDD & SSD
Number of M.2 (M) slots

2
Cooling type

Passive
HDCP

Yes
Screws included

Yes
DisplayPort version

2.1
DisplayPorts quantity

1
VGA (D-Sub) ports quantity

0
Parallel processing technology support

Not supported
DVI-D ports quantity

0
DirectX version

12.0
Maximum resolution

4096 x 2160 pixels
Windows operating systems supported

Windows 10 x64, Windows 11 x64
Package depth

265 mm
Gaming

Nu
BLUETOOTH

Nu
HDMI

Da
Thunderbolt

Nu
Memory slots type

DIMM
Unbuffered memory

Yes
USB 2.0 connectors

2
USB 3.2 Gen 2 (3.1 Gen 2) connectors

0
Number of SATA III connectors

4
Front panel audio connector

Yes
ATX Power connector (24-pin)

Yes
CPU fan connector

Yes
Number of chassis fan connectors

2
EPS power connector (8-pin)

Yes
PS/2 ports quantity

1
Motherboard form factor

micro ATX
BIOS type

UEFI AMI
BIOS memory size

256 Mbit
Clear CMOS jumper

Yes
Width

244 mm
Processor socket

LGA 1851 (Socket V1)
Supported processor sockets

LGA 1851
Supported memory types

DDR5-SDRAM
ECC сompatibility

ECC & Non-ECC
Maximum internal memory per slot

64 GB
Number of HDDs supported

4
RAID levels

0, 1, 5, 10
Front panel connector

Yes
Number of CPU fan connectors

2
TPM connector

Yes
Number of water pump connectors

2
RGB LED pin header

Yes
Ethernet interface type

2.5 Gigabit Ethernet
LAN controller

Realtek RTL8125
Motherboard chipset family

Intel
Motherboard chipset

Intel B860
PC health monitoring

Fan, Temperature, Voltage, Water cooling
Power source type

ATX
1st M.2 highest PCI Express generation

5.0
2nd M.2 highest PCI Express generation

4.0
ACPI version

5.0
Desktop Management Interface (DMI) version

2.7
System Management BIOS (SMBIOS) version

2.7
Battery weight

3 g
Lithium weight per battery

0.07 g
Number of battery cells

1
Battery technology

Lithium-Manganese Dioxide (LiMnO2)
Battery type

CR2032
Height

35 mm
Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software
Number of storage drives supported

6
S/PDIF out connector

Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors

2
Serial port headers

1
Compatible processor series

Intel Core Ultra (Series 2)
1st M.2 largest key size

2280
2nd M.2 largest key size

2280
Number of EPS power connectors (8-pin)

1
Supported storage drive interfaces

M.2, PCI Express 4.0, PCI Express 5.0, SATA III
Number of RGB LED pin headers

3
Depth

225 mm
Package weight

1.2 kg
PCI-Ex1

0
MB-Format

micro-ATX
RAM-Slots

2
Product colour

Dark brown
Format

Micro-ATX (mATX)
Numar sloturi memorie

2
Memorie maxima

N/A
Canale audio

N/A
RJ-45 LAN

N/A
Chipset audio integrat

Realtek
Soclu Procesor

Socket 1851
Tip Memorie:

DDR5
Tip slot interfata grafica

PCIe 5.0 x16
Wireless

N/A
USB Type-C

N/A
Sloturi M.2

2
Model Chipset

B860
MB-Socket

LGA1851
PCI-Ex16

2
Weight

1.01 kg
Supported memory clock speeds

9066,8800,8600,8400,8266,8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,5600 MHz
