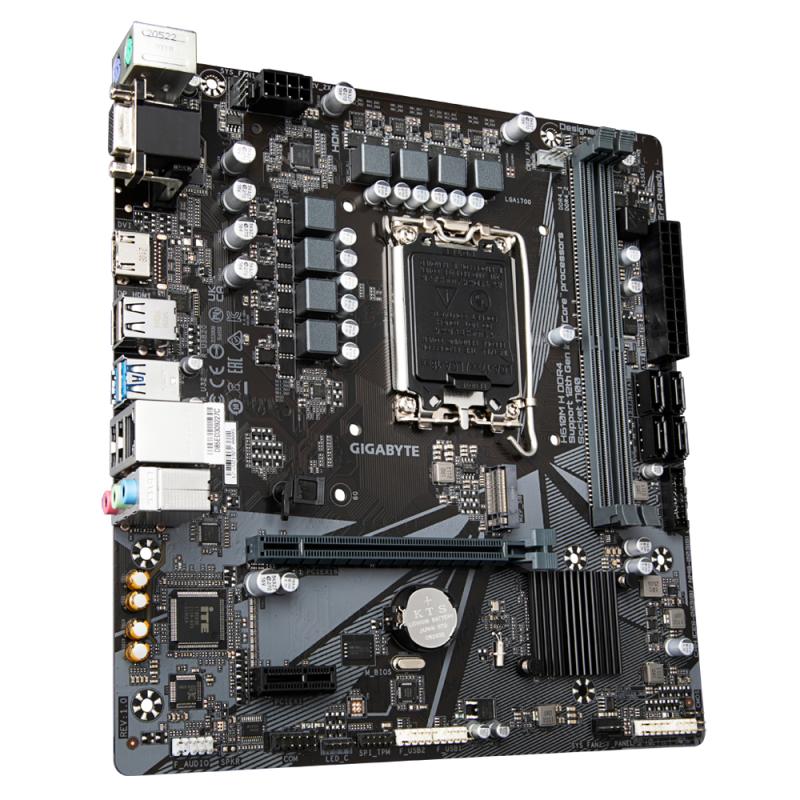

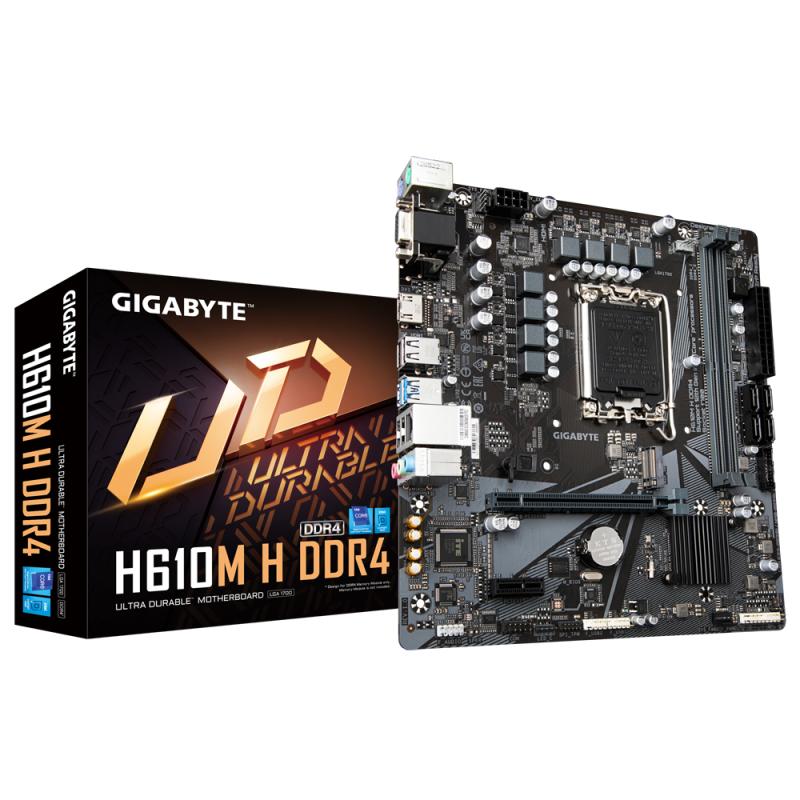

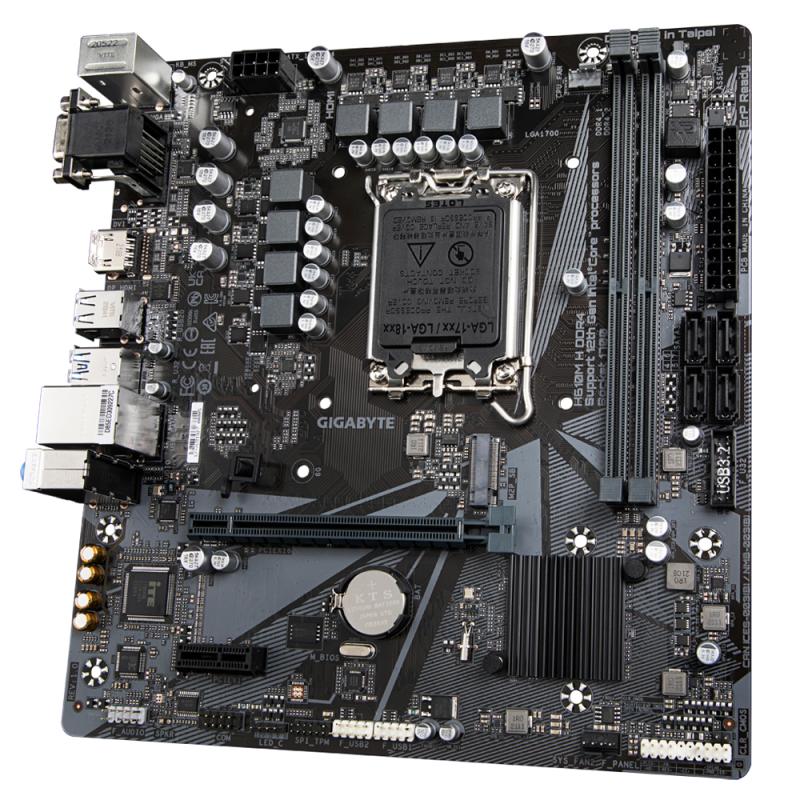

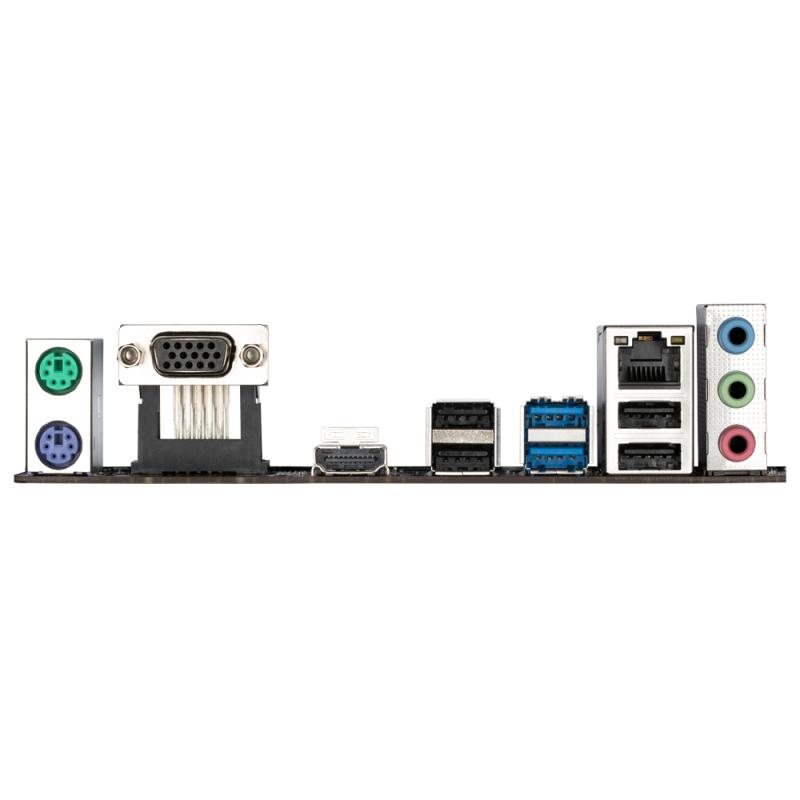

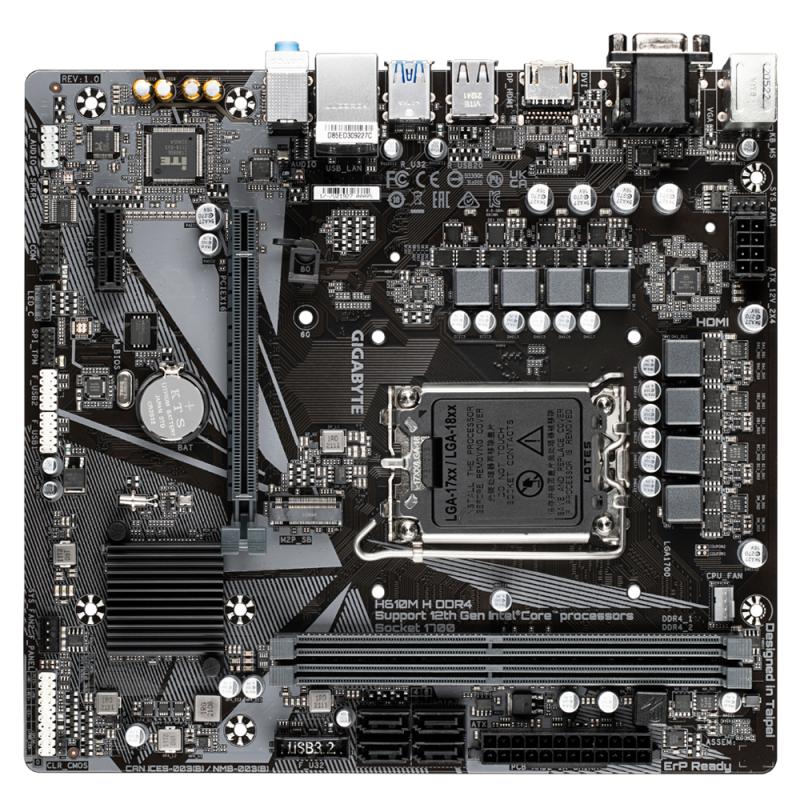

Placa de baza GIGABYTE H610M H DDR4, LGA 1700
Placa de baza GIGABYTE H610M H DDR4, LGA 1700 - imagine 3
Placa de baza GIGABYTE H610M H DDR4, LGA 1700 - imagine 4
Placa de baza GIGABYTE H610M H DDR4, LGA 1700 - imagine 5
Placa de baza GIGABYTE H610M H DDR4, LGA 1700 - imagine 6
Placa de baza GIGABYTE H610M H DDR4, LGA 1700 - imagine 7
Placa de baza GIGABYTE H610M H DDR4, LGA 1700 - imagine 8
Placa de baza GIGABYTE H610M H DDR4, LGA 1700 - imagine 9
Placa de baza GIGABYTE H610M H DDR4, LGA 1700 - imagine 10
Placa de baza GIGABYTE H610M H DDR4, LGA 1700 - imagine 11

Placa de baza GIGABYTE H610M H DDR4, LGA 1700

SKU: H610M H DDR4
Producator: Gigabyte
Disponibilitate:

Stoc epuizat
Add to wishlist
Compare

572,99lei

Stoc epuizat

Placa de baza Gigabyte PRIME H610M H DDR4 LGA 1700 Design, PCIe 4.0* Design, Gen3 x4 M.2 , Intel® GbE with cFosSpeed , Anti-Sulfur Resistor, Smart Fan 6 Supports 12th Gen Intel® Core™ Series Processors Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs 6+1+1 Hybrid Digital VRM Design Intel® GbE LAN with cFosSpeed Internet Accelerator Software NVMe PCIe 3.0 x4 M.2 High Quality Audio Capacitors and Audio Noise Guard Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP GIGABYTE APP Center, Simple and Easy Use Anti-Sulfur Resistors Design https://www.gigabyte.com/Motherboard/H610M-H-DDR4-rev-10#kf

SKU: H610M H DDR4 Categorie:
Wi-Fi

No
Onboard-CPU

No
Component for

PC
Height

70 mm
USB connector type

USB Type-A
Ethernet interface type

Gigabit Ethernet
Harmonized System (HS) code

84733020
Memory channels

Dual-channel
Processor manufacturer

Intel
Maximum internal memory

64 GB
Ethernet LAN

Yes
HDMI ports quantity

1
Ethernet LAN (RJ-45) ports

1
Depth

215 mm
HDMI version

2.0
Microphone in

Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0
USB 2.0 ports quantity

4
Audio output channels

7.1 channels
PCI Express x16 slots

1
Number of memory slots

2
Supported storage drive types

HDD & SSD
Supported memory types

DDR4-SDRAM
Number of M.2 (M) slots

1
VGA (D-Sub) ports quantity

1
PCI Express x1 slots

1
HDCP

Yes
Parallel processing technology support

Not supported
DVI-D ports quantity

0
Maximum resolution

4096 x 2160 pixels
Windows operating systems supported

Windows 10 x64, Windows 11 x64
Drivers included

Yes
Model Chipset

H610
Gaming

Nu
Format

Micro-ATX (mATX)
Soclu Procesor

Socket 1700
Tip Memorie:

DDR4
Numar sloturi memorie

2
Memorie maxima

64 GB
Tip slot interfata grafica

PCIe 4.0 x16
Chipset audio integrat

Realtek
Canale audio

7.1
Wireless

Nu
BLUETOOTH

Nu
USB Type-C

Da
HDMI

Da
Thunderbolt

Nu
Sloturi M.2

1
RJ-45 LAN

1
Memory slots type

DIMM
Unbuffered memory

Yes
Supported storage drive interfaces

M.2, SATA III
USB 2.0 connectors

2
USB 3.2 Gen 1 (3.1 Gen 1) connectors

1
USB 3.2 Gen 2 (3.1 Gen 2) connectors

0
Number of SATA III connectors

4
Front panel audio connector

Yes
ATX Power connector (24-pin)

Yes
CPU fan connector

Yes
Number of chassis fan connectors

2
EPS power connector (8-pin)

Yes
Motherboard form factor

micro ATX
BIOS type

UEFI AMI
BIOS memory size

256 Mbit
Clear CMOS jumper

Yes
ECC сompatibility

ECC & Non-ECC
Front panel connector

Yes
TPM connector

Yes
RGB LED pin header

Yes
Motherboard chipset family

Intel
ACPI version

5.0
Desktop Management Interface (DMI) version

2.7
System Management BIOS (SMBIOS) version

2.7
Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software
Processor socket

LGA 1700
Supported processor sockets

LGA 1700
12V power connector

Yes
Cables included

SATA
Serial port headers

1
Headphone outputs

3
Width

230 mm
Supported memory clock speeds

2133,2400,2666,2933,3000,3200 MHz
Number of storage drives supported

5
PC health monitoring

Fan, Temperature, Voltage
PS/2 ports quantity

2
Motherboard chipset

Intel H610 Express
Weight

790 g
Producator

GIGABYTE
Garantie

36
