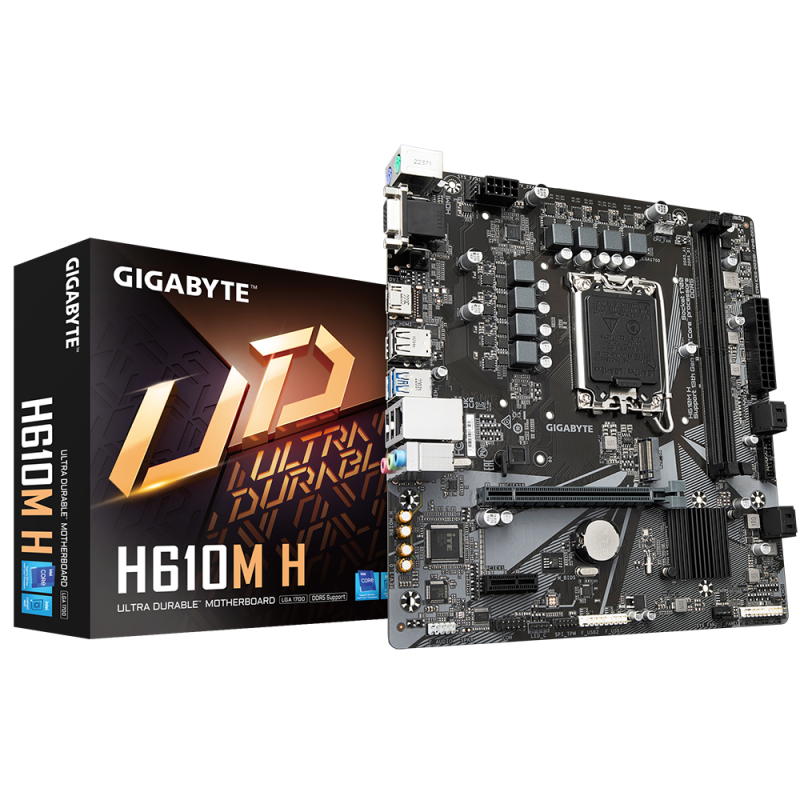

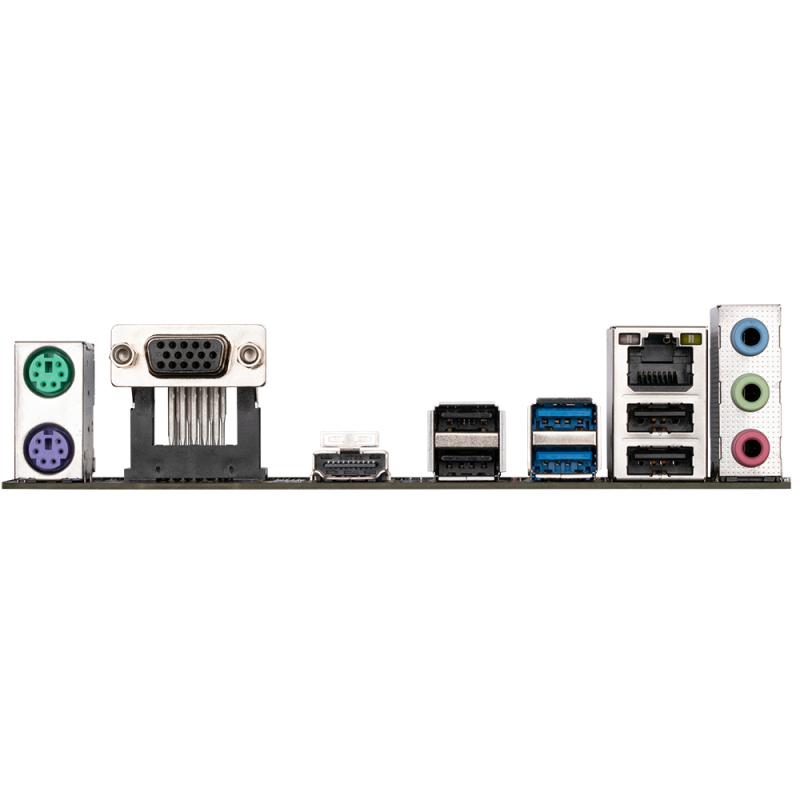

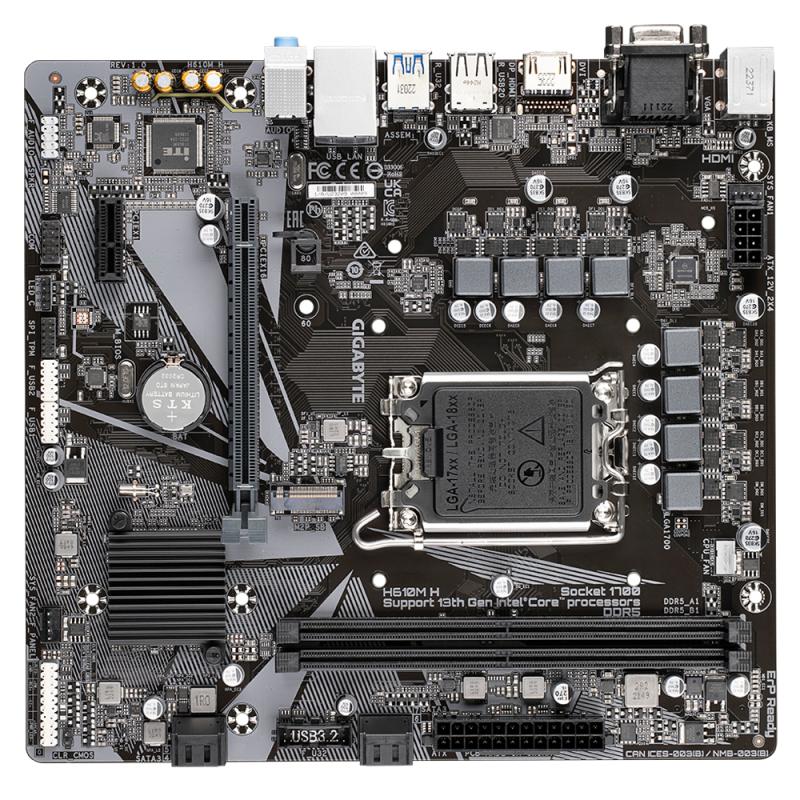

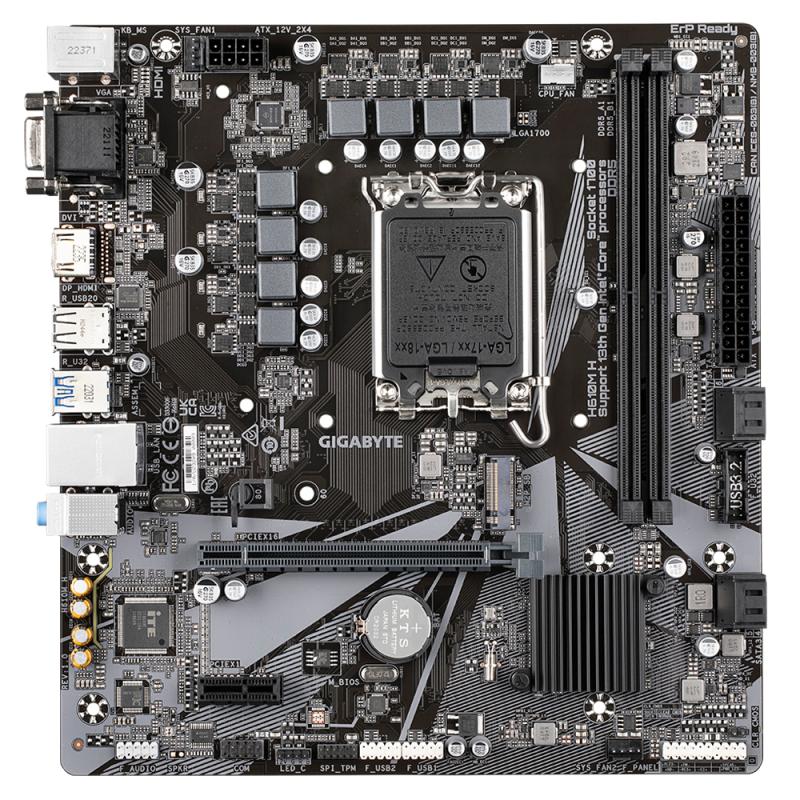

Placa de baza Gigabyte H610M H LGA1700
Placa de baza Gigabyte H610M H LGA1700 - imagine 3
Placa de baza Gigabyte H610M H LGA1700 - imagine 4
Placa de baza Gigabyte H610M H LGA1700 - imagine 5
Placa de baza Gigabyte H610M H LGA1700 - imagine 6
Placa de baza Gigabyte H610M H LGA1700 - imagine 7
Placa de baza Gigabyte H610M H LGA1700 - imagine 8
Placa de baza Gigabyte H610M H LGA1700 - imagine 9
Placa de baza Gigabyte H610M H LGA1700 - imagine 10
Placa de baza Gigabyte H610M H LGA1700 - imagine 11
Placa de baza Gigabyte H610M H LGA1700 - imagine 12

Placa de baza Gigabyte H610M H LGA1700

SKU: H610M H
Producator: Gigabyte
Disponibilitate:

Stoc epuizat
Add to wishlist
Compare

548,99lei

Stoc epuizat

Placa de baza Gigabyte H610M H LGA1700, 2xDDR5, 1xD-Sub, 1xHDMI, 1xPCIex16, 1xPCIex1, 1xM.2, 4xSATA 6Gps, Micro ATX

SKU: H610M H Categorie:
PCI

0
Serial-or-Paralel

No/No
Video-Connection

HDMI
Wi-Fi

No
Onboard-CPU

No
Country of origin

China
Component for

PC
Package width

265 mm
USB connector type

USB Type-A
Ethernet interface type

Gigabit Ethernet
Package height

54 mm
Memory channels

Dual-channel
Processor manufacturer

Intel
Maximum internal memory

64 GB
Ethernet LAN

Yes
HDMI ports quantity

1
Ethernet LAN (RJ-45) ports

1
Depth

215 mm
Microphone in

Yes
Products per shipping (inner) case

1 pc(s)
Batteries included

Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0
USB 2.0 ports quantity

4
Audio output channels

7.1 channels
PCI Express x16 slots

1
Number of memory slots

2
Supported storage drive types

HDD & SSD
Number of M.2 (M) slots

1
VGA (D-Sub) ports quantity

1
PCI Express x1 slots

1
HDCP

Yes
Product colour

Brown
Parallel processing technology support

Not supported
DVI-D ports quantity

0
DirectX version

12.0
Maximum resolution

4096 x 2160 pixels
Windows operating systems supported

Windows 10 x64, Windows 11 x64
Drivers included

Yes
Package depth

265 mm
Model Chipset

H610
Gaming

Nu
Format

Micro-ATX (mATX)
Soclu Procesor

Socket 1700
Tip Memorie:

DDR5
Numar sloturi memorie

2
Memorie maxima

64 GB
Tip slot interfata grafica

PCIe 3.0 x16
Chipset audio integrat

Realtek
Canale audio

7.1
Wireless

Nu
BLUETOOTH

Nu
USB Type-C

Da
HDMI

Da
Thunderbolt

Nu
Sloturi M.2

1
RJ-45 LAN

1
Memory slots type

DIMM
Unbuffered memory

Yes
Supported storage drive interfaces

M.2, SATA III
USB 2.0 connectors

2
USB 3.2 Gen 1 (3.1 Gen 1) connectors

1
USB 3.2 Gen 2 (3.1 Gen 2) connectors

0
Number of SATA III connectors

4
Front panel audio connector

Yes
ATX Power connector (24-pin)

Yes
CPU fan connector

Yes
Number of chassis fan connectors

2
EPS power connector (8-pin)

Yes
Motherboard form factor

micro ATX
BIOS type

UEFI AMI
Clear CMOS jumper

Yes
Supported memory types

DDR5-SDRAM
ECC сompatibility

ECC & Non-ECC
Number of HDDs supported

4
Front panel connector

Yes
TPM connector

Yes
RGB LED pin header

Yes
Motherboard chipset family

Intel
ACPI version

5.0
Desktop Management Interface (DMI) version

2.7
System Management BIOS (SMBIOS) version

2.7
Battery weight

3 g
Lithium weight per battery

0.07 g
Number of battery cells

1
Battery technology

Lithium-Manganese Dioxide (LiMnO2)
Battery type

CR2032
Height

35 mm
Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software
Processor socket

LGA 1700
Supported processor sockets

LGA 1700
Total number of SATA connectors

4
12V power connector

Yes
Cables included

SATA
BIOS memory size

128 Mbit
Serial port headers

1
Headphone outputs

3
Width

230 mm
Number of storage drives supported

5
PC health monitoring

Fan, Temperature, Voltage
PS/2 ports quantity

2
Maximum internal memory supported by processor

64 GB
Motherboard chipset

Intel H610 Express
Supported memory clock speeds

4400,4800,5200,5600 MHz
Package weight

849 g
Producator

GIGABYTE
Garantie

36
