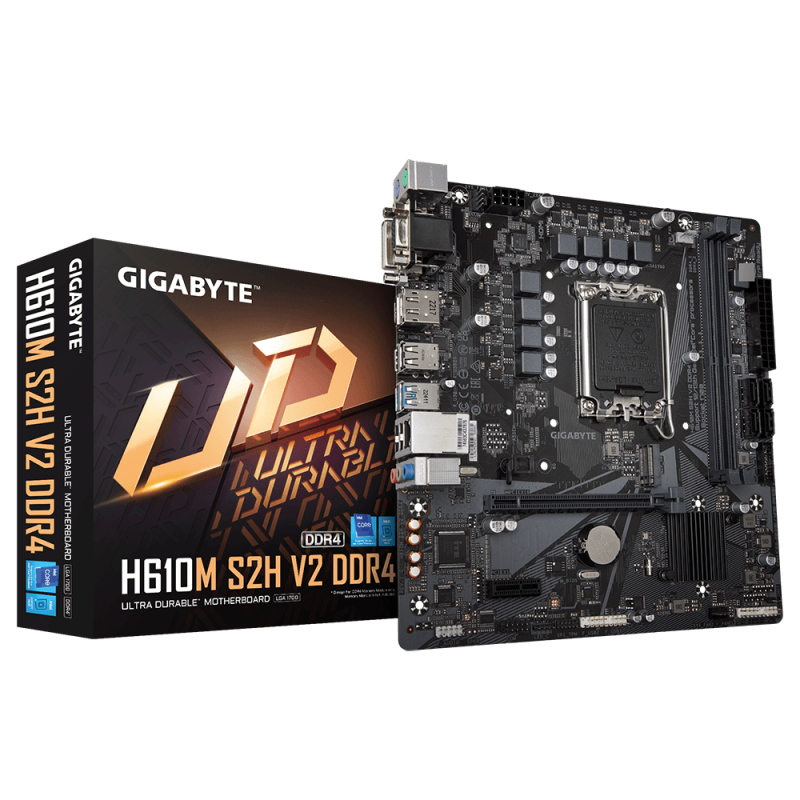

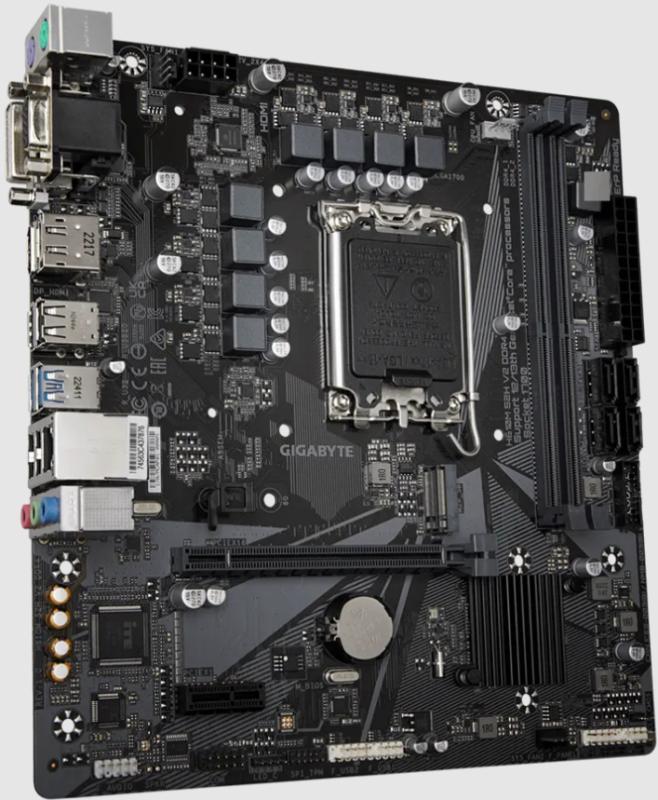

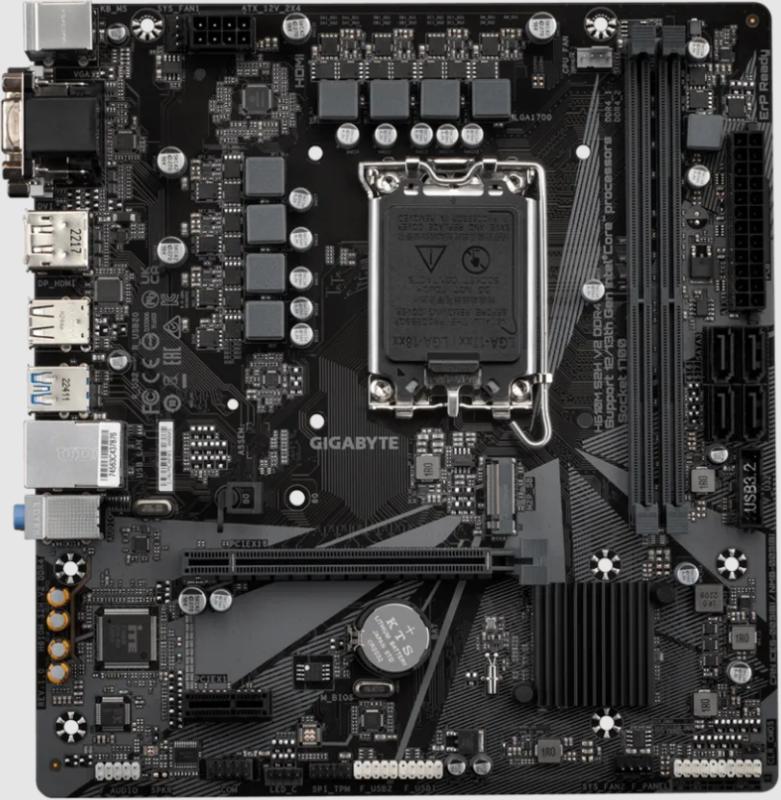

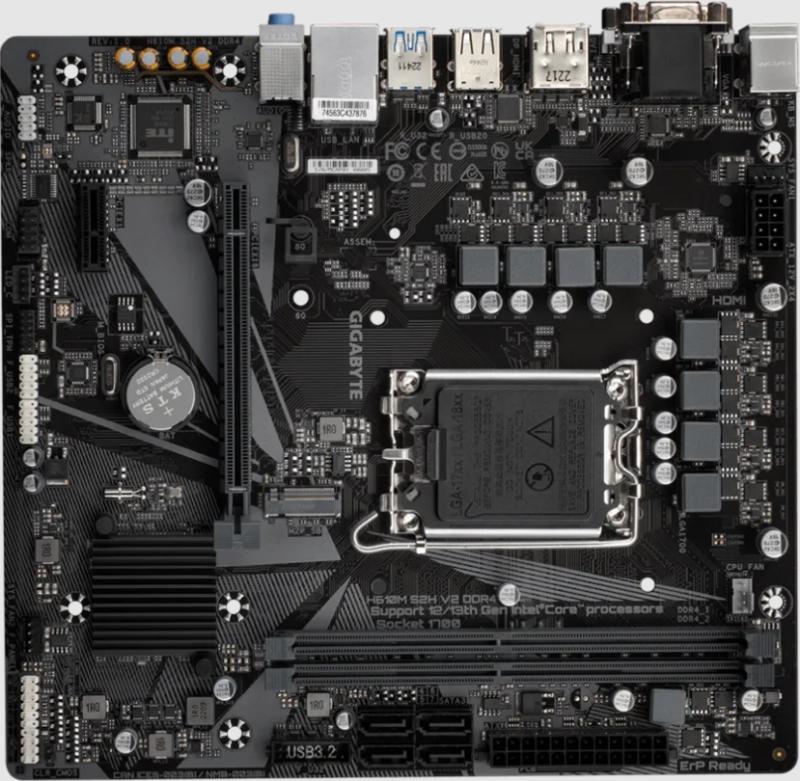

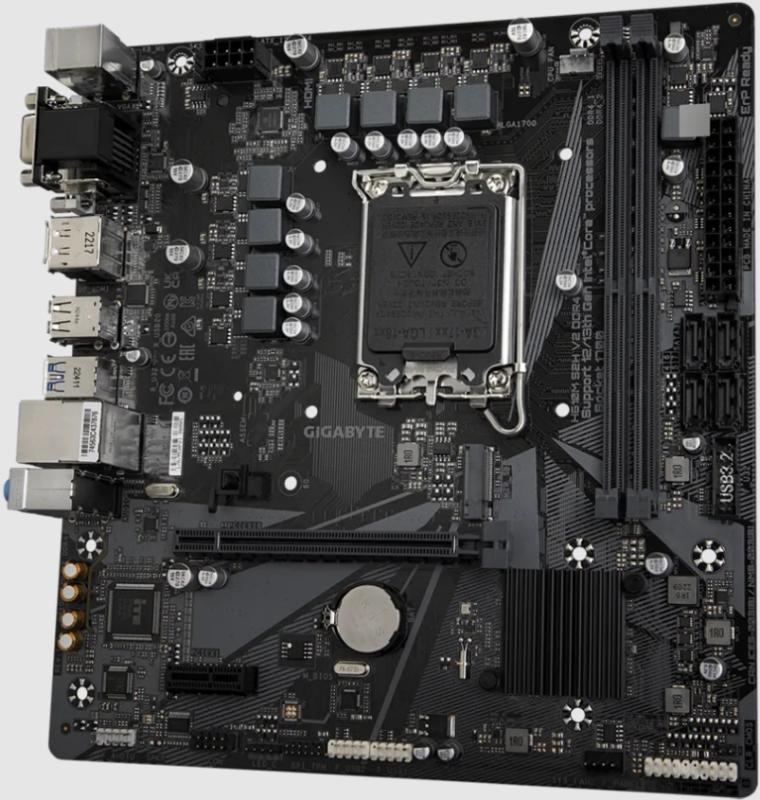

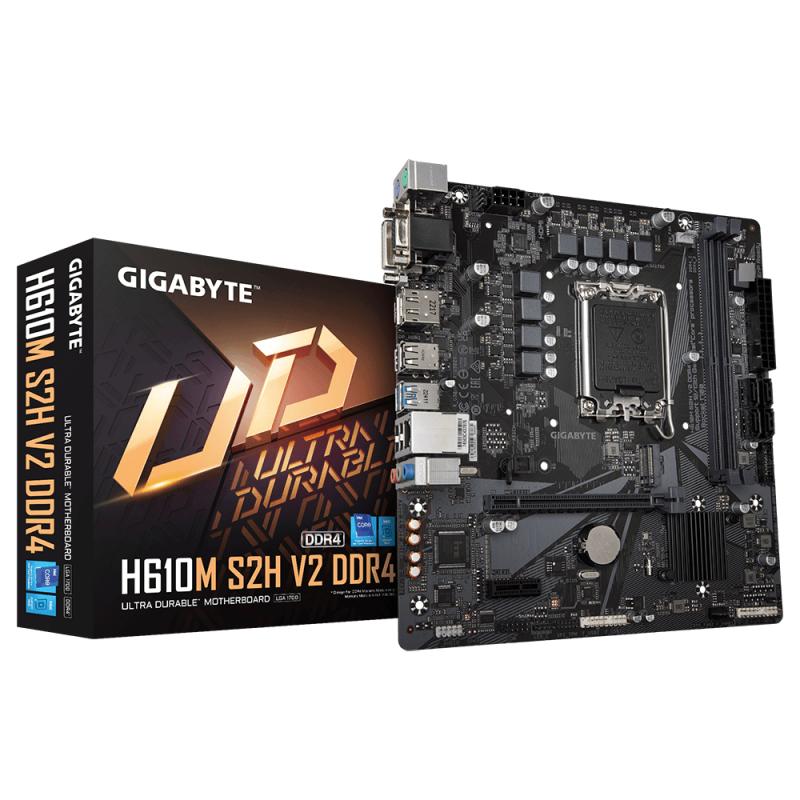

Placa de baza GIGABYTE H610M S2H V2 LGA1700
Placa de baza GIGABYTE H610M S2H V2 LGA1700 - imagine 3
Placa de baza GIGABYTE H610M S2H V2 LGA1700 - imagine 4
Placa de baza GIGABYTE H610M S2H V2 LGA1700 - imagine 5
Placa de baza GIGABYTE H610M S2H V2 LGA1700 - imagine 6
Placa de baza GIGABYTE H610M S2H V2 LGA1700 - imagine 7
Placa de baza GIGABYTE H610M S2H V2 LGA1700 - imagine 8
Placa de baza GIGABYTE H610M S2H V2 LGA1700 - imagine 9
Placa de baza GIGABYTE H610M S2H V2 LGA1700 - imagine 10
Placa de baza GIGABYTE H610M S2H V2 LGA1700 - imagine 11
Placa de baza GIGABYTE H610M S2H V2 LGA1700 - imagine 12

Placa de baza GIGABYTE H610M S2H V2 LGA1700

SKU: H610M S2H V2 DDR4
Producator: Gigabyte
Disponibilitate:

Stoc epuizat
Add to wishlist
Compare

561,99lei

Stoc epuizat

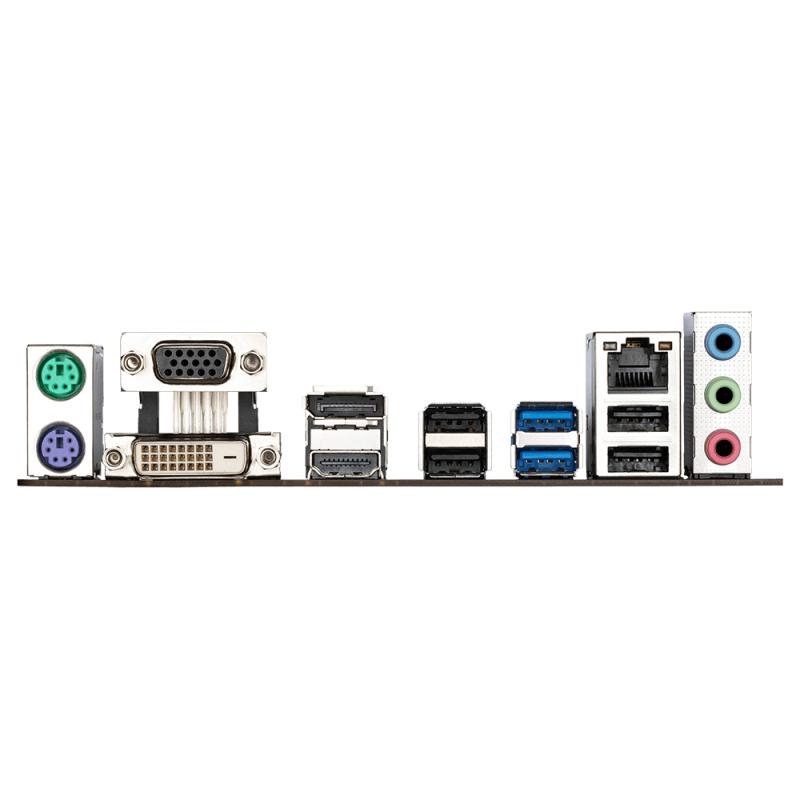

Placa de baza GIGABYTE H610M S2H V2 LGA1700, 2x DDR4 3200MHz, 1x D-Sub, 1x DVI-D, 1x HDMI, 1x DisplayPort, 1x PCIe x16, 1x PCIe x1, 1x M.2, 4x SATA 6Gbps, LAN 1Gbps, mATX

SKU: H610M S2H V2 DDR4 Categorie:
PCI

0
Serial-or-Paralel

No/No
Video-Connection

HDMI/DP
Wi-Fi

No
Onboard-CPU

No
Country of origin

China
Component for

PC
Package width

265 mm
Cooling type

Active
Ethernet interface type

Gigabit Ethernet
Package height

54 mm
Memory channels

Dual-channel
Processor manufacturer

Intel
Maximum internal memory

64 GB
On-board graphics card

Yes
Ethernet LAN

Yes
HDMI ports quantity

1
Ethernet LAN (RJ-45) ports

1
Depth

215 mm
Headphone outputs

1
Microphone in

Yes
Graphics card family

Intel
Products per shipping (inner) case

1 pc(s)
Batteries included

Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0
USB 2.0 ports quantity

4
Audio output channels

7.1 channels
PCI Express x16 slots

1
Number of memory slots

2
Supported storage drive types

HDD & SSD
Supported memory types

DDR4-SDRAM
Number of M.2 (M) slots

1
VGA (D-Sub) ports quantity

1
PCI Express x1 slots

1
HDCP

Yes
DVI-D ports quantity

1
Product colour

Brown
DisplayPorts quantity

1
DirectX version

12.0
Windows operating systems supported

Windows 10 x64, Windows 11 x64
Package depth

265 mm
Model Chipset

H610
Gaming

Nu
Format

Micro-ATX (mATX)
Soclu Procesor

Socket 1700
Tip Memorie:

DDR4
Numar sloturi memorie

2
Memorie maxima

64 GB
Tip slot interfata grafica

PCIe 3.0 x16
Chipset audio integrat

Realtek
Canale audio

7.1
Wireless

Nu
BLUETOOTH

Nu
USB Type-C

Da
HDMI

Da
Thunderbolt

Nu
Sloturi M.2

1
RJ-45 LAN

1
Memory slots type

DIMM
Unbuffered memory

Yes
USB 2.0 connectors

2
USB 3.2 Gen 1 (3.1 Gen 1) connectors

1
USB 3.2 Gen 2 (3.1 Gen 2) connectors

0
Number of SATA III connectors

4
Front panel audio connector

Yes
ATX Power connector (24-pin)

Yes
CPU fan connector

Yes
Number of chassis fan connectors

2
EPS power connector (8-pin)

Yes
Motherboard form factor

micro ATX
BIOS type

UEFI AMI
Clear CMOS jumper

Yes
ECC сompatibility

ECC & Non-ECC
Number of HDDs supported

4
Front panel connector

Yes
TPM connector

Yes
RGB LED pin header

Yes
Motherboard chipset family

Intel
Power source type

ATX
ACPI version

5.0
Desktop Management Interface (DMI) version

2.7
System Management BIOS (SMBIOS) version

2.7
Battery weight

3 g
Lithium weight per battery

0.07 g
Number of battery cells

1
Battery technology

Lithium-Manganese Dioxide (LiMnO2)
Battery type

CR2032
Height

35 mm
Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software
Processor socket

LGA 1700
Maximum number of SMP processors

1
Supported processor sockets

LGA 1700
Total number of SATA connectors

4
12V power connector

Yes
Clear CMOS button

Yes
Number of COM connectors

1
BIOS memory size

128 Mbit
Serial port headers

1
Width

230 mm
Number of storage drives supported

5
Supported memory clock speeds

3200 MHz
PS/2 ports quantity

2
Maximum internal memory supported by processor

64 GB
Supported memory module capacities

1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Graphics card

HD Graphics
Motherboard chipset

Intel H610 Express
Supported storage drive interfaces

M.2, SATA
On-board graphics card model

Intel® HD Graphics
PC health monitoring

Fan, LED, Temperature, Voltage, Water cooling
Supported DIMM module capacities

8GB, 16GB
Package weight

857 g
Producator

GIGABYTE
Garantie

36
