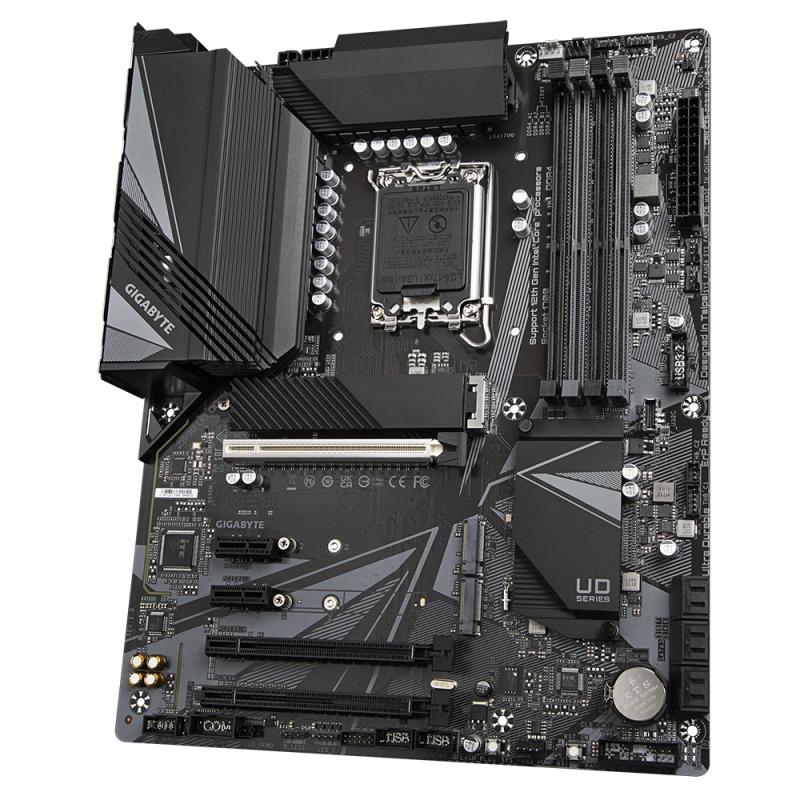

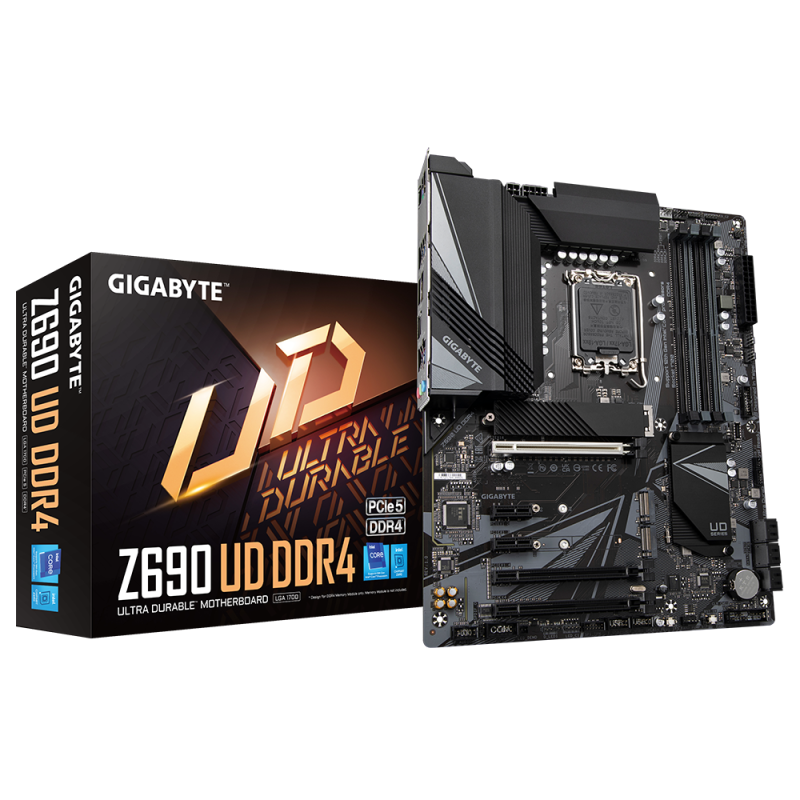

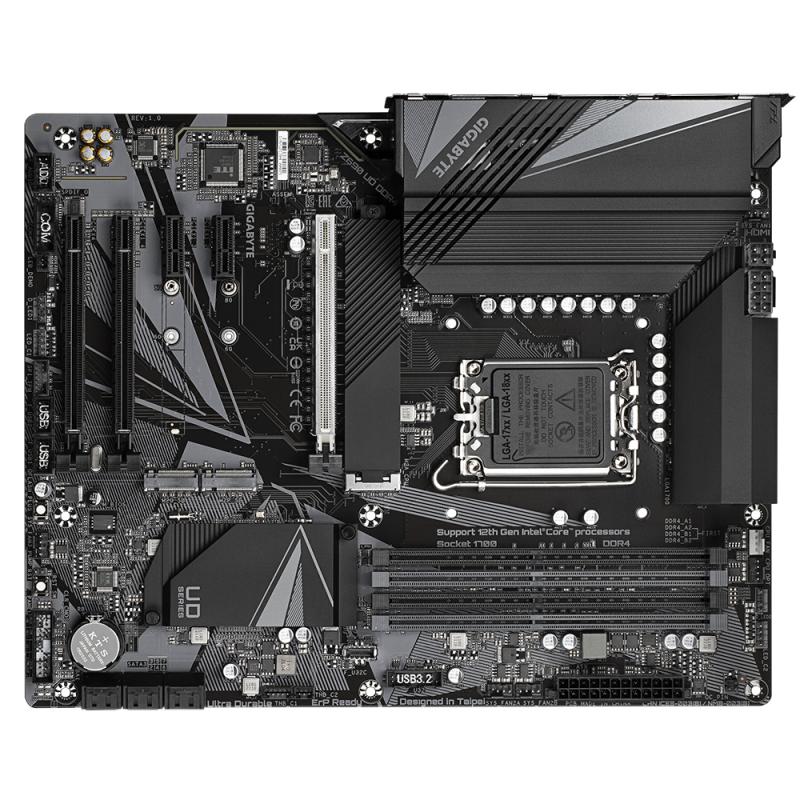

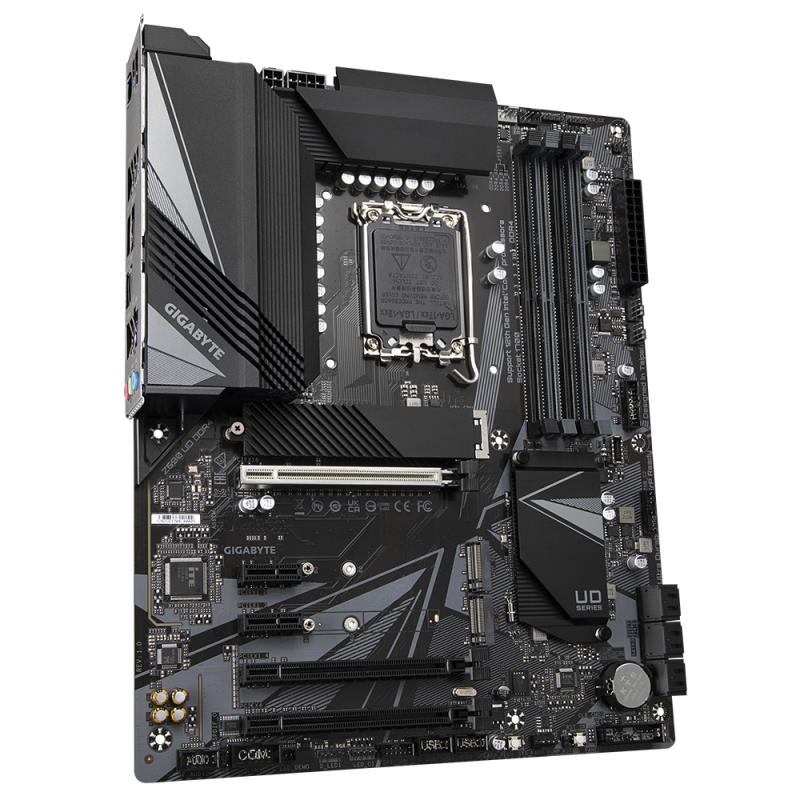

Placa de baza Gigabyte Z690 UD DDR4 LGA 1700
Placa de baza Gigabyte Z690 UD DDR4 LGA 1700 - imagine 3
Placa de baza Gigabyte Z690 UD DDR4 LGA 1700 - imagine 4
Placa de baza Gigabyte Z690 UD DDR4 LGA 1700 - imagine 5
Placa de baza Gigabyte Z690 UD DDR4 LGA 1700 - imagine 6
Placa de baza Gigabyte Z690 UD DDR4 LGA 1700 - imagine 7
Placa de baza Gigabyte Z690 UD DDR4 LGA 1700 - imagine 8
Placa de baza Gigabyte Z690 UD DDR4 LGA 1700 - imagine 9
Placa de baza Gigabyte Z690 UD DDR4 LGA 1700 - imagine 10

Placa de baza Gigabyte Z690 UD DDR4 LGA 1700

SKU: Z690 UD DDR4
Producator: Gigabyte
Disponibilitate:

Stoc epuizat
Add to wishlist
Compare

1.261,00lei

Stoc epuizat

Recomandat pentru Gaming
Da
Format
ATX
Soclu procesor
1700
Producator chipset
Intel
Model chipset
Z690
Procesoare suportate
Intel 12th Generation Core/Pentium Gold/Celeron
Interfata grafica
PCI Express x16 5.0
Placa audio integrata
7.1 Audio with Realtek
Chipset audio
Realtek
Placa retea integrata
10/100/1000/2500 Mbps
Chipset retea
Realtek
Numar SATA-III
6
M.2
2
Memorii Suportate
Tip memorie
DDR4
Memorie maxima
128 GB
Numar sloturi
4
Tehnologie
Dual channel
Frecvente suportate
5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
Sloturi
PCI Express 5.0 x16
1
PCI Express 3.0 x16
1
PCI Express x1
1

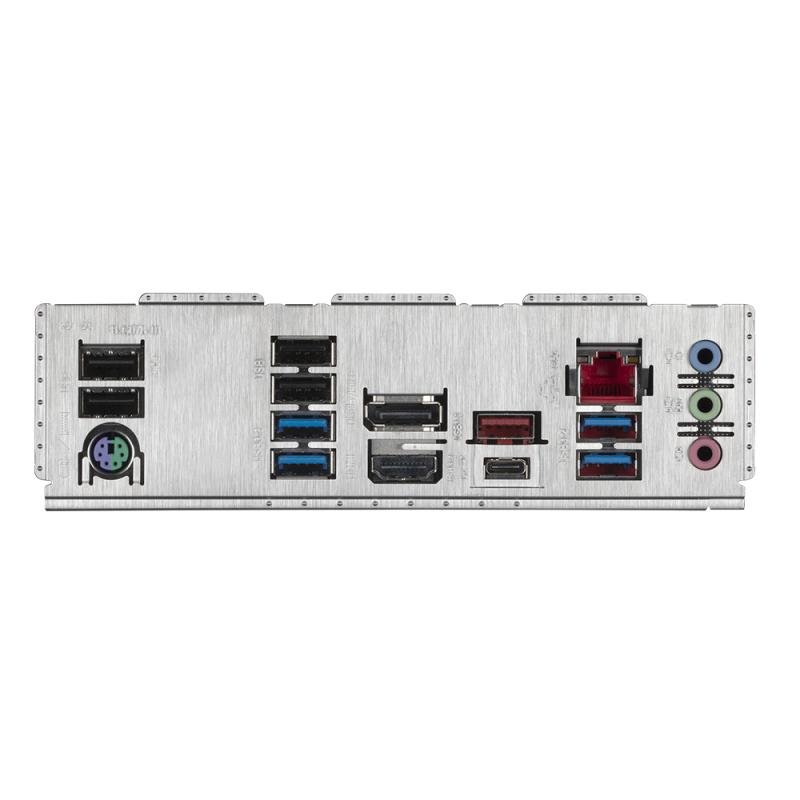

Conectori Back Panel
PS/2 Mouse-Tastatura
1
Optical S/PDIF out
1
HDMI
1
Display Port
1
USB 2.0
4
USB 3.2 Gen1 tip A
4
USB 3.2 Gen2 tip C
1
RJ-45 LAN
1
Suport audio
7.1
BIOS Flashback
Da
SKU: Z690 UD DDR4 Categorie:
PCI

0
Serial-or-Paralel

No/No
Video-Connection

HDMI/DP
Wi-Fi

No
CPU încorporat

No
Component for

PC
Height

70 mm
Weight

1 kg
Windows operating systems supported

Windows 10 x64
Harmonized System (HS) code

84733020
Thunderbolt ports quantity

2
Memory channels

Dual-channel
Processor manufacturer

Intel
Ethernet LAN

Yes
HDMI ports quantity

1
Ethernet LAN (RJ-45) ports

1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1
Maximum internal memory

128 GB
Width

305 mm
Depth

244 mm
USB 2.0 ports quantity

4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4
Audio output channels

7.1 channels
PCI Express x16 slots

1
Supported storage drive types

HDD & SSD
Supported memory types

DDR4-SDRAM
S/PDIF out port

Yes
Motherboard chipset

Intel Z690
HDCP

Yes
Model Chipset

Z690
Gaming

Nu
Format

ATX
Soclu Procesor

Socket 1700
Tip Memorie:

DDR4
Numar sloturi memorie

4
Memorie maxima

128 GB
Tip slot interfata grafica

PCIe 5.0 x16
Chipset audio integrat

Realtek
Canale audio

7.1
Wireless

Nu
BLUETOOTH

Nu
USB Type-C

Da
HDMI

Da
Thunderbolt

Nu
Sloturi M.2

3
RJ-45 LAN

1
Number of memory slots

4
Memory slots type

DIMM
Unbuffered memory

Yes
Supported storage drive interfaces

M.2, SATA III
USB 2.0 connectors

2
USB 3.2 Gen 1 (3.1 Gen 1) connectors

1
Front panel audio connector

Yes
ATX Power connector (24-pin)

Yes
CPU fan connector

Yes
EPS power connector (8-pin)

Yes
BIOS type

UEFI AMI
BIOS memory size

256 Mbit
Clear CMOS jumper

Yes
ECC сompatibility

ECC & Non-ECC
RAID levels

0, 1, 5, 10
USB 3.2 Gen 2 (3.1 Gen 2) connectors

1
Front panel connector

Yes
RGB LED pin header

Yes
Ethernet interface type

2.5 Gigabit Ethernet
Motherboard form factor

ATX
Motherboard chipset family

Intel
ACPI version

5.0
Desktop Management Interface (DMI) version

2.7
System Management BIOS (SMBIOS) version

2.7
Processor socket

LGA 1700
Thunderbolt headers

2
Number of SATA III connectors

6
Peripheral (Molex) power connectors (4-pin)

1
PC health monitoring

Fan, Temperature, Voltage
Parallel processing technology support

2-Way CrossFireX, Quad-GPU CrossFireX
Compatible processor series

Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Producator

GIGABYTE
Garantie

36
