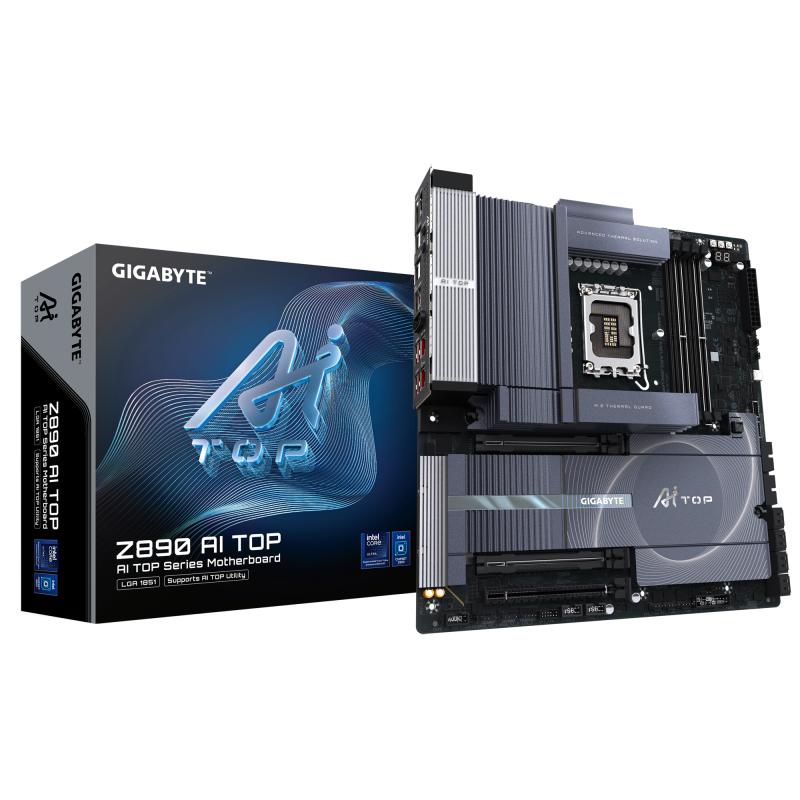

Placa de Baza GIGABYTE Z890 AI TOP LGA1851, 4x DDR5,

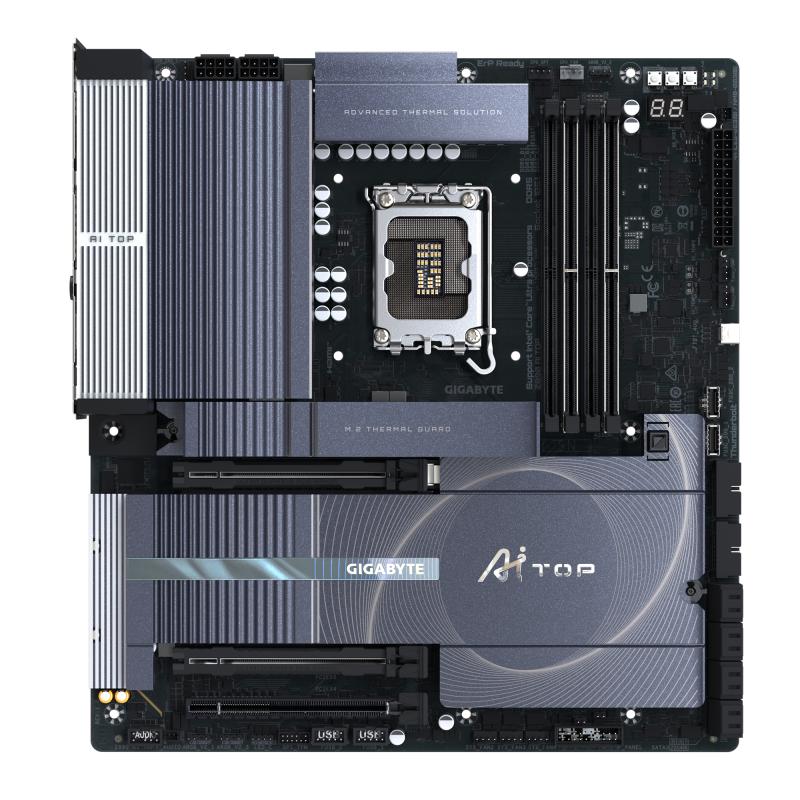

Placa de Baza GIGABYTE Z890 AI TOP LGA1851, 4x DDR5, - imagine 3

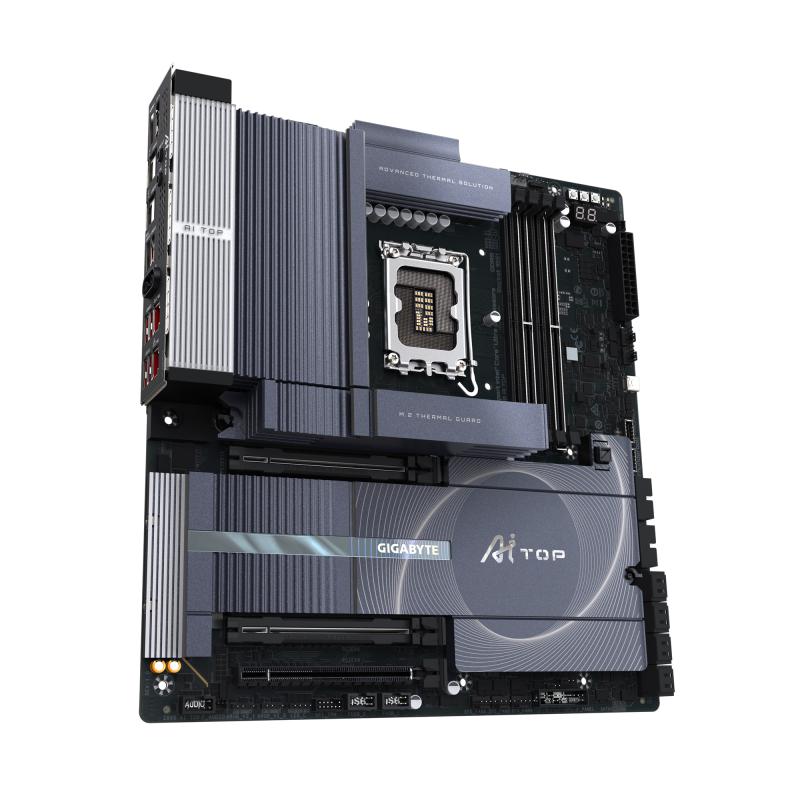

Placa de Baza GIGABYTE Z890 AI TOP LGA1851, 4x DDR5, - imagine 4

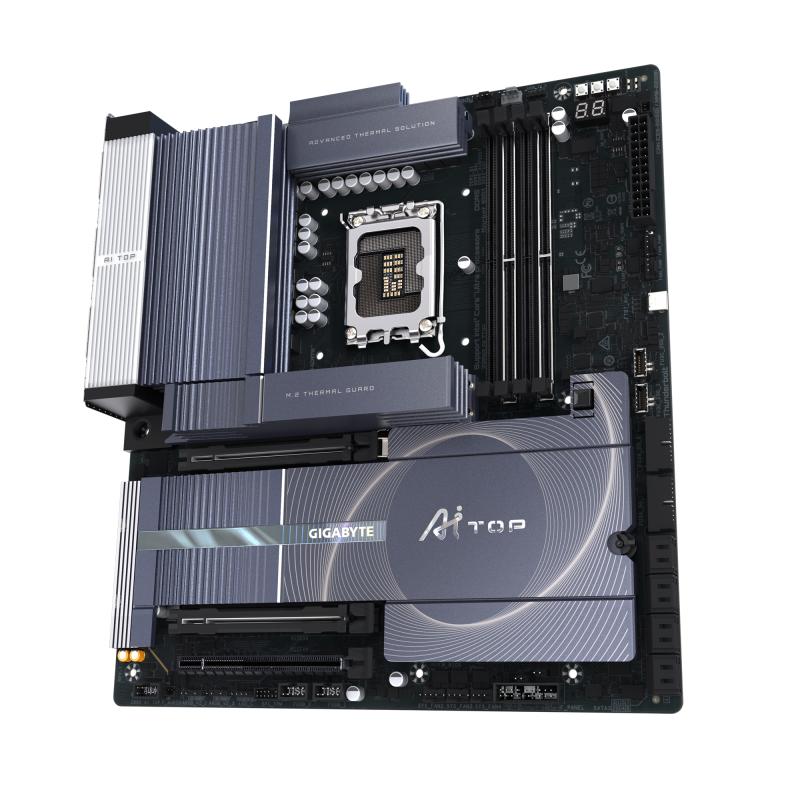

Placa de Baza GIGABYTE Z890 AI TOP LGA1851, 4x DDR5, - imagine 5

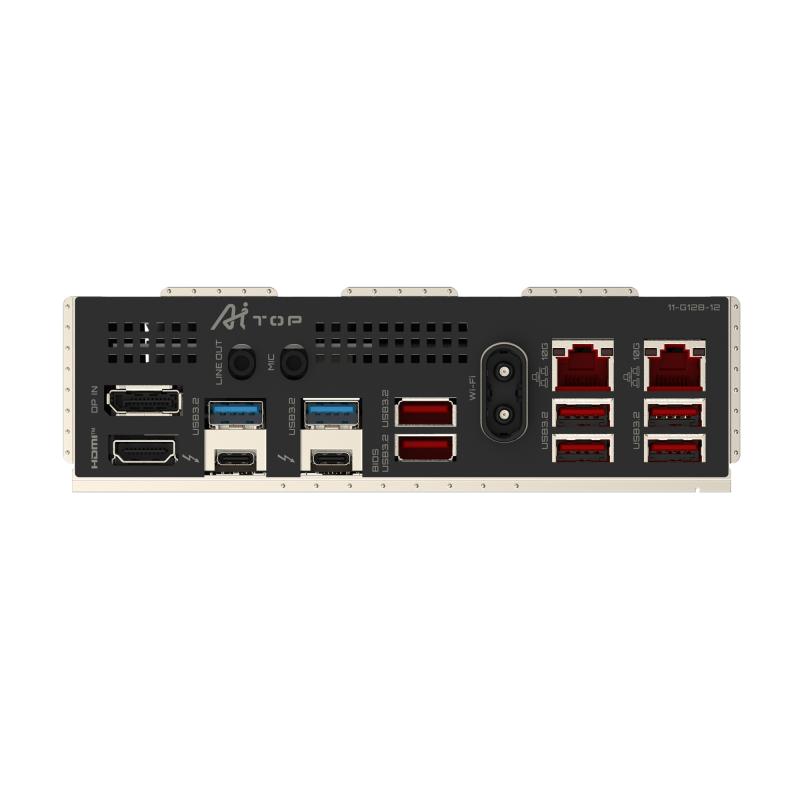

Placa de Baza GIGABYTE Z890 AI TOP LGA1851, 4x DDR5, - imagine 6
Placa de Baza GIGABYTE Z890 AI TOP LGA1851, 4x DDR5, - imagine 7

Placa de Baza GIGABYTE Z890 AI TOP LGA1851, 4x DDR5,

SKU: Z890 AI TOP
Producator: Gigabyte
Disponibilitate:

Stoc epuizat
Add to wishlist
Compare

4.148,99lei

Stoc epuizat

Placa de Baza GIGABYTE Z890 AI TOP LGA1851, 4x DDR5, 2x Intel Thunderbolt 1x Front Intel Thunderbolt 1x HDMI, 2x PCIE 5.0 x16 1x PCIE 4.0 x16, 4x M.2, 4x SATA 6GB/s (4-7) 4x SATA 6GB/s (0-3), E-ATX

SKU: Z890 AI TOP Categorie:
PCI

0
Serial-or-Paralel

Yes/No
Video-Connection

HDMI
Wi-Fi

Yes
USB3

4-8
Onboard-CPU

No
Product colour

Black
RAID support

Yes
Component for

PC
Thunderbolt ports quantity

2
Memory channels

Dual-channel
Country of origin

Taiwan
Processor manufacturer

Intel
Ethernet LAN

Yes
HDMI ports quantity

1
HDMI version

2.1
Top Wi-Fi standard

Wi-Fi 7 (802.11be)
WLAN controller model

Intel Wi-Fi 7 BE200
Headphone outputs

1
Width

305 mm
Bluetooth version

5.4
USB 2.0 ports quantity

0
Products per shipping (inner) case

1 pc(s)
Batteries included

Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

6
Line-in

Yes
PCI Express x16 (Gen 4.x) slots

1
Supported storage drive types

HDD & SSD
Package width

400 mm
Ethernet LAN (RJ-45) ports

2
HDCP

Yes
Screws included

Yes
DisplayPort version

2.1
Package height

430 mm
DisplayPorts quantity

1
VGA (D-Sub) ports quantity

0
Maximum resolution

7680 x 4320 pixels
Parallel processing technology support

Not supported
DVI-D ports quantity

0
DirectX version

12.0
Model Chipset

Z890
Gaming

Nu
Format

E-ATX
Soclu Procesor

Socket 1851
Tip Memorie:

DDR5
Numar sloturi memorie

4
Memorie maxima

256 GB
Tip slot interfata grafica

N/A
Chipset audio integrat

ESS
Canale audio

2.0
Wireless

Da
BLUETOOTH

Nu
HDMI

Da
Thunderbolt

Da
Sloturi M.2

4
RJ-45 LAN

2
Number of memory slots

4
Memory slots type

DIMM
Unbuffered memory

Yes
Supported storage drive interfaces

M.2, SATA III
USB 2.0 connectors

2
USB 3.2 Gen 2 (3.1 Gen 2) connectors

0
Front panel audio connector

Yes
ATX Power connector (24-pin)

Yes
CPU fan connector

Yes
EPS power connector (8-pin)

Yes
BIOS type

UEFI AMI
BIOS memory size

256 Mbit
Clear CMOS jumper

Yes
Processor socket

LGA 1851 (Socket V1)
Supported processor sockets

LGA 1851
Supported memory types

DDR5-SDRAM
Maximum internal memory

256 GB
Maximum internal memory per slot

64 GB
RAID levels

0, 1, 5, 10
Front panel connector

Yes
Number of CPU fan connectors

2
Number of EPS power connectors (8-pin)

2
TPM connector

Yes
RGB LED pin header

Yes
Number of RGB LED pin headers

4
WiFi-AP antenna jack

2
Motherboard chipset family

Intel
PC health monitoring

Fan, Temperature, Voltage, Water cooling
Power source type

ATX
Windows operating systems supported

Windows 11 x64
1st M.2 largest key size

25110
1st M.2 highest PCI Express generation

5.0
2nd M.2 highest PCI Express generation

4.0
3rd M.2 largest key size

22110
3rd M.2 highest PCI Express generation

4.0
ACPI version

5.0
Desktop Management Interface (DMI) version

2.7
System Management BIOS (SMBIOS) version

2.7
Battery weight

3 g
Lithium weight per battery

0.07 g
Number of battery cells

1
Battery technology

Lithium-Manganese Dioxide (LiMnO2)
Battery type

CR2032
Height

35 mm
Antenna included

Yes
Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software
12V power connector

Yes
ECC сompatibility

Non-ECC
USB 3.2 Gen 1 (3.1 Gen 1) connectors

2
Compatible processor series

Intel Core Ultra (Series 2)
Thunderbolt headers

1
Motherboard chipset

Intel Z890
Number of M.2 (M) slots

4
Number of chassis fan connectors

6
Number of SATA III connectors

8
PCI Express x16 (Gen 5.x) slots

2
4th M.2 highest PCI Express generation

4.0
Number of water pump connectors

3
4th M.2 largest key size

22110
Number of HDDs supported

8
2nd M.2 largest key size

25110
Motherboard form factor

Extended ATX
Package depth

335 mm
Ethernet interface type

10 Gigabit Ethernet
LAN controller

Marvell AQtion AQC113C
USB 3.2 Gen 2x2 connectors

2
Supported memory clock speeds

9500 MHz
Number of storage drives supported

12
Audio output channels

2.0 channels
Audio Chip

ESS ES9260
Number of temperature sensor headers

2
PCI-Ex1

0
PCI-Ex16

3
RAM-Slots

4
USB Type-C

N/A
MB-Socket

LGA1851
Package weight

4.1 kg
MB-Format

EATX
Number of noise detection headers

1
Weight

3.53 kg
Depth

28.5 mm
Producator

GIGABYTE
Garantie

36
