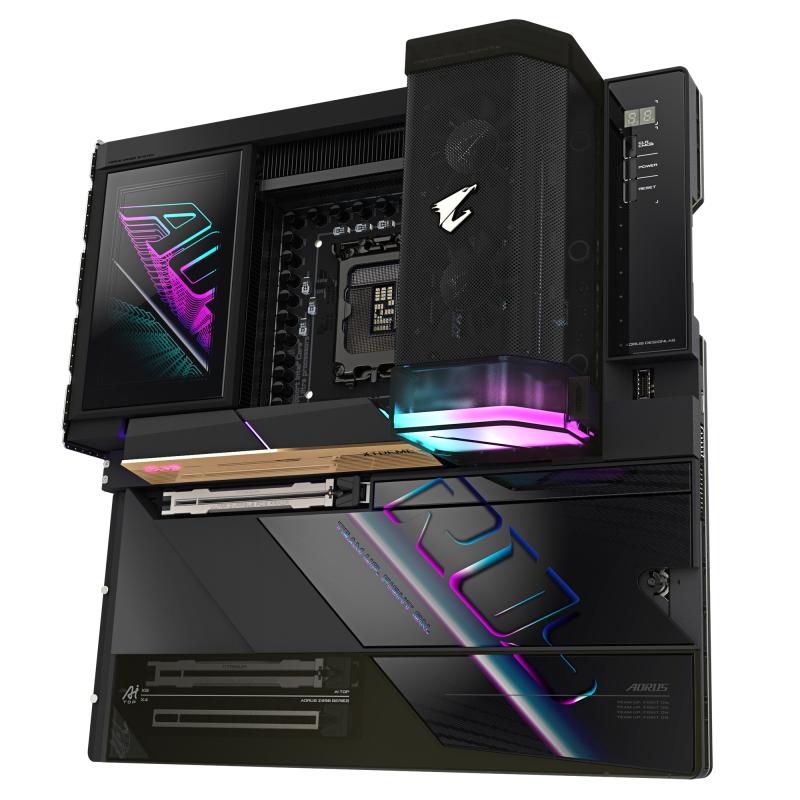

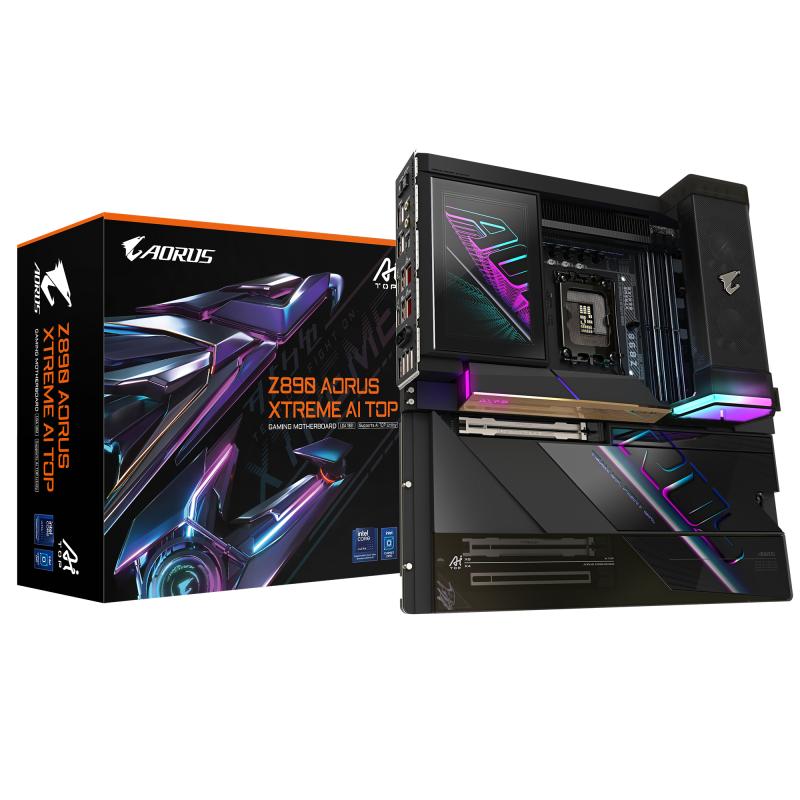

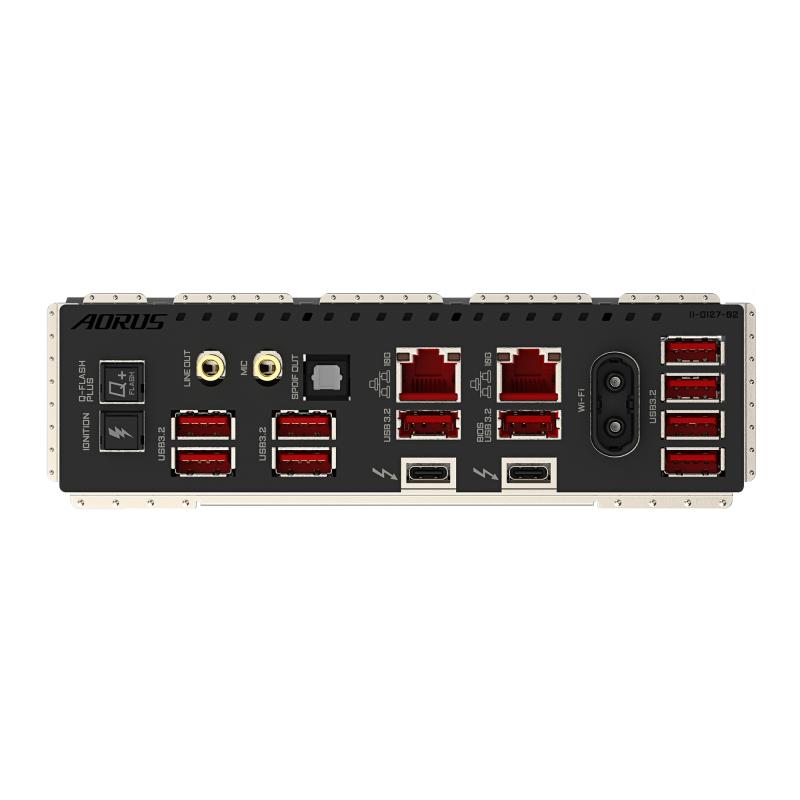

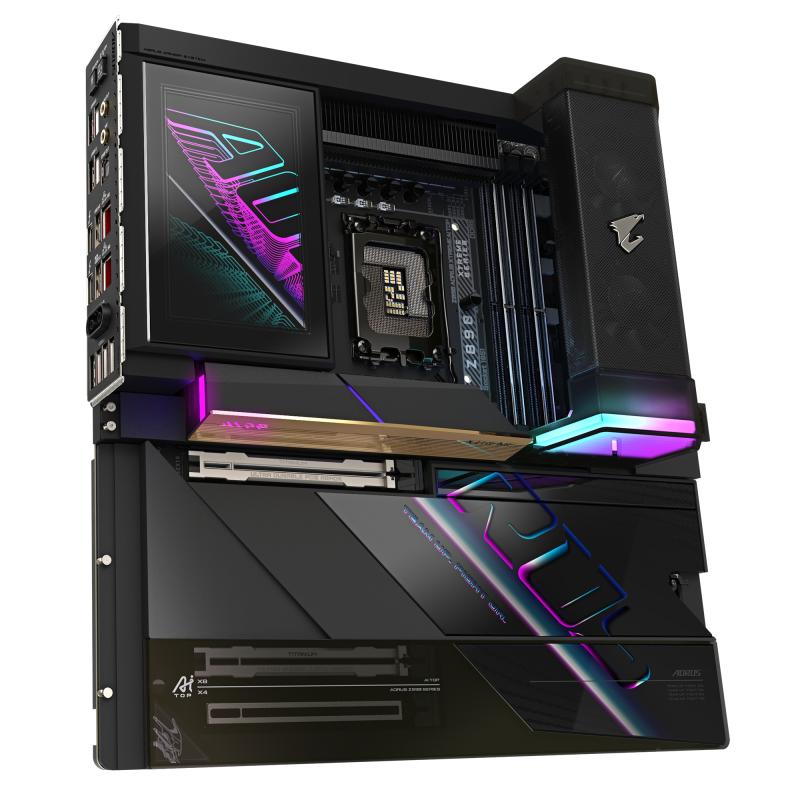

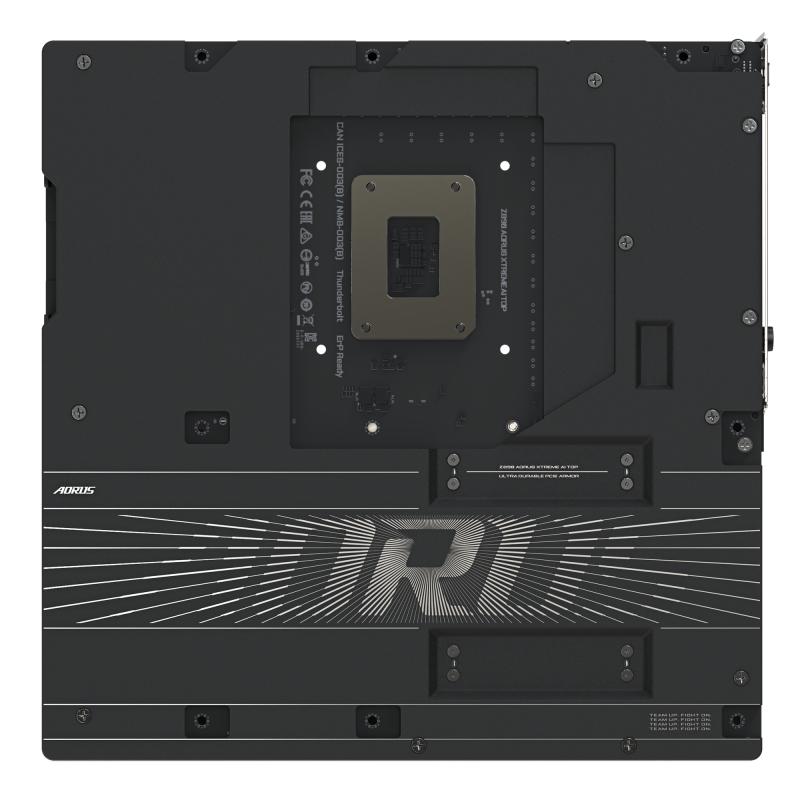

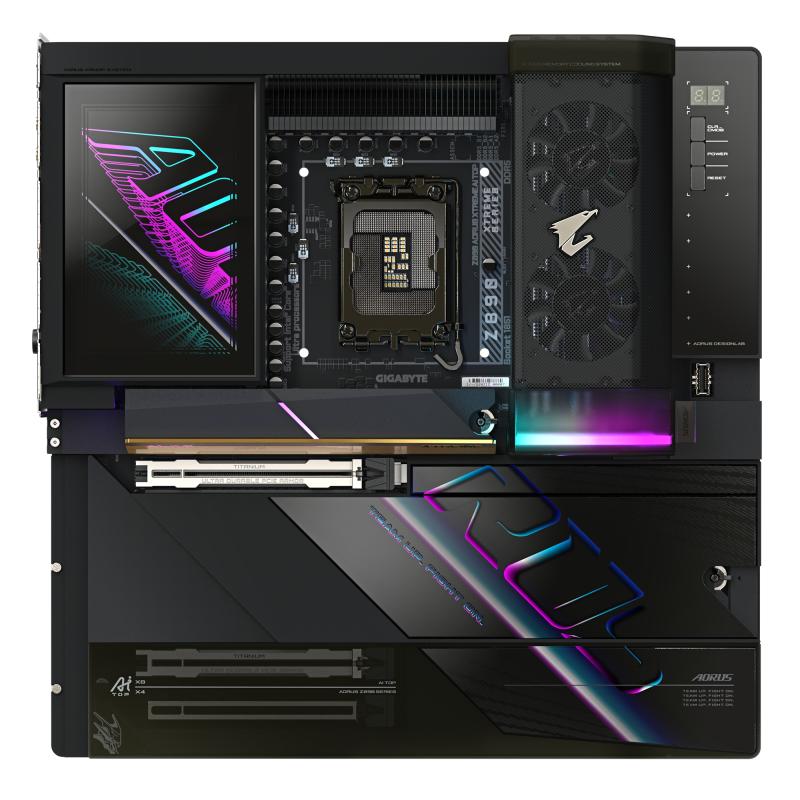

Placa de Baza GIGABYTE Z890 AORUS XTREME AI TOP LGA
Placa de Baza GIGABYTE Z890 AORUS XTREME AI TOP LGA - imagine 3
Placa de Baza GIGABYTE Z890 AORUS XTREME AI TOP LGA - imagine 4
Placa de Baza GIGABYTE Z890 AORUS XTREME AI TOP LGA - imagine 5
Placa de Baza GIGABYTE Z890 AORUS XTREME AI TOP LGA - imagine 6
Placa de Baza GIGABYTE Z890 AORUS XTREME AI TOP LGA - imagine 7
Placa de Baza GIGABYTE Z890 AORUS XTREME AI TOP LGA - imagine 8

Placa de Baza GIGABYTE Z890 AORUS XTREME AI TOP LGA

SKU: Z890 A XTREME AI TOP
Producator: Gigabyte
Disponibilitate:

Stoc epuizat
Add to wishlist
Compare

8.218,98lei

Stoc epuizat

Placa de Baza GIGABYTE Z890 AORUS XTREME AI TOP LGA 1851, 4x DDR5, 3x Intel Thnderbolt, 2x PCIE 5.0 x16 1x PCIE 4.0 x16, 4x M.2, 4x SATA 6GB/s, E-ATX

SKU: Z890 A XTREME AI TOP Categorie:
PCI

0
Serial-or-Paralel

No/No
Video-Connection

HDMI/DP
Wi-Fi

Yes
USB3

4-8
Onboard-CPU

No
Product colour

Black
RAID support

Yes
Component for

PC
Thunderbolt ports quantity

2
Memory channels

Dual-channel
Country of origin

Taiwan
Processor manufacturer

Intel
Ethernet LAN

Yes
Top Wi-Fi standard

Wi-Fi 7 (802.11be)
WLAN controller model

Intel Wi-Fi 7 BE200
Headphone outputs

1
Microphone in

Yes
Bluetooth version

5.4
USB 2.0 ports quantity

0
Products per shipping (inner) case

1 pc(s)
Batteries included

Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

0
Weight

5.03 kg
PCI Express x16 (Gen 4.x) slots

1
Supported storage drive types

HDD & SSD
S/PDIF out port

Yes
Ethernet LAN (RJ-45) ports

2
HDCP

Yes
Screws included

Yes
Package weight

6.7 kg
Package height

140 mm
Package depth

370 mm
VGA (D-Sub) ports quantity

0
HDMI ports quantity

0
Maximum resolution

7680 x 4320 pixels
Parallel processing technology support

Not supported
DVI-D ports quantity

0
DirectX version

12.0
Model Chipset

Z890
Gaming

Da
Format

E-ATX
Soclu Procesor

Socket 1851
Tip Memorie:

DDR5
Numar sloturi memorie

4
Memorie maxima

256 GB
Tip slot interfata grafica

N/A
Chipset audio integrat

ESS
Canale audio

2.0
Wireless

Da
BLUETOOTH

Nu
HDMI

Nu
Thunderbolt

Nu
Sloturi M.2

4
RJ-45 LAN

2
Number of memory slots

4
Memory slots type

DIMM
Unbuffered memory

Yes
Supported storage drive interfaces

M.2, SATA III
USB 2.0 connectors

2
USB 3.2 Gen 1 (3.1 Gen 1) connectors

1
Number of SATA III connectors

4
ATX Power connector (24-pin)

Yes
CPU fan connector

Yes
EPS power connector (8-pin)

Yes
BIOS type

UEFI AMI
BIOS memory size

256 Mbit
Clear CMOS jumper

Yes
Processor socket

LGA 1851 (Socket V1)
Supported processor sockets

LGA 1851
Supported memory types

DDR5-SDRAM
Maximum internal memory

256 GB
ECC сompatibility

ECC & Non-ECC
Maximum internal memory per slot

64 GB
Number of HDDs supported

4
RAID levels

0, 1, 5, 10
Front panel connector

Yes
Number of CPU fan connectors

2
Number of EPS power connectors (8-pin)

2
Number of water pump connectors

2
RGB LED pin header

Yes
Number of RGB LED pin headers

4
WiFi-AP antenna jack

2
Motherboard chipset family

Intel
PC health monitoring

Fan, Temperature, Voltage, Water cooling
Windows operating systems supported

Windows 11 x64
1st M.2 largest key size

25110
1st M.2 highest PCI Express generation

5.0
2nd M.2 highest PCI Express generation

4.0
3rd M.2 largest key size

22110
3rd M.2 highest PCI Express generation

4.0
ACPI version

5.0
Desktop Management Interface (DMI) version

2.7
System Management BIOS (SMBIOS) version

2.7
Battery weight

3 g
Lithium weight per battery

0.07 g
Number of battery cells

1
Battery technology

Lithium-Manganese Dioxide (LiMnO2)
Battery type

CR2032
Height

35 mm
Antenna included

Yes
Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software
Clear CMOS button

Yes
Compatible processor series

Intel Core Ultra (Series 2)
Number of storage drives supported

8
Thunderbolt headers

1
Motherboard chipset

Intel Z890
Number of M.2 (M) slots

4
PCI Express x16 (Gen 5.x) slots

2
Number of chassis fan connectors

3
4th M.2 highest PCI Express generation

4.0
Maximum internal memory supported by processor

256 GB
4th M.2 largest key size

22110
Width

304.8 mm
2nd M.2 largest key size

25110
Motherboard form factor

Extended ATX
Ethernet interface type

10 Gigabit Ethernet
LAN controller

Marvell AQtion AQC113C
USB 3.2 Gen 2x2 connectors

2
Depth

305 mm
Supported memory clock speeds

9500 MHz
Audio output channels

2.0 channels
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

10
Number of temperature sensor headers

2
PCI-Ex1

0
PCI-Ex16

3
RAM-Slots

4
USB Type-C

N/A
MB-Socket

LGA1851
Package width

386 mm
MB-Format

EATX
Number of noise detection headers

1
Audio Chip

ESS ES9280AC + ESS ES9080
Producator

GIGABYTE
Garantie

36
