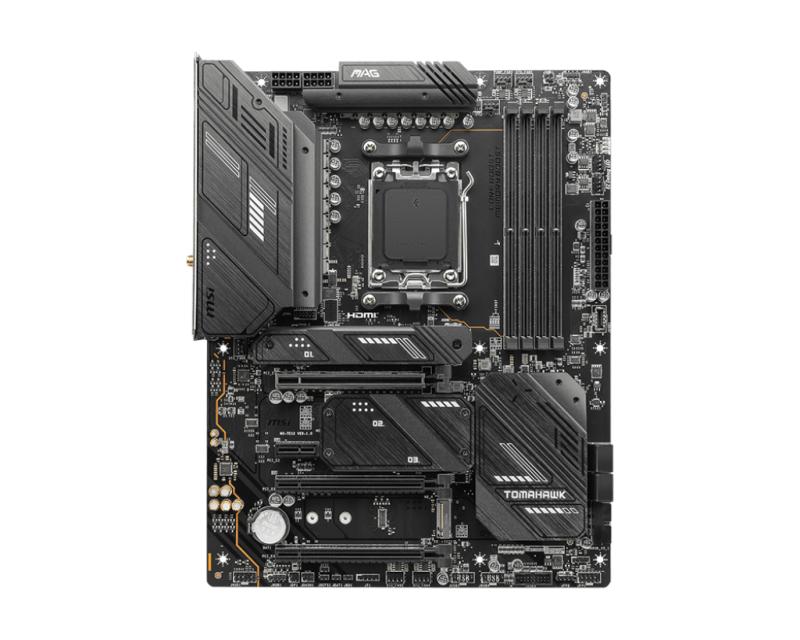

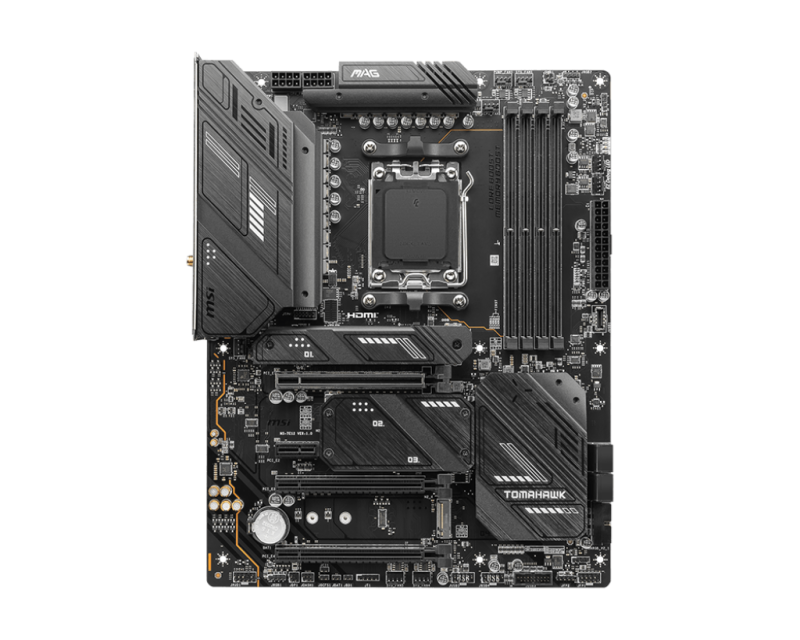

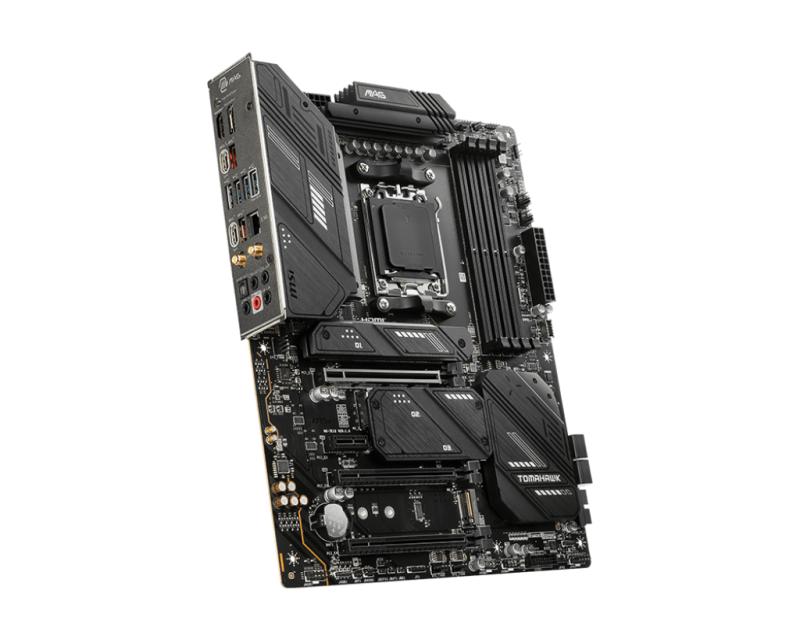

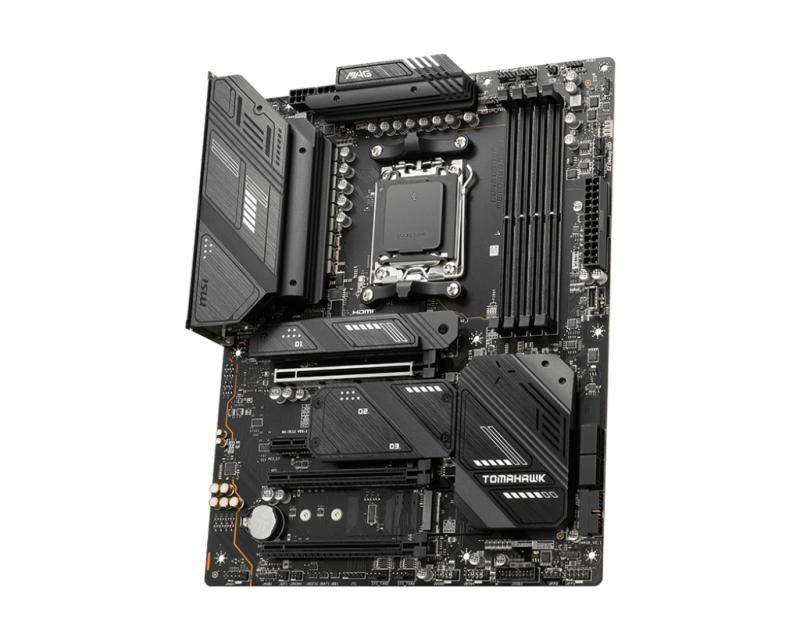

Placa de baza MSI MAG X670E TOMAHAWK WIFI AM5
Placa de baza MSI MAG X670E TOMAHAWK WIFI AM5 - imagine 3
Placa de baza MSI MAG X670E TOMAHAWK WIFI AM5 - imagine 4
Placa de baza MSI MAG X670E TOMAHAWK WIFI AM5 - imagine 5
Placa de baza MSI MAG X670E TOMAHAWK WIFI AM5 - imagine 6
Placa de baza MSI MAG X670E TOMAHAWK WIFI AM5 - imagine 7
Placa de baza MSI MAG X670E TOMAHAWK WIFI AM5 - imagine 8
Placa de baza MSI MAG X670E TOMAHAWK WIFI AM5 - imagine 9

Placa de baza MSI MAG X670E TOMAHAWK WIFI AM5

SKU: MAG X670E TOMAHAWK WIFI
Producator: Msi
Disponibilitate:

Stoc epuizat
Add to wishlist
Compare

1.753,99lei

Stoc epuizat

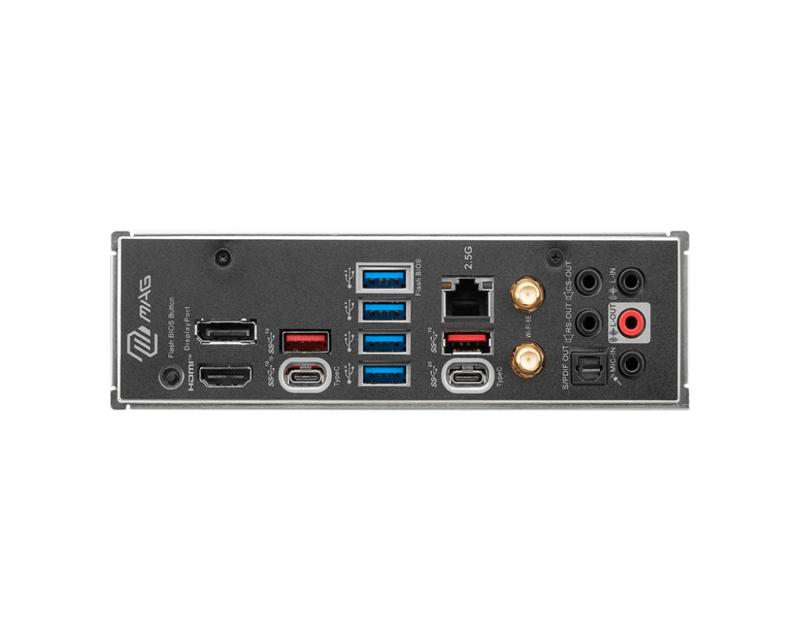

Placa de baza MSI MAG X670E TOMAHAWK WIFI AM5, 4x DDR5, 3x PCIE x16 1x PCIE x1, 1x HDMI 1x DP 1x Type-C DP, 4x M.2, 4x SATA 6GB/s, ATX

SKU: MAG X670E TOMAHAWK WIFI Categorie:
PCI

0
Serial-or-Paralel

No/No
Video-Connection

HDMI/DP
Wi-Fi

Yes
Onboard-CPU

No
Product colour

Black
RAID support

Yes
Component for

PC
Windows operating systems supported

Windows 10, Windows 11
DisplayPort version

1.4
Memory channels

Dual-channel
Top Wi-Fi standard

Wi-Fi 6E (802.11ax)
Ethernet LAN

Yes
HDMI ports quantity

1
Ethernet LAN (RJ-45) ports

1
HDMI version

2.1
Maximum internal memory

128 GB
Bluetooth version

5.3
Processor manufacturer

AMD
Microphone in

Yes
USB 3.2 Gen 2x2 Type-C ports quantity

1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

2
USB 2.0 ports quantity

4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4
Audio output channels

7.1 channels
PCI Express x1 (Gen 3.x) slots

1
PCI Express x16 (Gen 5.x) slots

1
Audio Chip

Realtek ALC1200
S/PDIF out port

Yes
PCI Express x16 (Gen 4.x) slots

2
DisplayPorts quantity

1
VGA (D-Sub) ports quantity

0
DVI-D ports quantity

0
Model Chipset

X670E
Gaming

Nu
Format

ATX
Soclu Procesor

Socket AM5
Tip Memorie:

DDR5
Numar sloturi memorie

4
Memorie maxima

128 GB
Tip slot interfata grafica

PCIe 5.0 x16
Chipset audio integrat

Realtek
Canale audio

7.1
Wireless

Da
BLUETOOTH

Da
USB Type-C

Da
HDMI

Da
Thunderbolt

Nu
Sloturi M.2

4
RJ-45 LAN

1
Number of memory slots

4
Number of SATA III connectors

4
Number of SATA II connectors

0
Number of SATA connectors

0
Front panel audio connector

Yes
ATX Power connector (24-pin)

Yes
CPU fan connector

Yes
Motherboard chipset family

AMD
Supported memory types

DDR5-SDRAM
USB 3.2 Gen 2 (3.1 Gen 2) connectors

1
Front panel connector

Yes
TPM connector

Yes
RGB LED pin header

Yes
Ethernet interface type

2.5 Gigabit Ethernet
Motherboard form factor

ATX
Power source type

ATX
Maximum number of SMP processors

1
ECC сompatibility

Non-ECC
Number of M.2 (M) slots

4
RAID levels

0, 1, 10
Chassis intrusion connector

Yes
Processor socket

Socket AM5
Supported processor sockets

Socket AM5
Motherboard chipset

AMD X670
USB 2.0 connectors

4
USB 3.2 Gen 1 (3.1 Gen 1) connectors

4
LAN controller

Realtek RTL8125-BG
Width

243.8 mm
Depth

304.8 mm
Compatible processor series

AMD Ryzen™ 7
Supported storage drive interfaces

M.2, SATA
AMD Opteron series

7000
Supported memory clock speeds

4800,5000,5200,5400,5600,5800,6000,6200,6400,6600 MHz
Producator

MSI
Garantie

36
