Stoc epuizat
344,99lei
Stoc epuizat

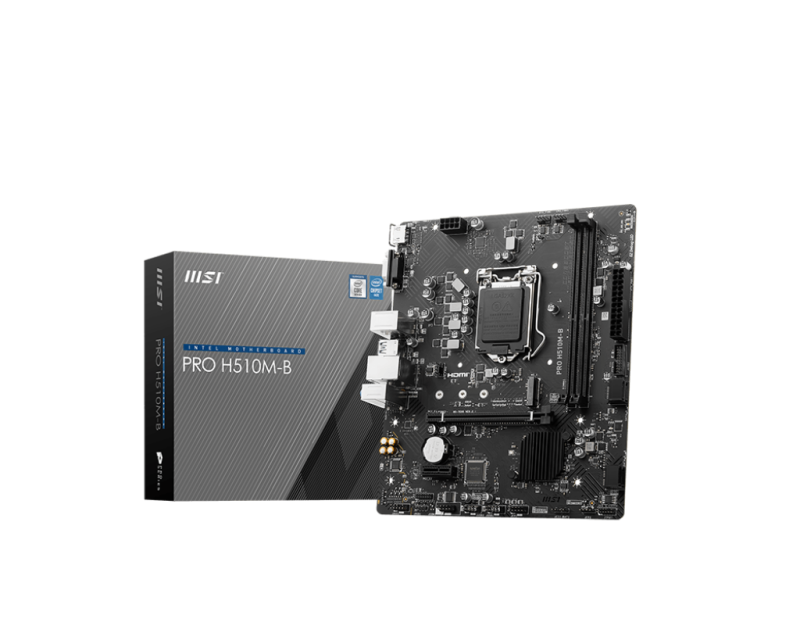

Placa de baza MSI PRO H510M-B 2x DDR4, LGA 1200 1x HDMI™ Support HDMI™ 1.4, maximum resolution of 4K 30Hz* 1x VGA Support VGA, maximum resolution of 2048×1536 50Hz, 1920×1200 60Hz 1x PCI-E x16 slot 1x PCI-E x1 slot https://www.msi.com/Motherboard/PRO-H510M-B/Specification
| PCI | 0 |
|---|---|
| Serial-or-Paralel | Yes/No |
| Video-Connection | HDMI/DP |
| Onboard-CPU | No |
| Component for | PC |
| Ethernet interface type | Gigabit Ethernet |
| Memory channels | Dual-channel |
| Processor manufacturer | Intel |
| Maximum internal memory | 64 GB |
| Ethernet LAN | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 1.4 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Depth | 236 mm |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 2.0 ports quantity | 4 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Audio output channels | 7.1 channels |
| PCI Express x1 (Gen 3.x) slots | 1 |
| Line-in | Yes |
| Audio Chip | Realtek ALC897 |
| Number of memory slots | 2 |
| Supported storage drive types | HDD & SSD |
| Supported memory types | DDR4-SDRAM |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 0 |
| Model Chipset | H510 |
| Gaming | Nu |
| Format | Micro-ATX (mATX) |
| Soclu Procesor | Socket 1200 |
| Tip Memorie: | DDR4 |
| Numar sloturi memorie | 2 |
| Memorie maxima | 64 GB |
| Tip slot interfata grafica | PCIe 3.0 x16 |
| Chipset audio integrat | Realtek |
| Canale audio | 7.1 |
| Wireless | N/A |
| BLUETOOTH | Nu |
| USB Type-C | Da |
| HDMI | Da |
| Thunderbolt | Nu |
| Sloturi M.2 | N/A |
| RJ-45 LAN | 1 |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Front panel audio connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| PS/2 ports quantity | 1 |
| Motherboard form factor | micro ATX |
| Number of HDDs supported | 4 |
| Front panel connector | Yes |
| TPM connector | Yes |
| RGB LED pin header | Yes |
| Motherboard chipset family | Intel |
| ECC сompatibility | Non-ECC |
| Number of COM connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Chassis intrusion connector | Yes |
| LAN controller | Realtek 8111H |
| USB 2.0 connectors | 4 |
| Processor socket | LGA 1200 (Socket H5) |
| Number of SATA connectors | 4 |
| Motherboard chipset | Intel H470 |
| Supported memory clock speeds | 2133,2400,2666,2933 MHz |
| Width | 202 mm |
| Producator | MSI |
| Garantie | 36 |
Nu există recenzii încă.
