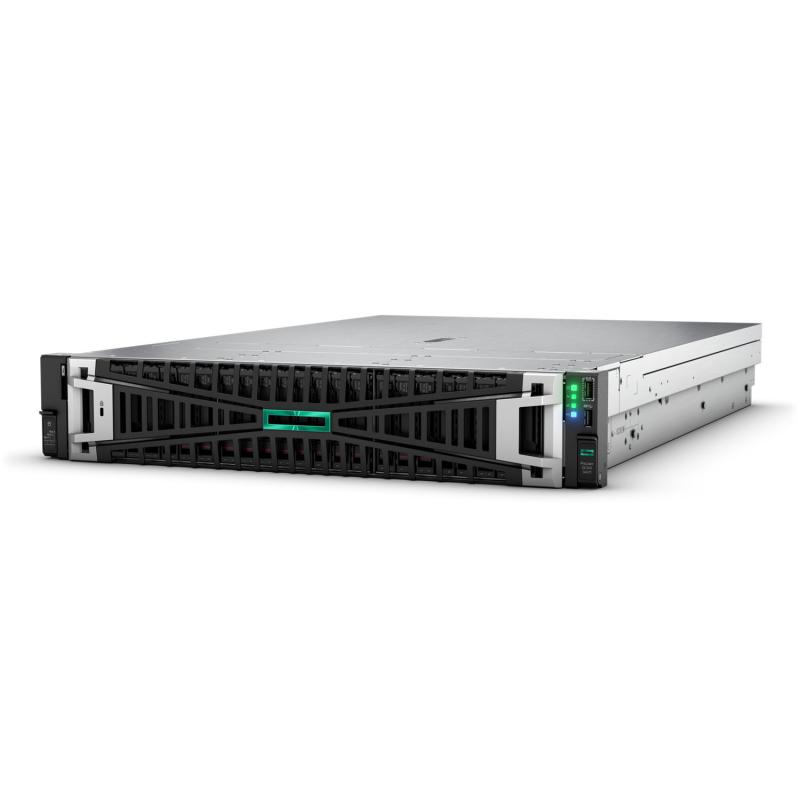

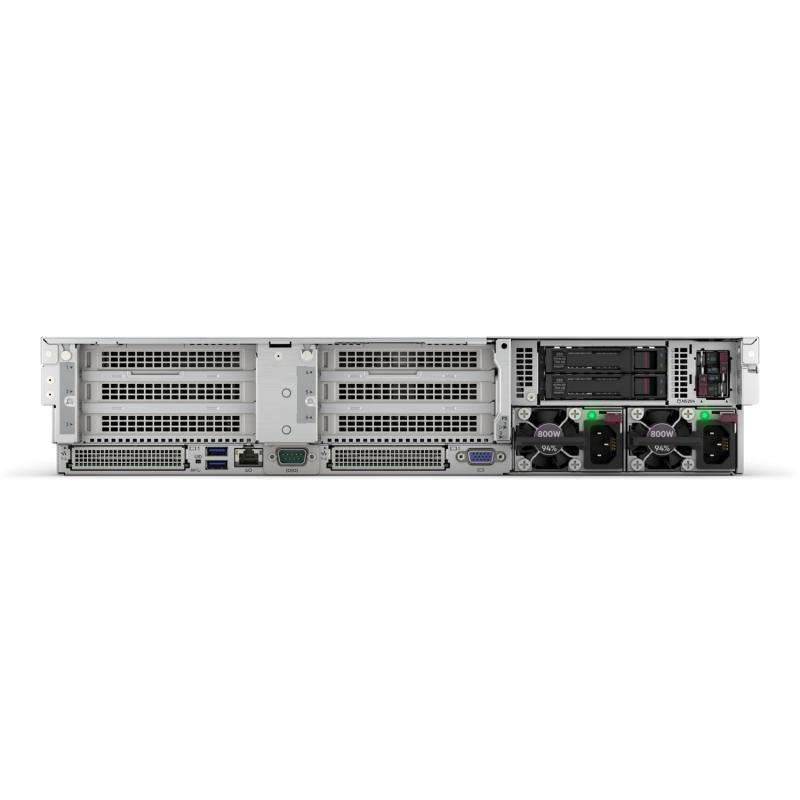

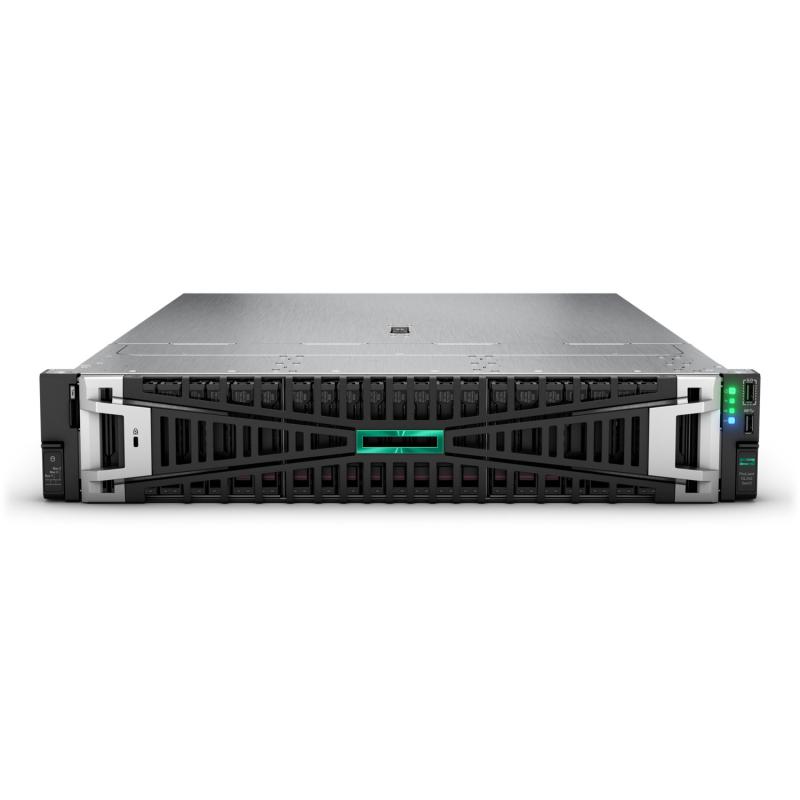

HPE ProLiant DL345 Gen11 9124 3.0GHz 16c 64GB-R 8LFF MR416i-p
HPE ProLiant DL345 Gen11 9124 3.0GHz 16c 64GB-R 8LFF MR416i-p - imagine 3
HPE ProLiant DL345 Gen11 9124 3.0GHz 16c 64GB-R 8LFF MR416i-p - imagine 4
HPE ProLiant DL345 Gen11 9124 3.0GHz 16c 64GB-R 8LFF MR416i-p - imagine 5

HPE ProLiant DL345 Gen11 9124 3.0GHz 16c 64GB-R 8LFF MR416i-p

SKU: P77248-425
Producator: Hpe
Disponibilitate:

Stoc epuizat
Add to wishlist
Compare

32.403,99lei

Stoc epuizat

Lifecycle

  • Obsolete Date 31-10-2026

Specifications

  • Warranty 3/3/3: Server Warranty includes three years of parts, three years of labor, and three years of on-site support coverage. Additional information regarding worldwide limited warranty and technical support is available at: https://support.hpe.com/hpsc/wc/public/home. Additional HPE support and service coverage for your product can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, refer to the HPE website at https://www.hpe.com/support.
  • Power supply type 2x HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit
  • Infrastructure management HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download), HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, and HPE OneView Advanced (require licenses), HPE Compute Ops Management (subscription included)
  • Expansion slots 8 maximum, for detailed descriptions refer to the QuickSpecs
  • Processor name AMD EPYC™ 9124 (16 core, 3.00 GHz, 64 MB L3, 200W)
  • Included memory 64 GB (2×32 GB, 4800 MT/s)
  • Included drives 2x HPE 960GB SATA 6G Read Intensive LFF LPC Multi Vendor SSD
  • System fan features 6x Standard Fans
  • Processor number 1 processor included
  • Processor cache 64 MB L3
  • Processor core available 16 core
  • Memory type HPE DDR5 Smart Memory
  • Storage controller HPE MR416i-p Gen11 x16 Lanes 8GB Cache PCI SPDM Plug-in Storage Controller
  • Network controller Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE
  • Form factor 2U Rack
  • Processor speed 3.00 GHz

Quickspecs

Overview

Are you looking for a single-socket scalable server solution to power your virtualized data-intense, large-capacity storage workloads while meeting your energy efficiency target? The HPE ProLiant DL345 Gen11 server is a scalable 2U 1P solution that delivers exceptional compute performance and large capacity storage options at 1P economics. Powered by 4th and 5th Generation AMD EPYC™ Processors with up to 160 cores, increased memory bandwidth (up to 3 TB 6400 MT/s), high-speed PCIe Gen5 I/O and EDSFF storage, up to 20 LFF/ 34 SFF/ 36 EDSFF, and up to four GPUs at the front, this server is a superb single-socket 2U solution for your data-intensive workloads. Enhanced security features with the silicon root of trust from HPE are built into the firmware, creating a digital fingerprint for the AMD Secure Processor to validate safe operation prior to boot. This server provides impressive storage performance and options for data-intensive workloads such as software-defined storage.

What’s new

  • Powered by the 4th and 5th Generation AMD EPYC™ Processors with 5nm technology that supports up to 160 cores at 400W, 384 MB of L3 cache, and 12 DIMMs for DDR5 6400 MT/s memory.
  • 12 DIMM channels per processor for up to 3 TB total DDR5 6400 MT/s memory with increased memory bandwidth and performance, and lower power requirements.
  • Advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 6×16 PCIe Gen5, two OCP 3.0 slots, and up to 36 EDSFF E3.S 1T NVMe.
  • Includes HPE Integrated Lights-Out 6 (iLO 6) server management software that enables you to securely configure, monitor, and update your HPE ProLiant Gen11 servers seamlessly from anywhere.
  • Supports hot-pluggable, high-availability RAID M.2 boot options.
  • Supports mid/rear drive bay options, total of up to 34 SFF / 20 LFF drives.

Features

Advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 6×16 PCIe Gen5 and two OCP slots, improve I/O throughput and reduce latency.

Increase memory bandwidth and performance, and lower power requirements with 12 DIMM channels per processor for up to 3 TB total DDR5 6400 MT/s memory.

Provide real-time operational feedback on server performance plus recommendations for fine-tuning BIOS settings to customize for changing business needs.

Customized Performance for your Workloads: Accelerated, Open, and Efficient

The HPE ProLiant DL345 Gen11 server is an excellent choice for data-intensive workloads such as software-defined storage, video transcoding, and such, and virtualized apps that require large storage capacity, and high I/O and memory bandwidth.

HPE ProLiant Gen11 servers use the silicon root of trust to anchor the firmware of an HPE ASIC, creating an immutable fingerprint for the AMD Secure Processor that must be matched exactly before the server will boot. This helps ensure malicious code is contained, and healthy servers are protected.

HPE ProLiant Gen11 servers continuously protect healthy servers at the edge by providing rapid detection of security-compromised servers, even to the point of not allowing them to boot if it identifies and contains malicious code, with IDevID certificates installed by default.

HPE ProLiant Gen11 servers provide automated recovery from a security event, including restoration of validated firmware, and facilitating recovery of the operating system, application, data connections, and providing a fast path to bring a server back online and into normal operations.

From silicon to software, from factory to cloud, and from generation to generation, HPE ProLiant Gen11 is engineered with a fundamental security approach to defend against increasingly complex threats through an uncompromising commitment to constant security advancements that are built into our DNA.

Intuitive Cloud Operating Experience: Simple, Self-service, and Automated

HPE ProLiant DL345 Gen11 servers are engineered for your hybrid world. The HPE ProLiant Gen11 servers simplify the way you control your business’s compute—from edge to cloud—with a cloud operating experience.

Transform business operations and pivot your team from reactive to proactive with global visibility and insight through a self-service console.

Automate tasks for efficiency in deployment and instant scalability for seamless, simplified support and lifecycle management, reducing tasks and shortening maintenance windows.

These experiences are engineered and built into all HPE ProLiant Gen11 servers, whether purchased as physical servers or consumed as-a-service using HPE GreenLake as your compute and storage demands grow.

Simplify and secure server management from edge to cloud with HPE Compute Ops Management HPE Compute Ops Management is an as-a-service compute management experience that delivers greater simplicity, agility, and speed across your entire compute landscape, globally.

Trusted Security by Design: Uncompromising, Fundamental, and Protected

The HPE ProLiant DL345 Gen11 server is tied into the silicon root of trust and the AMD Secure Processor, a dedicated security processor embedded in the AMD EPYC™ system on a chip (SoC), to manage secure boot, memory encryption, and secure virtualization.

Harness major computer performance. The HPE ProLiant DL345 Gen11 server is powered by the 4th and 5th Generation AMD EPYC™ Processors with 5nm technology that supports up to 160 cores, 400W, and 1150 MB of L3 cache.

Media

HPE next-gen servers with new AMD EPYC™ 9004 Series Processors

Introducing the new AMD EPYC™ 9004 Series Processors with up to 128 cores and the new AMD EPYC™ 9004 Series processors with AMD 3D V-Cache™ technology for HPE ProLiant servers and HPE Cray systems.

How to choose the right HPE ProLiant Gen11 servers with AMD EPYC™ processors for your business

Chris Bradley, Director of HPE Compute Advocacy & Technical Enablement, explains how to choose the right HPE ProLiant Gen11 servers with AMD EPYC™ processors server for your business.

HPE Gen11 servers with new AMD EPYC™ 9005 Series Processors

With a broad range of core counts from 8 to 192 cores per processor. 384 threads, and frequencies up to 5 GHz, the new AMD EPYC™ 9005 Series Processors extend performance and efficiency leadership with HPE ProLiant Gen11 and HPE Cray Gen11 servers.

HPE ProLiant DL345 Gen11 virtual tour animated video

HPE ProLiant DL345 Gen11 powered by 4th and 5th Generation AMD EPYC™ Processors, ranging from 8 to 160 cores per CPU.

Compatible products

Documents
