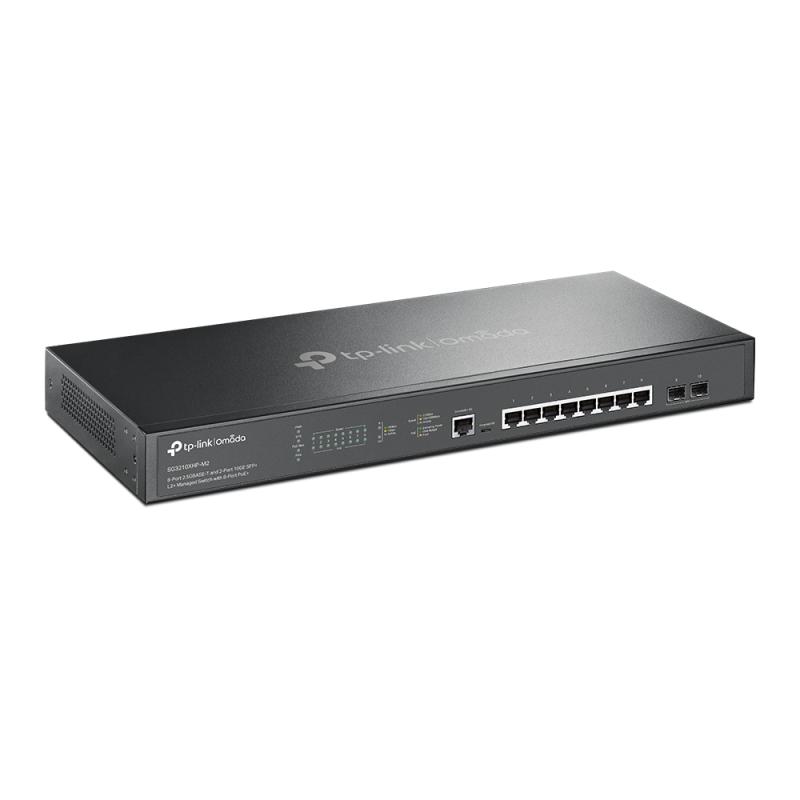

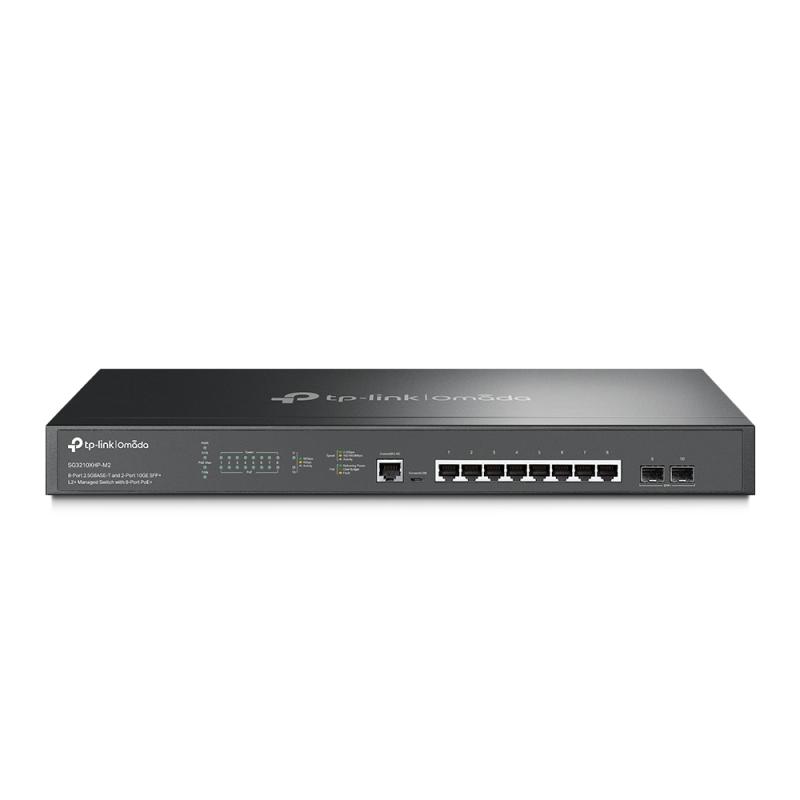

"JetStream™ 8-Port 2.5GBase-T and 2-Port 10GE SFP+ L2+ Managed Switch
"JetStream™ 8-Port 2.5GBase-T and 2-Port 10GE SFP+ L2+ Managed Switch - imagine 3
"JetStream™ 8-Port 2.5GBase-T and 2-Port 10GE SFP+ L2+ Managed Switch - imagine 4
"JetStream™ 8-Port 2.5GBase-T and 2-Port 10GE SFP+ L2+ Managed Switch - imagine 5
"JetStream™ 8-Port 2.5GBase-T and 2-Port 10GE SFP+ L2+ Managed Switch - imagine 6

"JetStream™ 8-Port 2.5GBase-T and 2-Port 10GE SFP+ L2+ Managed Switch

SKU: TL-SG3210XHP-M2
Producator: Tp-link
Disponibilitate:

Stoc epuizat
Add to wishlist
Compare

3.891,99lei

Stoc epuizat

“JetStream™ 8-Port 2.5GBase-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+ PORT: 8× 2.5G PoE+ Ports, 2× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 802.3at/af, 240 W PoE Power, 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with JetStream™ SDN Controller,Static Routing, OAM, DDM, sFlow, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6”

SKU: TL-SG3210XHP-M2 Categorie:
LAN-Port-Type

Gigabit
Management

Managed
PoE

Nu
Storage temperature (T-T)

-40 – 70 °C
Storage relative humidity (H-H)

5 – 90%
Package type

Box
Product colour

Black
Quick start guide

Yes
Operating temperature (T-T)

0 – 45 °C
Password protection

Yes
LED indicators

Yes
Jumbo frames support

Yes
Link aggregation

Yes
Height

44 mm
Power supply included

Yes
Operating relative humidity (H-H)

10 – 90%
Cables included

AC
AC input voltage

100 – 240 V
Power over Ethernet (PoE)

Yes
Number of fans

2 fan(s)
Rack mounting

Yes
VLAN support

Yes
Quality of Service (QoS) support

Yes
Static route

Yes
Web-based management

Yes
System event log

Yes
Switch type

Managed
10G support

Yes
Port mirroring

Yes
Form factor

1U
MAC address filtering

Yes
Depth

180 mm
Access Control List (ACL)

Yes
Width

440 mm
Flow control support

Yes
Ethernet LAN data rates

100,1000,2500 Mbit/s
Rate limiting

Yes
IGMP snooping

Yes
Basic switching RJ-45 Ethernet ports quantity

2.5G Ethernet (100/1000/2500)
Power source

AC
Installed SFP modules quantity

0
Configuring Location Settings (CLI)

Yes
Broadcast storm control

Yes
Spanning tree protocol

Yes
Multicast support

Yes
Jumbo frames

9000
IP routing

Yes
Number of VLANs

4000
MAC address table

16000 entries
SSH/SSL support

Yes
Loop protection

Yes
GARP VLAN Registration Protocol (GVRP)

Yes
Switch layer

L2+
Cloud-managed

Yes
Traffic classification

Yes
ARP inspection

Yes
BPDU filtering/protection

Yes
Power over Ethernet plus (PoE+) ports quantity

8
Power over Ethernet (PoE) power per port

30 W
2.5G Ethernet (copper) ports quantity

8
Power connector

AC-in jack
Packet buffer memory

12 MB
Head-of-line (HOL) blocking

Yes
Static port security

Yes
MIB support

RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
Networking standards

IEEE 802.1D, IEEE 802.1s, IEEE 802.1w
Virtual LAN features

MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Switching capacity

80 Gbit/s
Forwarding rate

59.52 Mpps
Number of static routes

48
Number of IP interfaces

16
DHCP features

DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Security algorithms

HTTPS, SSH, SSH-2, SSL/TLS
IP-MAC-Port binding

Yes
Authentication

MAC-based authentication, Port-based authentication
Authentication type

AAA, TACACS+
Queue scheduling algorithms

SP, WRR+SP, Weighted Round Robin (WRR)
Multicast Listener Discovery (MLD) snooping

Y
Management protocols

SNMPv1/v2c/v3, SNTP
Total Power over Ethernet (PoE) budget

240 W
Power consumption (max)

285.9 W
Heat dissipation

975.54 BTU/h
Porturi RJ 45

5-10
Viteza Transfer

2.5G
Porturi SFP

1-2
Montare in Rack

Nu
SFP module slots quantity

2
Console port

RJ-45/micro-USB
Producator

TP-LINK
Garantie

24
