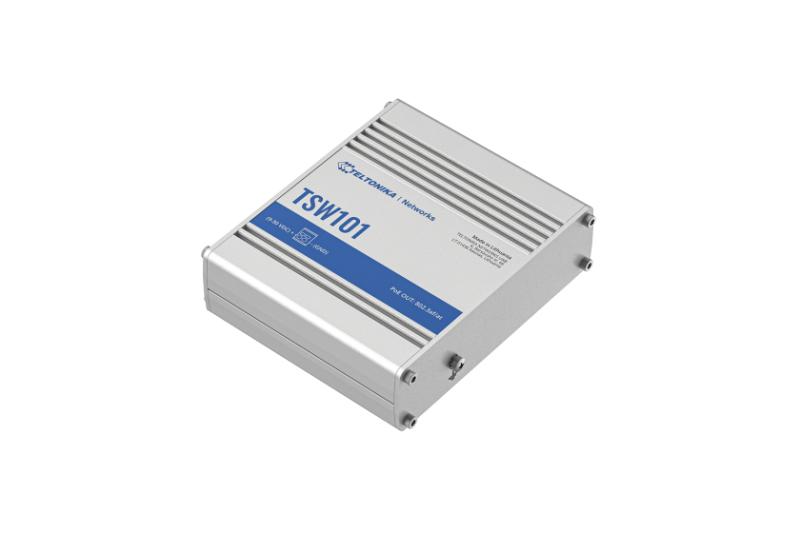

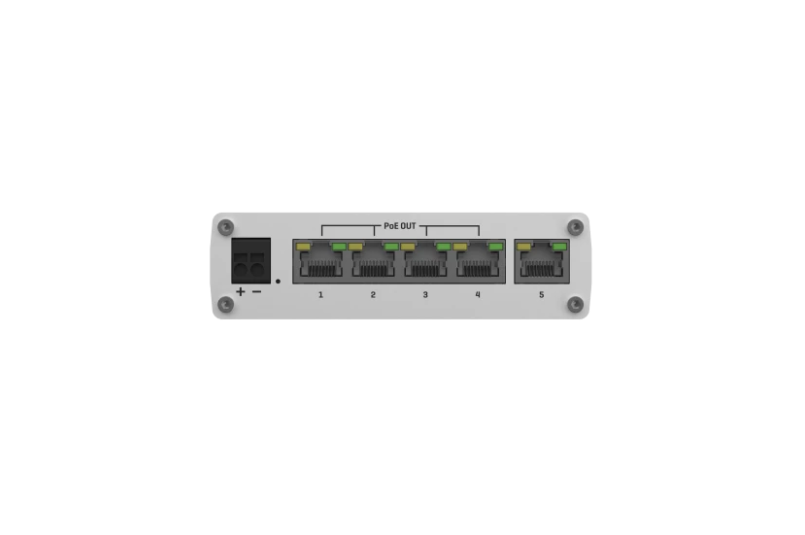

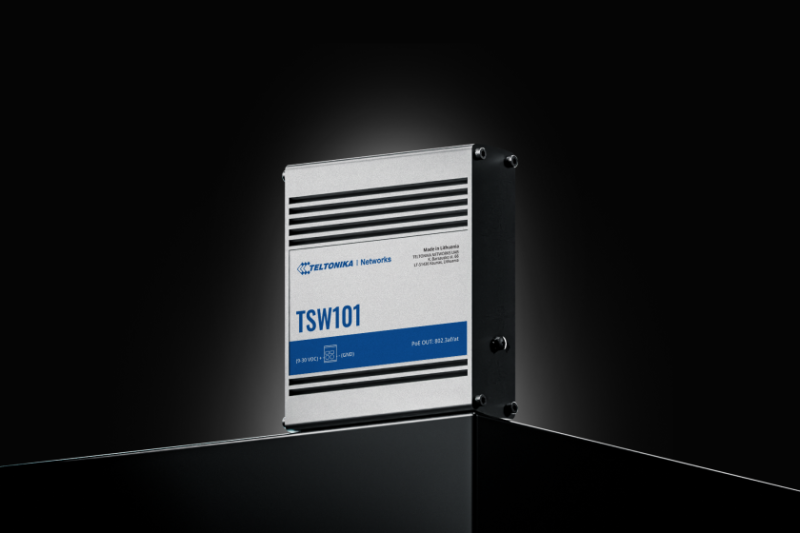

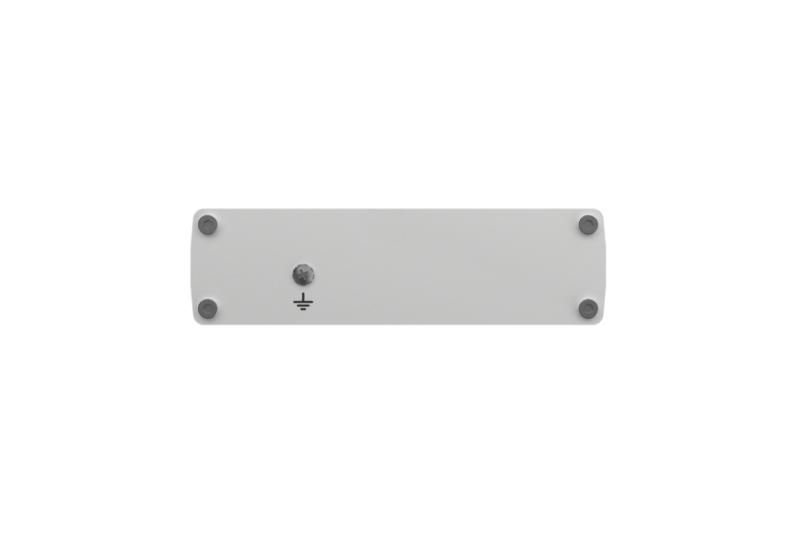

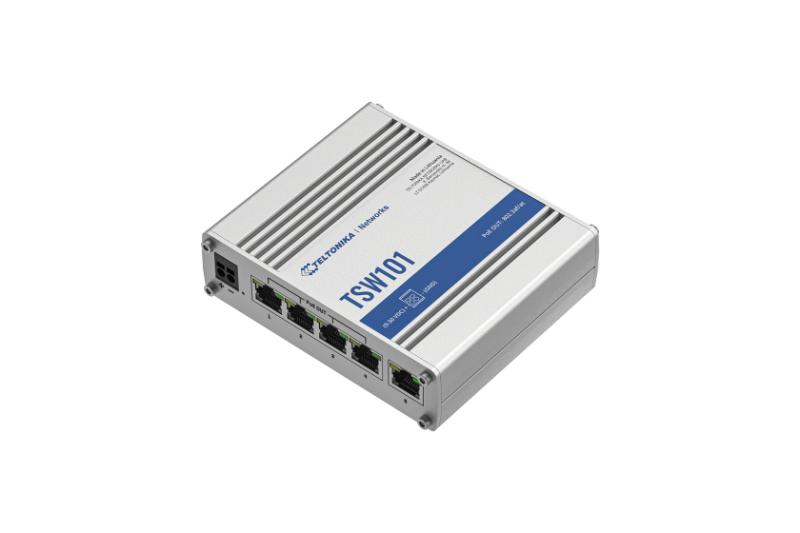

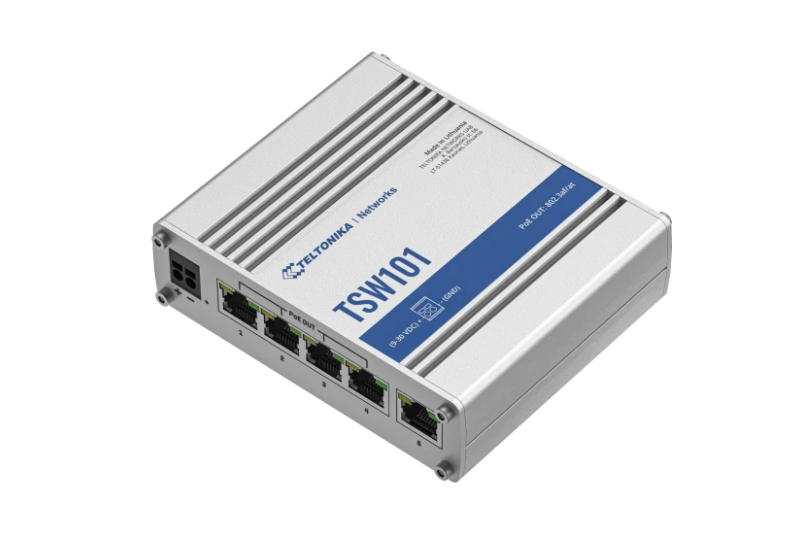

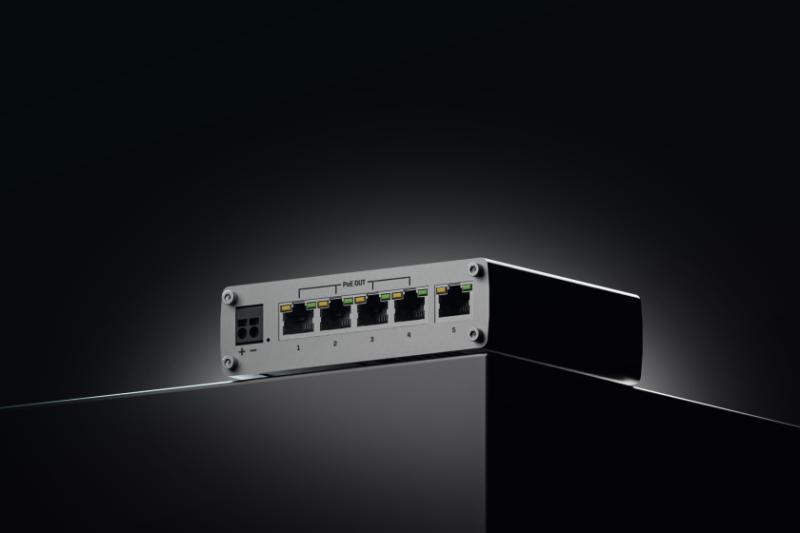

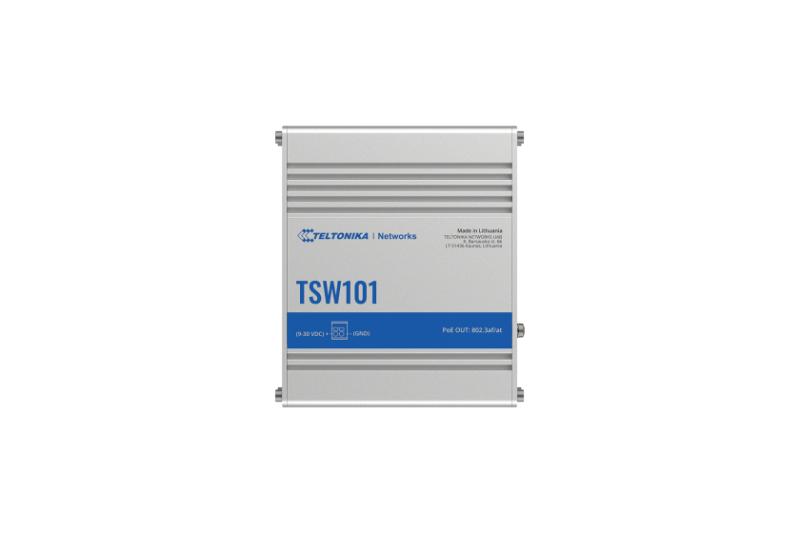

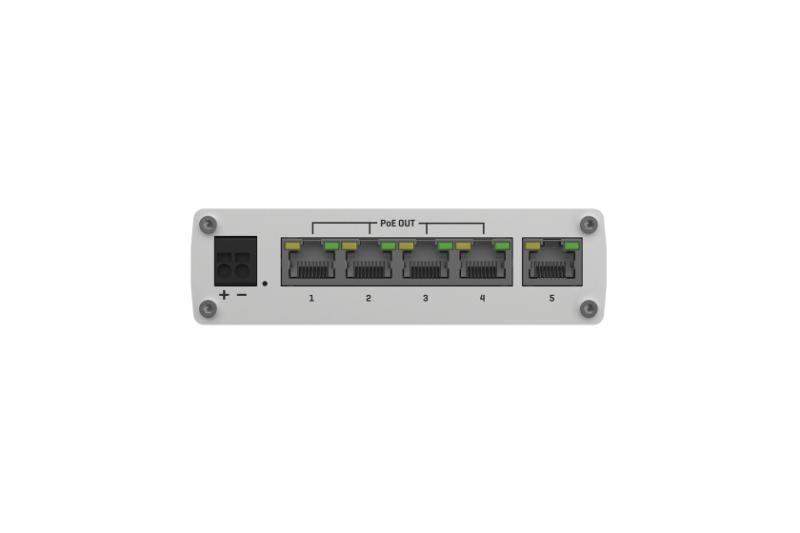

TELTONIKA AUTOMOTIVE 5PORT POE+ SWITCH TSW101, interfata: 5 x ETH
Producator:
Teltonika
Disponibilitate:
Stoc epuizat
903,00lei
Stoc epuizat
TELTONIKA AUTOMOTIVE 5PORT POE+ SWITCH TSW101, interfata: 5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover, Standarde retea: 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az, 802.3ad, Porturi POE: 1-4, Buget POE: 60W, Lungime cablu max: 100m, Latime de banda: 10Gbps, Carcasa aluminiu, Dimensiuni: 115 x 32 x 95 mm, Greutate: 384 g.
| Management | Unmanaged |
|---|---|
| PoE | Da |
| LAN-Port-Type | Gigabit |
| Housing material | Aluminium |
| Depth | 32 mm |
| Jumbo frames support | Yes |
| LED indicators | Power, Status |
| Width | 115 mm |
| Height | 95 mm |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Operating relative humidity (H-H) | 10 – 90% |
| Power over Ethernet (PoE) | Yes |
| Product colour | Metallic |
| Operating temperature (T-T) | -40 – 75 °C |
| Power source | DC |
| Power over Ethernet (PoE) type supported | Passive PoE |
| Auto MDI/MDI-X | Yes |
| Input voltage | 9 – 30 V |
| International Protection (IP) code | IP30 |
| Networking standards | IEEE 802.3, IEEE 802.3az, IEEE 802.3u |
| 10G support | No |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Jumbo frames | 9216 |
| MAC address table | 2000 entries |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 30 W |
| Switching capacity | 10 Gbit/s |
| Power connector | Terminal block (2-pin) |
| Power consumption (typical) | 0.64 W |
| Power consumption (max) | 2.31 W |
| Total Power over Ethernet (PoE) budget | 120 W |
| Weight | 354 g |
| Certification | CE, REACH, RoHS, WEEE TSW101 CE TSW101 UKCA TSW101 FCC TSW101 IC TSW101 CB TSW101 RCM E-Mark |
| Harmonized System (HS) code | 851762 |
| Porturi RJ 45 | 5-10 |
| Viteza Transfer | Gigabit |
| Porturi SFP | N/A |
| Montare in Rack | Nu |
| Producator | TELTONIKA |
| Garantie | 24 |
