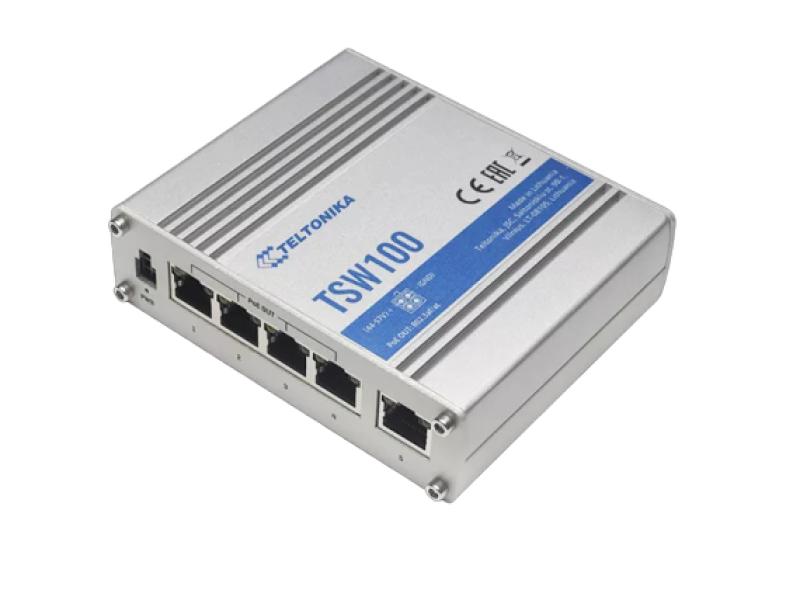

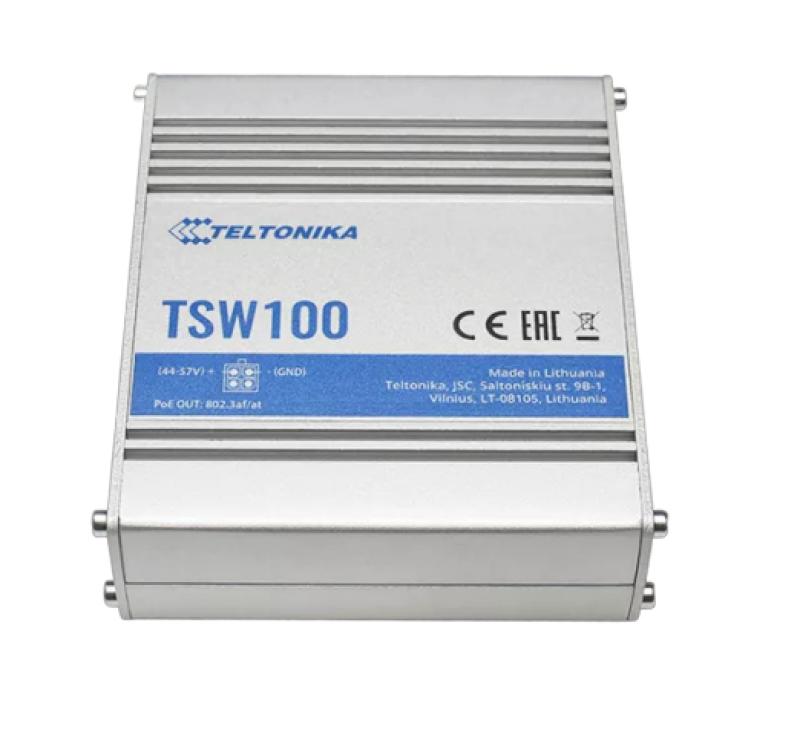

TELTONIKA INDUSTRIAL 5PORT Unmanaged POE+ Switch TSW100, Interfata: 5 x
TELTONIKA INDUSTRIAL 5PORT Unmanaged POE+ Switch TSW100, Interfata: 5 x - imagine 3
TELTONIKA INDUSTRIAL 5PORT Unmanaged POE+ Switch TSW100, Interfata: 5 x - imagine 4
TELTONIKA INDUSTRIAL 5PORT Unmanaged POE+ Switch TSW100, Interfata: 5 x - imagine 5
TELTONIKA INDUSTRIAL 5PORT Unmanaged POE+ Switch TSW100, Interfata: 5 x - imagine 6
TELTONIKA INDUSTRIAL 5PORT Unmanaged POE+ Switch TSW100, Interfata: 5 x - imagine 7
TELTONIKA INDUSTRIAL 5PORT Unmanaged POE+ Switch TSW100, Interfata: 5 x - imagine 8

TELTONIKA INDUSTRIAL 5PORT Unmanaged POE+ Switch TSW100, Interfata: 5 x

SKU: TSW100
Producator: Teltonika
Disponibilitate:

1 în stoc
Add to wishlist
Compare

343,99lei 784,00lei

1 în stoc

TELTONIKA INDUSTRIAL 5PORT Unmanaged POE+ Switch TSW100, Interfata: 5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover, Standarde retea: 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az, 802.3ad, Porturi POE:1-4, POE Budget: 120W, Latime de banda: 10 Gbps, Carcasa aluminiu: Dimensiuni: 115 x 32 x 95 mm, Greutate: 350g, IP30.

SKU: TSW100 Categorie:
Management

Unmanaged
PoE

Da
LAN-Port-Type

Gigabit
Housing material

Aluminium
Height

32 mm
LED indicators

Power, Status
Width

115 mm
Depth

95 mm
Operating relative humidity (H-H)

10 – 90%
Power over Ethernet (PoE)

Yes
Harmonized System (HS) code

85176990
Operating temperature (T-T)

-40 – 75 °C
Auto MDI/MDI-X

Yes
Basic switching RJ-45 Ethernet ports quantity

5
Jumbo frames

9216
MAC address table

2000 entries
Packet buffer memory

0.128 MB
Power over Ethernet (PoE) ports quantity

4
Power over Ethernet (PoE) power per port

30 W
Total Power over Ethernet (PoE) budget

120 W
Networking standards

IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
Product colour

Blue, Metallic
DC input voltage

7 – 58 V
Power consumption (max)

129 W
Porturi RJ 45

5-10
Viteza Transfer

Gigabit
Porturi SFP

N/A
Montare in Rack

Nu
Producator

TELTONIKA
Garantie

24
